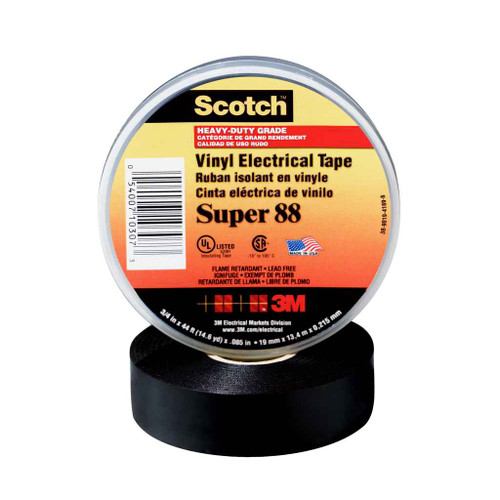

3M Scotch Super 88 Premium Vinyl Electrical Tape 2" x 36 yds 8.5 mil Professional Grade

3M Scotch Super 88 Premium Vinyl Electrical Tape 2" x 36 yds 8.5 mil Professional Grade

Premium-grade all-weather electrical insulation and protection

3M Scotch Super 88 Premium Vinyl Electrical Tape delivers professional-grade electrical insulation and mechanical protection with its durable PVC backing and aggressive rubber-resin adhesive. This 8.5 mil thick tape provides reliable performance in demanding applications with operating temperatures from 0�F to 221�F (-18�C to 105�C), exceeding most commercial-grade specifications. UL Listed and CSA Certified for electrical applications up to 600V, this premium tape offers superior resistance to UV rays, moisture, alkalis, acids, corrosion and varying weather conditions.

Professional Features & Benefits

• Premium 8.5 mil thickness: Provides superior electrical and mechanical protection with enhanced durability for demanding applications.
• 600V voltage rating: Suitable for low and high-voltage bus applications with reliable electrical insulation performance.
• Extended temperature range 0�F to 221�F: Maintains adhesion and flexibility across extreme temperature variations, exceeding commercial specifications.
• UL Listed and CSA Certified: Meets rigorous safety standards for professional electrical installations and maintenance work.
• Aggressive rubber-resin adhesive: Ensures strong, long-lasting bonds to various surfaces including solid dielectric cable insulations.
• UV and weather resistant PVC backing: Withstands outdoor exposure, moisture, chemicals and environmental stresses without degradation.
• RoHS 2011/65/EU Compliant: Meets environmental regulations for safe use in commercial and industrial applications.

Technical Specifications

• 3m Id: 80610833883
• Adhesion To Steel: 2,7 N/cm
• Adhesive Material: Rubber Resin
• Adhesive Type: Rubber
• Agency Approvals: CSA Certified, UL Listed
• Applications: Electrical Maintenance
• Backing Material: Vinyl
• Backing Thickness Metric : 0.22 mm
• Breaking Strength: 20 lb/in
• Case Quantity: 100 Rolls
• Chemical Resistant: RoHS 2011/65/EU Compliant, Yes
• Dielectric Strength: 1150 V/mil
• Dielectric Strength V Mil : 1175 V/mil
• Elongation: 2.50%
• Elongation At Break: 250%
• Family: Scotch� Vinyl Electrical Tape Super 88
• Flame Retardant: RoHS 2011/65/EU Compliant
• High Temperature Rating: 221�F (105�C)
• Insulated: RoHS 2011/65/EU Compliant, Yes
• Insulation Resistance: > 10^6 megohms
• Length Metric : 33 m
• Low Temperature Rating: 0�F (-18�C)
• Maximum Operating Temperature Celsius : 105 Degree Celsius
• Maximum Operating Temperature Fahrenheit : 221 Degree Fahrenheit
• National Stock Number: 5.97001E+12
• Operating Temperature Celsius : Up to 105 Degree Celsius
• Operating Temperature Range Celsius : -18 �C to 105 �C
• Operating Temperature Range Fahrenheit : 0 �F to 220 �F
• Performance Level: Professional Grade
• Product Color: Black
• Product Length: 36 Linear Yard
• Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
• Product Material: PVC
• Product Type: Vinyl Electrical Tapes
• Product Width: 2 Inch
• Rohs 2011 65 Eu Compliant: RoHS 2011/65/EU Compliant, Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Rolls Per Carton: 1
• Rolls Per Case: 12
• Self Extinguishing: RoHS 2011/65/EU Compliant, Yes
• Self Sticking Amalgamating: No, Sunlight Resistant
• Shelf Life: 5 Year
• Solution For: Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing
• Specifications: ASTM D-3005 type 2, Mil-I- 24391C, SS 404 09 75, VDE 0340 TEIL 3-1
• Suitable For High Voltage: No, Sunlight Resistant
• Tape Grade: Premium
• Tape Type: Vinyl
• Tape Width Metric : 50 mm
• Thickness: 8.5 mil
• Thickness Metric : 0.22 mm
• Total Thickness: 0.22 mm
• Ul File Number: E129200
• Uv Resistant: RoHS 2011/65/EU Compliant, Yes
• Voltage Application: Low Voltage
• Voltage Rating: 600 V
• Vulcanizing: No, Sunlight Resistant
• Width Metric : 50 mm

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Construction and Installation
• Electrical Equipment Manufacturing
• Electrical Maintenance and Repair Operations
• Power Distribution Systems
• Wireless Network Infrastructure
• Industrial Equipment Weatherproofing
• Commercial Building Electrical Systems

Why Choose 3M Quality?

3M Scotch Super 88 tape delivers proven reliability with UL Listed and CSA Certified performance, backed by rigorous testing to ASTM D-3005 type 2 and military specifications. The 5-year shelf life and RoHS compliance ensure long-term value and regulatory compliance for professional electrical applications.
