Klein Tools VDV501-824 Scout® Pro 2 Tester with Test-n-Map™ Remote Kit, Adapters, Cables

Klein Tools VDV501-824 Scout® Pro 2 Tester with Test-n-Map™ Remote Kit, Adapters, Cables

(No reviews yet) Write a Review

Model: VDV501-824
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$407.13
$357.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Scout® Pro 2 Tester with Test-n-Map™ Remote Kit, Adapters, Cables

  • Features

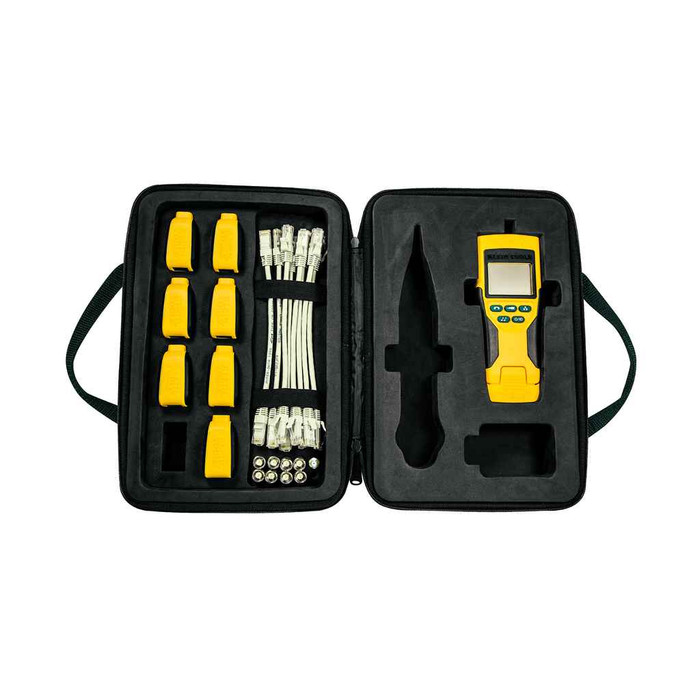

    • Kit includes - 1 Scout® Pro 2 Tester, 1 self-storing Test-n-Map™ Remote, 7 Test-n-Map™ Remotes, 1 coax barrel F adapter, 8 Coax push-on F adapters, 8 RJ45 jumper test cables, 1 carrying case, manual and 9V battery
    • Test for open, short, miswire or split-pair faults
    • The kit also supports up to 19 LanMap™ or CoaxMap™ Location Remotes to identify cable runs (sold separately)
    • Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
    • Carrying Case has custom-designed compartments to hold tester and accessories securely
    • Trace cables, wire pairs and individual conductor wires with the Tone Generator (functionality requires an analog tone tracing probe not included)
    • Other features include - voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
    • Cut testing and identification time in half with 8 Test-n-Map™ Remotes that test, map and ID multiple cable runs in a single step

  • Warnings

    • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
    • Do NOT use on energized circuits.
    • Always wear approved eye protection.


VDV501-824 - spec sheet

Manufacturer Resources

Product Specs

Accessories:
VDV500123, VDV512056, VDV526055
Batteries:
1 x 9V
Cable Identification:
Includes 8; Supports up to 19 remote locators
Cable Type:
RJ11/12, RJ45 and F-connector terminated
Connection Adapter Types:
(8) Coax Push-on F Adapters
Display:
LCD
Item Depth In :
13.25
Item Height In :
4.375
Item Weight Lbs :
3.938
Item Width In :
13
Multiple Style Tone Generator:
Yes (4)
Overall Height:
9" (22.9 cm)
Overall Length:
2" (5.1 cm)
Style Name:
w/8 Smart Remotes
Sub Brand:
Scout Pro
Test Measure Types:
Continuity; Miswire Detection; Open Fault Detection; Short Fault Detection; Split Pairs Detection; Shield Detection
Department:
Electrical
Product Group:
Test & Measurement
Product Subgroup:
Electrical Testers
Product Weight:
3.94 lb (1.8 kg)
Product Type:
Cable Tester Kit

Klein Tools VDV501-824 – Frequently Asked Questions

1) What exactly comes in the Klein VDV501-824 Scout Pro 2 kit?
The VDV501-824 kit ships with one Scout Pro 2 tester, one self-storing Test-n-Map remote plus 7 additional Test-n-Map remotes (8 total), one coax barrel F adapter, 8 coax push-on F adapters, 8 RJ45 jumper test cables, a carrying case with molded compartments, the manual, and a 9V battery. That means you can leave 8 remotes on 8 drops and test, map, and ID them in one pass instead of walking back and forth.
2) Can the Scout Pro 2 test coax and phone lines, or is it Ethernet only?
All three. It tests voice on RJ11/12, data on RJ45, and video on F-connector coax, so one tester covers a structured wiring job end to end. The cable has to be terminated with those connectors, not bare conductors.
3) Will the Klein Scout Pro 2 find a split pair, or just opens and shorts?
Split pairs are included. The tester reports continuity, opens, shorts, miswires, split pairs, and shield detection, which is the full fault set you need to sign off a data drop rather than just proving the cable conducts.
4) Do I need a separate probe to trace cable with the Scout Pro 2?
Yes. The tester has a tone generator with 4 tone styles built in, but tracing requires an analog tone tracing probe, which is not part of the kit. Buy the probe separately if you plan to chase unlabeled runs through walls or a crowded ceiling.
5) How many cable runs can the Scout Pro 2 kit identify at once?
Eight out of the box, using the 8 included Test-n-Map remotes. The tester supports up to 19 remote locators total, so on a larger rack you can add LanMap or CoaxMap Location Remotes (sold separately) and ID up to 19 runs from one end.
6) Is it safe to put the Scout Pro 2 on a live line?
No. Do not use it on energized circuits. It does include a voltage warning that flags when voltage is present on the line so you know to disconnect before testing, but that is a protection feature, not permission to test live.
7) Does the Scout Pro 2 tell me if a shielded cable's shield is actually connected?
It does. Shield detection is one of its test functions, so on STP runs you can confirm the shield is continuous and bonded rather than finding out later when you chase noise on the link.
8) What accessories work with the Klein VDV501-824?
Klein lists VDV500123, VDV512056, and VDV526055 as accessories for the Scout Pro 2 kit. Those are what you add on top of the included remotes and adapters.
9) How big and heavy is the Scout Pro 2 kit in the case?
Packed, the kit weighs 3.94 lb (1.8 kg) and the case measures 13.25 x 13 x 4.375 inches. It is a van-and-tool-bag kit rather than a pocket tester, which is the tradeoff for carrying 8 remotes and the adapter set in one place.
10) What powers the Scout Pro 2, and will it drain the battery if I leave it on?
A single 9V battery runs it, and one is included. Auto power off and a low battery indicator keep it from killing the cell if it gets left switched on in the bag.
