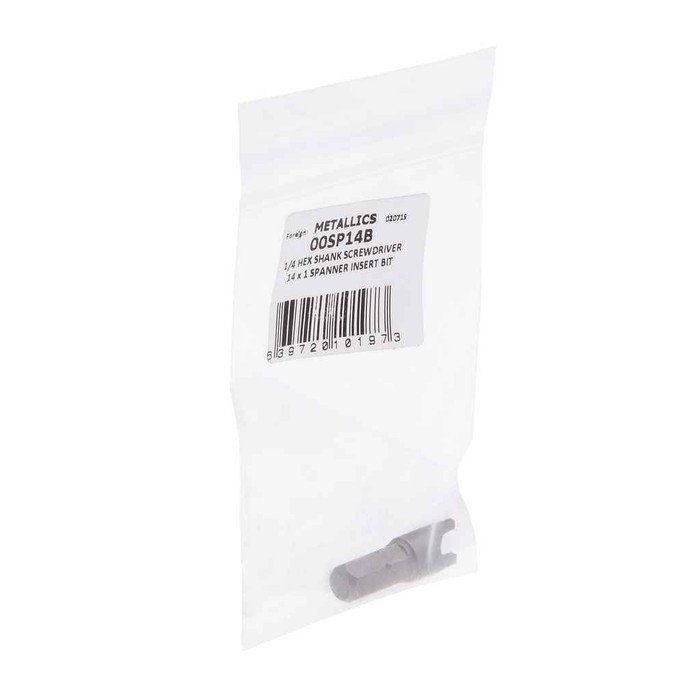

Screwdriver Bit Hx 1/4" Spanner Point #14 1" (1pc)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Pouch
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics 00SP14B – Frequently Asked Questions
1) What kind of screw head does a spanner point bit drive?
A spanner (also called snake eye) head has two round holes set on either side of the head center, and the two pins on the 00SP14B bit engage those holes. It is a tamper-resistant head used on restroom partitions, elevator and transit panels, electrical enclosures, and public fixtures where you do not want the fastener backed out with a common driver. It will not drive Phillips, slotted, square, or Torx heads.
2) What does the #14 on the Metallics 00SP14B spanner bit refer to?
The #14 is the spanner screw size the bit is matched to, so pair it with #14 spanner-head fasteners. Spanner bits are size specific: the pin spacing and pin diameter have to match the holes in the head, so a bit for a smaller or larger screw size will either not enter or will slip and chew out the holes.
3) How many bits come in the Metallics 00SP14B package?
One bit, supplied in a pouch. If you are outfitting a crew or expect to burn through pins on tamper-resistant work, order multiples rather than assuming a set.
4) Can I use this spanner bit in an impact driver on security screws in an electrical enclosure?
The 1/4 inch hex shank mates with impact-driver chucks, and these bits are a standard electrical-trade item for tamper-resistant enclosure and device screws. Keep the speed low and the pressure straight: spanner pins are small and they shear if the bit cams out of the two holes under impact.
