Screws 1/4-20 x 1 RH CD MS St-Zn (1000 pcs)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics RM101-1M – Frequently Asked Questions
1) Are the Metallics RM101-1M screws corrosion protected for damp locations?
The screws are steel with a zinc plating (St-Zn), which gives light corrosion resistance for indoor and dry or normally damp locations. Zinc plated steel is not a stainless or hot dip galvanized fastener, so for wet exterior, coastal, or wash down areas specify a stainless steel machine screw instead.
2) Is this a machine screw or a self tapping sheet metal screw?
The RM101-1M is a machine screw (MS), fully threaded with a blunt end and a uniform 1/4-20 machine thread. It does not drill or tap its own hole. You need a pre tapped hole or a nut on the back side. For attaching into unthreaded sheet metal, a self tapping or sheet metal screw is the right part instead.
3) What head and drive style do the RM101-1M machine screws have?

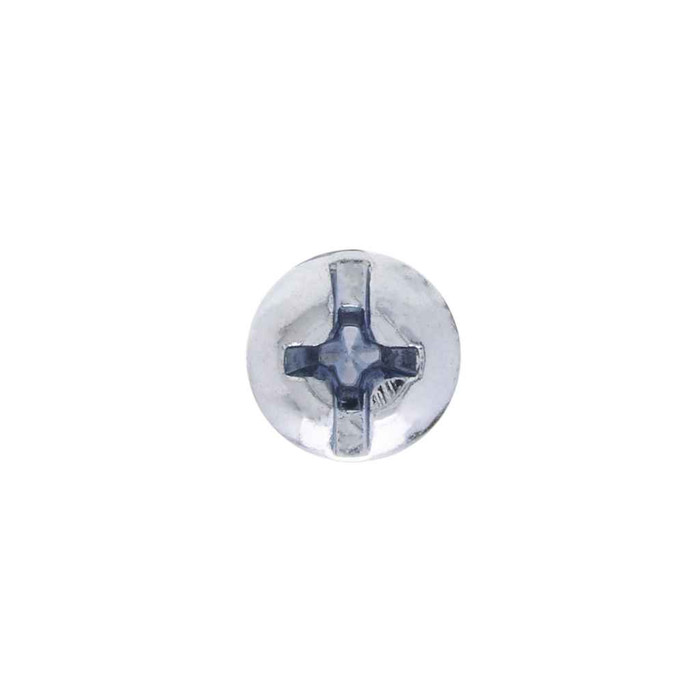

Round head with a combination drive (RH CD), meaning the head is slotted and Phillips so it can be driven with either bit. The round head sits proud of the surface with a domed profile, so it is not a flush or countersunk screw. If the application needs the head flat with the material, you need a flat head machine screw.
4) How many screws come in the Metallics RM101-1M box?
One thousand pieces per box. That is a bulk contractor pack rather than a small hardware card, which is how these are typically bought for panel, fixture, and strut work where a crew burns through 1/4-20 hardware on a single job. Nuts and washers are separate items and are not part of the pack.
5) What do I order to go with 1/4-20 x 1 machine screws if I am not screwing into a tapped hole?
You need a mating 1/4-20 nut, and usually a flat washer plus a lock washer or a 1/4-20 nylon insert lock nut if vibration is a factor. The RM101-1M pack is screws only. With a 1 inch length, plan your stack up so the screw passes through the material and still engages the full nut thickness.
6) Is the Metallics part number for this 1/4-20 x 1 zinc machine screw RM101-1M?
Yes. Metallics lists it as RM101-1M, a 1/4-20 x 1 inch round head combination drive machine screw in zinc plated steel, 1000 per box. Quote that number to get the same head style, plating, and pack quantity rather than a loose count equivalent.
