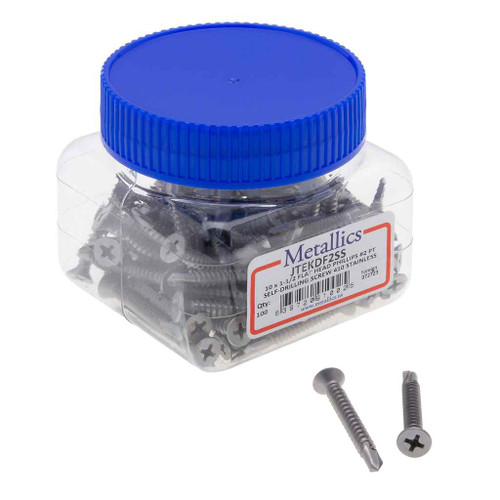

Metallics JTEKDF2SS Screws 10 X 1-1/2 Fh Ph TS D-Pt2 SS (Jar 100)
Model: MET-JTEKDF2SS
Screws 10 X 1-1/2 Fh Ph TS D-Pt2 SS (Jar 100)
Additional Notes
Other sizes and quantities available by request | SAE J78 does not include specifications for #7 diameter drill screws. | This table is...
Metallics
$51.40
$1.40
Screws 8 X 1 Fh Ph TS D-Pt2 SS (Jar 100)
Additional Notes
- Other sizes and quantities available by request | SAE J78 does not include specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.
Features
- May be used to attach plywood, soft woods or composition board to metal, or attach metal to metal
- The 410 stainless screw will drill through harder material than the 18-8. The stainless drill screws are usually supplied plain.
- Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
- A tapping screw with spaced threads and a drill point which drills its own hole. Allow the screw to form mating threads and produce a complete fastening system in a single operation.
Manufacturer Resources
Product Specs
- All Self Drilling Screws Offer Economical Benefits:
- reduces labour and tooling costs; reduces or eliminates drill bits and taps
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.6.3-2002
- Division:
- Electrical H1
- Drill Point Size:
- #2
- Drive Type:
- Phillips
- Driver Size:
- #2
- Fastener Head Height:
- 0.084 - 0.1 in.
- Fastener Head Type:
- Flat
- Fastener Head Width:
- 0.285 - 0.312 in.
- Fastener Length:
- 1
- Gaging Diameter:
- 0.267
- Hardness:
- Rockwell C38-46
- Height:
- 2.15 in
- Language Code:
- EN
- Length:
- 3 in
- Material:
- 410 Stainless Steel
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-Flat_Hd_Phil_Self-Drill_TS_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Panel Thickness:
- 0.035 - 0.100 IN
- Phillips Recess Depth:
- 0.11
- Phillips Recess Diameter:
- 0.182
- Phillips Recess Width:
- 0.03
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 54.61 MM
- Product Length:
- 76.2 MM
- Product Series:
- JTEKDF
- Product Weight:
- 200 g
- Product Width:
- 76.2 MM
- Protrusion Gaging Diameter:
- 0.023 - 0.039 Above
- Screw Point Type:
- Drill Point
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 18
- Thread Standard:
- SAE J78 - 2013
- Torsional Strength:
- 42 lb-in minimum
- Type:
- Type BSD Self-Drilling & Tapping Screw
- Weight:
- 0.44 lbs
- Width:
- 3 in
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type BSD Self-Drilling & Tapping Screw
- Type2:
- Type BSD Self-Drilling & Tapping Screw
