SDC 45 Series - 5/8" Latchbolt Electric Strikes 4-7/8" Square Corner Faceplate for Hollow Metal Application

SDC’s 45 series 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and mortise locksets without deadbolt for both metal and wood frames. 45 series strikes accept 5/8” throw latchbolts or up to ¾” throw latchbolts with 1/8” door gap.

45F models are fire-rated and accept 9/16” throw latchbolts or up to 5/8” throw latchbolts with 1/8” door gap.

Built with all stainless steel parts, a durable die cast body and fewer moving parts for maximum lifespan and corrosion resistance, the quality construction makes 45 series strikes ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.

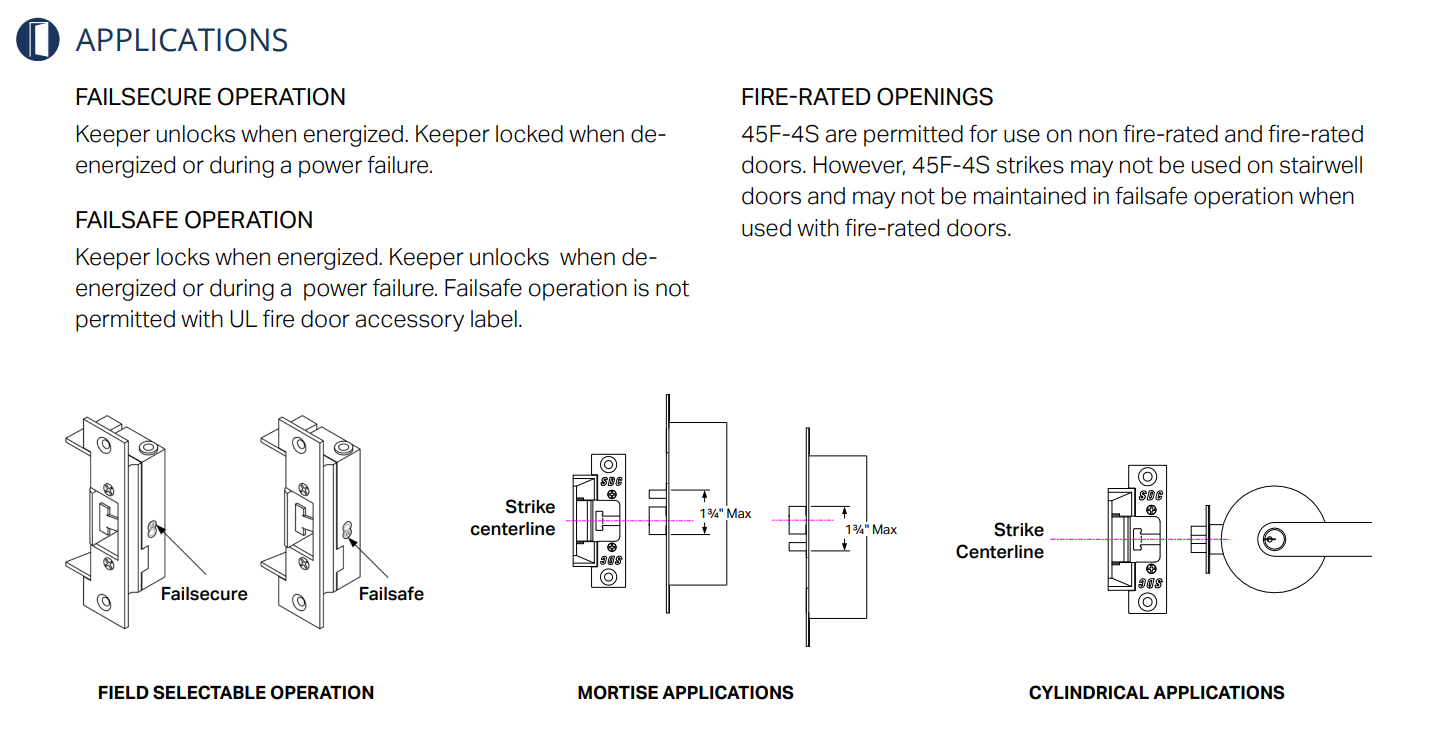

Centerline latch entry strikes require the latch to enter at the strike “centerline” located exactly between the top and bottom of the strike faceplate

STANDARD FEATURES

• Low profile
• Fewer moving parts
• Stainless steel components
• Durable die cast housing body
• Corrosion resistant
• Horizontal alignment adjustment
• Mounting tabs included
• Non-handed
• Interchangeable faceplate design
• Internally mounted solenoid
• Field selectable operation
• Field selectable dual voltage
• Voltage and current spike protection
• Pigtail connectors
• Latch status (LS)
• Keeper deadlocked status

CERTIFICATIONS

• UL 1034 Burglary-Resistant Electric Locking Mechanisms
  UL 10C Positive Pressure Fire Tests of Door Assemblies*
  ANSI/BHMA A156.31
  ANSI/BHMA A156.31 Grade 1* (Applies to 45F models only.)
