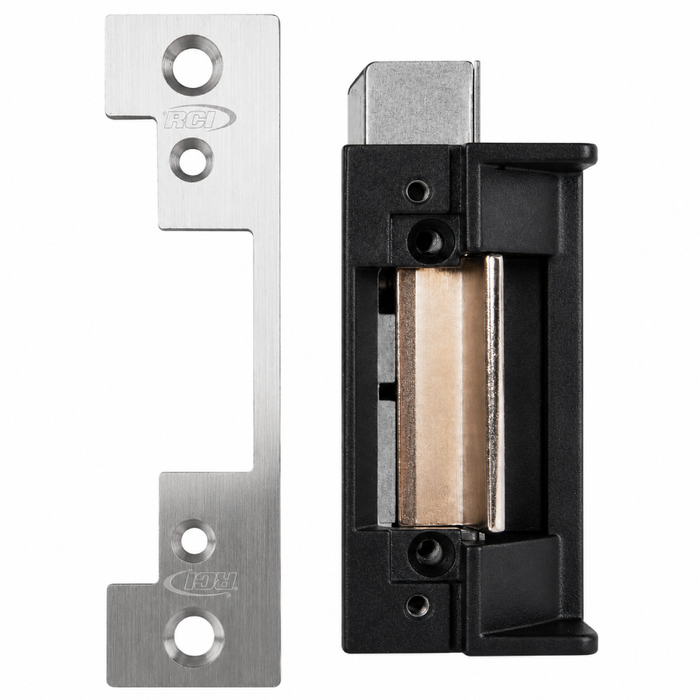

RCI 7114 Electric Strike with 4-7/8" Square Corner Faceplate for Cylindrical and Mortise Locks

RCI 7114 Electric Strike with 4-7/8" Square Corner Faceplate for Cylindrical and Mortise Locks

Professional Centerline Electric Strike for Commercial Access Control

The RCI 7114 electric strike is engineered for commercial access control applications requiring reliable fail-secure operation with cylindrical and mortise locks. This 7 Series centerline strike accommodates 5/8" latch projections with a 4-7/8" square corner faceplate and supports door thicknesses from 1-3/8" to 2-3/8". Operating at 12VDC with 280mA current draw, the unit provides 500lbf static holding force and is rated for 250,000 operational cycles.

Professional Features & Benefits

• Latch Compatibility: Accommodates 5/8" (16mm) latch projection for compatibility with cylindrical locks, mortise exit and latch locks.
• Adjustable Installation: 1/8" (3.2mm) horizontal adjustment capability allows precise alignment during installation for optimal performance.
• Versatile Door Compatibility: Supports wide range of door thicknesses from 1-3/8" to 2-3/8" (35mm-60mm) for flexible installation options.
• Heavy-Duty Performance: 500lbf static holding force with 70ft-lb dynamic rating ensures reliable security in high-traffic commercial applications.
• Long-Life Durability: Rated for 250,000 operational cycles providing dependable performance in demanding access control environments.
• Fail-Secure Operation: Maintains locked position during power loss for enhanced security in commercial applications.
• Complete Installation Package: Includes mounting tabs, fasteners, and trim plate to cover irregular frame cutouts for professional installation.
• Manufacturer Warranty: 3 Year Limited Warranty for added confidence and protection.

Technical Specifications

• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• 500lbf Static 70ft-lb Dynamic
• 250,000 Cycles
• Available In Fail-Secure & Fail-Safe
• 3 Year Limited Warranty

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12VDC voltage and 280mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure operation per application requirements.
6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Office Building Access Control
• Educational Institution Safety Systems
• Healthcare Facility Access Control
• Retail Loss Prevention
• Industrial Facility Monitoring
• Government and Municipal Buildings

Why Choose RCI Quality?

RCI electric strike products deliver professional-grade reliability with heavy-duty construction rated for 250,000 operational cycles and 500lbf static holding force. The 3 Year Limited Warranty provides added confidence for demanding commercial access control applications. Engineered for precise installation with horizontal adjustment capability and comprehensive mounting hardware for dependable performance where security is essential.
