SDC Laser Guided Wire Raceway Drill Fixture Kit with 3/8"; x 50"; Drill Bit and Fiberglass Running System
Professional Door Core Wire Raceway Installation System

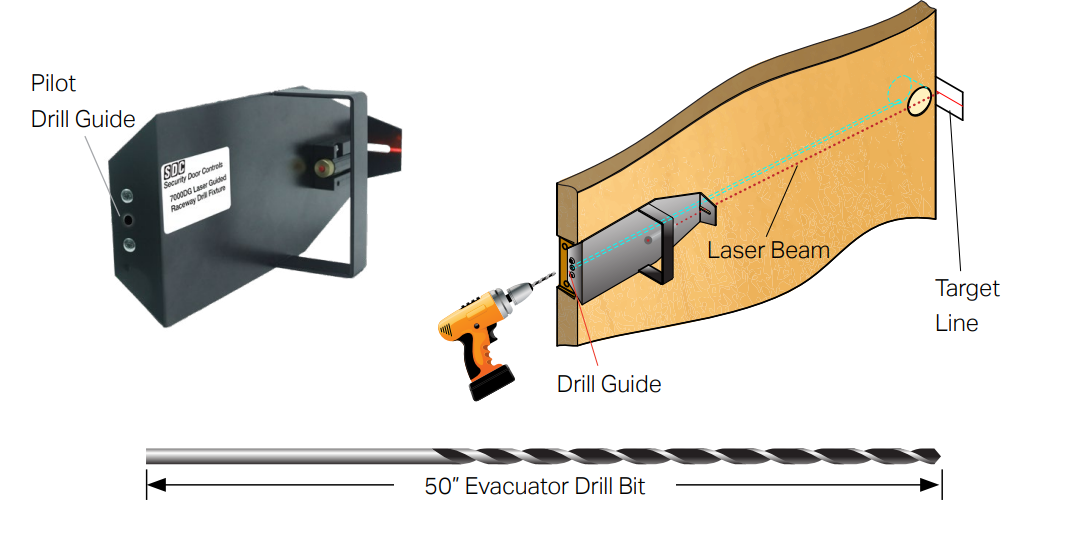

The SDC Laser Guided Wire Raceway Drill Fixture Kit enables precise wire raceway preparation through particle filled and solid wood doors for electrified locksets, exit devices, and electric hinges. This comprehensive kit includes a 1/4"; x 6"; pilot drill bit, 3/8"; x 50"; door raceway drill bit, and complete fiberglass wire running system with flexible acrylic end connections. The laser guided fixture allows drilling from the hinge side without removing the door from the frame, making installation efficient and accurate even without previous experience.
Professional Features & Benefits
- Laser Guided Precision: Laser guided door core raceway fixture ensures accurate drilling alignment and eliminates guesswork for professional results.
- Complete Drill Bit System: Includes 1/4"; x 6"; pilot drill bit and 3/8"; x 50"; door raceway drill bit for comprehensive door preparation capabilities.
- Fiberglass Wire Running Kit: Complete wire pulling system with flexible acrylic end connection, brass hook end for pulling, and brass eye end for pushing.
- Door-in-Frame Installation: Allows drilling from the hinge side without removing the door from the frame, reducing installation time and complexity.
- Universal Door Compatibility: Works with particle filled and solid wood doors for versatile application across different door types.
- Professional Tool Organization: Includes kit carry case and door wedge for organized transport and secure door positioning during installation.
- No Experience Required: Easy-to-use design enables successful wire raceway installation without previous drilling experience.
Technical Specifications
- Commercial/Residential: Commercial
- Department: Door Hardware
- Electronic: Yes
- PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
- Product Category: Electronic Access Controls
- Product Group: Electronic Access Controls
- Product Model: 7000-DGK
- Product Subgroup: Controllers, Power Supplies and Transformers
- Product Type: Power Transfer Devices
- Series: 7000-DGK
- Subcategory: Power Transfer Devices
Professional Applications
- Commercial Building Electrified Hardware Installation
- Educational Facility Access Control Systems
- Healthcare Institution Electronic Lock Integration
- Retail Security System Door Preparation
- Industrial Facility Electronic Exit Device Installation
- Multi-Tenant Residential Electronic Hardware
- Government Building Security System Integration
Why Choose SDC Quality?
SDC wire raceway drill fixture kits deliver professional-grade precision with laser guided alignment technology and comprehensive drilling components for reliable door core preparation. The complete system includes specialized drill bits, fiberglass wire running tools, and organized carrying case for efficient field installation. Engineered for commercial applications where accurate wire raceway installation is essential for electrified door hardware systems.
Manufacturer Resources
SDC Full Catalog
Product Specs
- Subcategory:
- Power Transfer Devices
- Series:
- 7000-DGK
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Controllers, Power Supplies and Transformers
- Product Type:
- Power Transfer Devices
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Model:
- 7000-DGK
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
SDC 7000-DGK – Frequently Asked Questions
1) Can I drill a wire raceway with the SDC 7000-DGK without taking the door off its hinges?
That's the point of the laser guided fixture. The SDC 7000-DGK drills from the hinge side with the door still hanging in the frame, so you're not pulling the door, re-shimming it, or re-hanging it to run wire for an electrified lock. A door wedge is in the kit to hold the door steady while you drill.
2) What kind of doors will the SDC 7000-DGK raceway drill kit work on?
Particle filled and solid wood doors. The 7000-DGK is a wood door core tool, so it is the wrong kit for hollow metal, and it isn't stated for mineral core or steel stiffened slabs either. If the opening is a wood door and you need a path for wire from the hinge edge to the lock, this is the fixture for it.
3) What drill bits come with the SDC 7000-DGK kit, and do I have to buy anything else to drill the raceway?
Both bits are in the box: a 1/4 inch x 6 inch pilot bit to start the bore true, and a 3/8 inch x 50 inch door raceway bit for the long run through the door core. Also included are the laser guided raceway fixture, the fiberglass wire running system, a door wedge, and a carry case. You supply the drill.
4) How do you actually pull the wire through after the raceway is drilled?
The kit's fiberglass running system does it. The rod has a flexible acrylic end connection and two interchangeable brass ends: a hook end for pulling wire back through the bore, and an eye end for pushing wire ahead of the rod. So one tool covers both directions, whichever end of the raceway you're feeding from.
5) What electrified hardware is this raceway drill kit meant to prep a door for?
Electrified locksets, electric exit devices, and electric hinges. Any of those needs a concealed path from the hinge edge power transfer to the lock or device prep, and the 7000-DGK bores that path. If you're converting a mechanical wood door opening to access control, this is the door prep step.
6) Is the 3/8 inch raceway bore big enough for the wiring on an electric lock?
The 7000-DGK bores a 3/8 inch raceway, which is the size the fixture and the 50 inch bit are built around. Check the harness diameter and connector size on the specific electrified lock or hinge you're installing against that 3/8 inch bore before you drill, since a molex-style plug on a factory harness is often the widest thing you have to pass.
7) Is the SDC 7000-DGK a commercial tool or something for residential work?
It's specified for commercial use. The 7000-DGK is aimed at electrified hardware installs in commercial buildings, schools, healthcare, retail, industrial facilities, government buildings, and multi-tenant residential, which is where wood doors get converted to access control in volume.
8) Do I need to be experienced with door prep to use a laser guided raceway fixture?
No. The laser guided fixture sets the alignment for you, which is the part that goes wrong when a raceway is drilled freehand and the bit wanders out the face of the door. SDC states the 7000-DGK can be used successfully without previous drilling experience.
9) What is the SDC 7000-DGK, exactly? Is it a power transfer or a tool?
It's a tool kit, not a piece of door hardware. The 7000-DGK is a laser guided drill fixture kit used to bore the wire raceway through a wood door core so power transfer hardware and electrified locks can be wired. Nothing in it stays on the door after the job.
