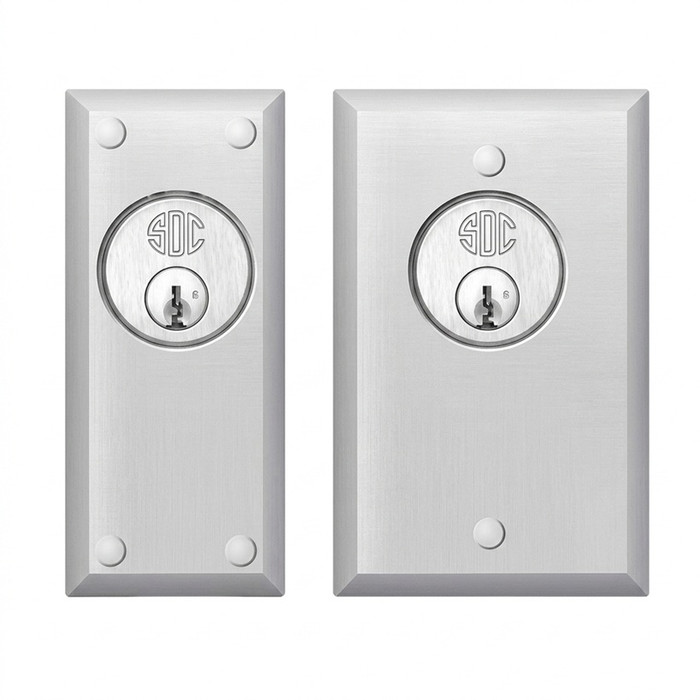

SDC SDC 800AL Series - Vandal Resistant Key Switches Assembly SDC-800

SDC 800 Series Vandal Resistant Key Switch Assembly with 1/4" Aluminum Faceplate

(No reviews yet) Write a Review

Model: 809AL
$242.50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$242.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC 800AL Series Vandal Resistant Key Switch Assembly with 1/4"; Aluminum Faceplate

Professional Access Control Key Switch Solution

The SDC 800AL Series vandal resistant key switch assembly provides economical authorized control for commercial access control applications. Features 1/4"; thick aluminum faceplates with heavy duty rated switches compatible with 1"; and 1-3/8"; mortise key cylinders. Available in narrow faceplate and single gang configurations for versatile mounting options including direct door frame or box mounting installations.

Professional Features & Benefits

  • Vandal Resistant Construction: 1/4"; thick aluminum faceplates with tamper resistant recessed cylinder design and spanner screws for enhanced security in high-traffic areas.
  • Heavy-Duty Contact Rating: 2 Amps @ 30 VDC resistive rating ensures reliable switching performance for demanding commercial applications.
  • Universal Cylinder Compatibility: Compatible with U.S. standard 1"; and 1-3/8"; mortise key cylinders and interchangeable core cylinders for seamless integration with existing key systems.
  • Flexible Contact Configuration: Available in SPDT or DPDT configurations with alternate action (AA) or momentary (MO) operation for diverse system requirements.
  • Professional Installation Features: 22 gauge wire leads with 7"; length and large actuator design for positive and consistent activation in commercial environments.
  • Versatile Mounting Options: Available in narrow faceplate (800ALN) for direct door frame mounting or single gang size (800AL) for standard electrical box installation.

Technical Specifications

  • Commercial/Residential: Commercial
  • Contact Rating: 2 Amps @ 30 VDC Resistive
  • Department: Door Hardware
  • Electronic: Yes
  • Face Plate: 1/4"; Thick Aluminum
  • PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 800ALN, 800AL
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Key Switches
  • Series: 800 Series
  • Subcategory: Key Switches

Professional Applications

  • Commercial Building Security Systems
  • Retail Loss Prevention
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Government and Municipal Buildings

Tamper-Resistant Design

The 800AL Series features comprehensive tamper protection including recessed cylinder mounting and tamper resistant spanner screws. This vandal resistant design ensures reliable operation in high-traffic commercial environments where unauthorized access attempts are a concern.

Why Choose SDC Quality?

SDC 800AL Series key switch assemblies deliver professional-grade reliability with 1/4"; thick aluminum construction and heavy duty rated switches designed for demanding commercial applications. The 2 Amps @ 30 VDC resistive contact rating ensures dependable switching performance, while compatibility with standard mortise cylinders maintains integration with existing mechanical key systems.

Manufacturer Resources

SDC Full Catalog

Product Specs

Subcategory:
Key Switches
Series:
800 Series
Contact Rating:
2 Amps @ 30 VDC Resistive
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Key Switches
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
800ALN, 800AL
Face Plate:
1/4" Thick Aluminum
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC 809AL – Frequently Asked Questions

1) Will the SDC 800 Series key switch work with my existing mortise cylinders and keyway?
The 800AL key switch assembly takes U.S. standard 1 inch and 1-3/8 inch mortise key cylinders, including interchangeable core cylinders, so you can key it into the same system as the rest of the building. The cylinder is not supplied with the switch; order it separately in the keyway you already run. The cylinder mounts recessed in the faceplate as part of the tamper resistant design.
2) What is the difference between the SDC 800AL and 800ALN key switch, and which one do I need?
Size is the choice. The 800ALN uses a narrow faceplate meant to go straight onto a door frame or a narrow stile, where there is no room for a gang box. The 800AL is single gang size and drops into a standard electrical box in the wall beside the opening. Same 1/4 inch thick aluminum faceplate and same switching either way, so pick on where the plate has to land.
3) Should I order a momentary or alternate action key switch for my mag lock?
Momentary (MO) breaks the circuit only while the key is turned and springs back, which is what you want for a timed release or a request to exit that re-secures itself. Alternate action (AA) latches in position, so the opening stays unlocked until someone returns and keys it back, which is the one for unlocking a door for the business day. The 800 Series offers both: 801 is AA SPDT, 802 is MO SPDT, 805 is AA DPDT and 806 is MO DPDT.
4) Can one SDC key switch control two things at once, like a mag lock and an alarm shunt?

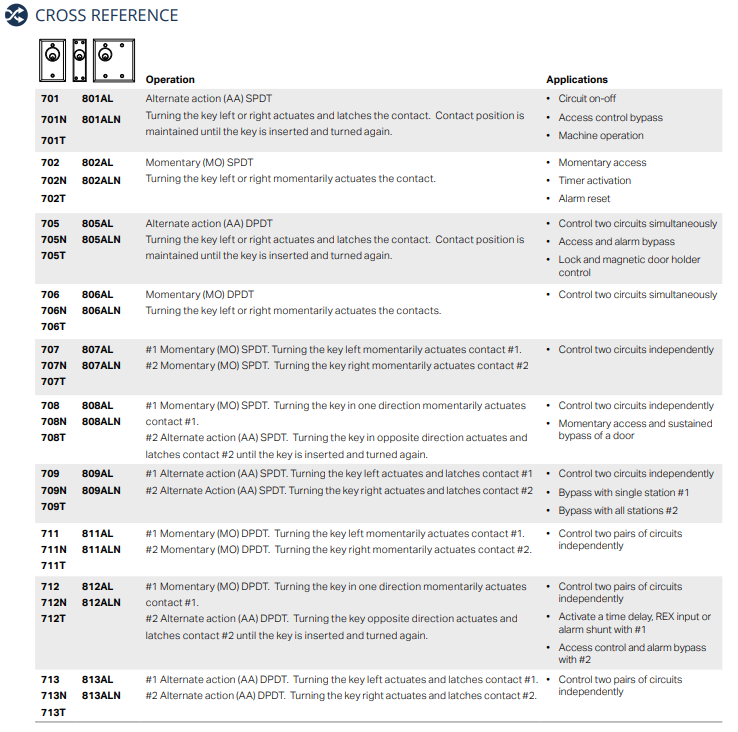

Yes, and that is what the two-contact models are for. The 807 gives you two momentary SPDT contacts, 809 two alternate action SPDT, and 808 pairs one momentary with one alternate action SPDT on the same key. On the DPDT side, 811 is two momentary, 813 is two alternate action, and 812 mixes one of each. A DPDT model (805, 806, 811, 812, 813) also gives you two poles per contact if you need to switch two separate circuits from one throw.
5) Will an SDC 800 key switch handle the current draw of my door strike or mag lock?
The contacts are rated 2 Amps at 30 VDC resistive. That is fine for switching a low voltage access control input, a relay coil, or a small DC device, but it is not a line voltage switch and it will not carry a heavy inductive load directly. If your lock pulls more than that, or runs on AC line voltage, switch a relay with the key switch and let the relay carry the lock. For comparison, the ROFU 9200 SPDT key switch we carry is rated 10A at 250V and 15A at 125V if you need to switch a larger load at the switch itself.
6) How do I keep someone from pulling the key switch off the wall and shorting the wires to get in?
Three things do the work here. The faceplate is 1/4 inch thick aluminum, the cylinder sits recessed rather than proud of the plate, and it fastens with tamper resistant spanner screws instead of standard heads. On top of that you can order the anti-tamper switch (ATS) option, which reports an attempt on the device back to your panel. In an exterior or public-facing location, spec the ATS.
7) What do I need to specify when ordering an SDC 800 Series key switch?
Four decisions. Size, narrow faceplate for a frame or stile or single gang for an electrical box. Model, which sets contact type and action, from 801 through 813. LED indicator, L1G, L1R, L2, LT or none. And anti-tamper switch, yes or no. The mortise cylinder is a separate order, in your keyway, 1 inch or 1-3/8 inch.
8) What is the closest equivalent to an SDC 800 Series key switch from another manufacturer?
The ROFU 9200 is a single-pole double-throw key switch built for standard stile mounting, rated 10A at 250V and 15A at 125V. The SDC 800 Series is also available with SPDT contacts, in the 801 alternate action and 802 momentary models, and carries a 2 Amps at 30 VDC resistive contact rating with a 1/4 inch thick aluminum faceplate. Both switch a circuit by key, so the decision usually comes down to the contact rating your control circuit needs and whether you are mounting into a narrow stile or a single gang box.
9) I need a key switch plus push buttons at one location instead of a key switch alone - what should I use?
The Dortronics 5246 Series combines a key switch with one SPDT and two SPDT push buttons on a mini-box console, with the key removable in two positions. The SDC 800 Series is key operation only; where it gives you multiple circuits it does so through additional key-actuated contacts, such as the 807 with two momentary SPDT sets, the 809 with two alternate action SPDT sets, or the 812 with one momentary and one alternate action DPDT set. Choose the 5246 when an operator needs free push button control alongside the keyed function, and the 800 Series when every circuit at that point should require a key.
10) Can I use a Dortronics 5236 push button console in place of a key switch?
No. The Dortronics 5236 Series is a 3/8 inch diameter DPDT momentary snap-action push button on a mini-box console with one LED, so anyone standing at it can operate it. The SDC 800 Series requires a key to actuate and accepts U.S. standard 1 inch and 1-3/8 inch mortise cylinders and interchangeable cores, which is what ties operation to your existing key system. Use the 5236 for open request-to-exit or release control, and the 800 Series where the circuit must be limited to keyholders. If the LED is what you want, the 800 Series offers indicator options including one green, one red, one green and one red, and a single tri-color.
11) Is there a key switch that shows whether the door is locked or unlocked?
The 800 Series can be ordered with an LED status indicator built into the faceplate. Four options: L1G is a single green LED, L1R a single red, L2 gives you one green and one red, and LT is a single tri-color LED. On an alternate action model the indicator is what tells staff at a glance whether the opening was left unlocked. If you do not want the indicator, order the None option.
12) What are the wire leads on the SDC 800 key switch, and how much length do I have to work with?
The switch comes with 22 gauge leads, 7 inches long. That is enough to land in a single gang box or a frame cutout behind the plate, but it is short, so plan a splice point close to the device rather than pulling the field wire back to the switch. On a frame-mounted 800ALN, get your feed to the cutout before you set the plate.
13) Key switch or push button for releasing a door, which should I use?
A key switch restricts the release to whoever carries the key, so it suits an exterior door, an after-hours entry, or anywhere you do not want unrestricted release. The SDC 800AL is the vandal resistant version of that, with a 1/4 inch aluminum plate for public locations. If the control is inside a secure area and anyone in the space is allowed to release the door, a push button console is simpler, for example the Dortronics 5236 Series with a DPDT momentary snap-action button and LED on a mini-box console. Where you want both, the Dortronics 5246 Series puts a two-position key removable SPDT key switch and two SPDT push buttons on one console.
14) I want the same key switch on every door in the building, can I standardize on the SDC 800 Series?
Yes, and the series is built for it. You can run the narrow 800ALN on frame-mounted openings and the single gang 800AL where there is a box, keep the same 1/4 inch aluminum plate look across the facility, and key every one of them to your existing mortise cylinder system since they accept standard 1 inch and 1-3/8 inch cylinders including interchangeable cores. Vary only the model number where a given opening needs momentary instead of alternate action, or a second set of contacts.
15) Which key switch holds up better where the device is exposed to abuse?
The SDC 800 Series is built as a vandal resistant assembly, with a 1/4 inch thick aluminum faceplate, a recessed cylinder so the plug does not stand proud of the plate, and tamper resistant spanner screws; an anti-tamper switch is also available on the assembly. The ROFU 9200 is an SPDT key switch for standard stile mounting, rated 10A at 250V and 15A at 125V. For an exterior wall, a parking structure, or a corridor in a school where the device takes hits, the plate thickness, recessed plug, spanner screws, and the anti-tamper option are the specifications to weigh.
16) My opening is a narrow aluminum stile - which key switch fits?
Both the SDC 800 Series and the ROFU 9200 address narrow openings. The 800 Series is made in a narrow faceplate size for direct door frame mounting as well as a single gang size for a standard electrical box, so the same series covers the stile and the wall beside it. The ROFU 9200 is a standard stile SPDT key switch rated 10A at 250V and 15A at 125V. If you are keying both a stile-mounted switch and a wall-mounted one on the same project and want them to match, the 800 Series narrow and single gang sizes share the 1/4 inch aluminum faceplate.
17) I need a maintained key position, not a spring return - what do I order?
The SDC 800 Series splits its models between alternate action and momentary contacts: 801 is alternate action SPDT, 802 is momentary SPDT, 805 is alternate action DPDT, and 806 is momentary DPDT, with combination models such as the 808 carrying one momentary and one alternate action SPDT set. The Dortronics 5236 push button is momentary snap-action only, and the Dortronics 5246 key switch is described as key removable in two positions. For a circuit that must stay held after the key is turned, the alternate action 800 Series models are the ones to specify.
18) Is the SDC 800AL key switch rated for commercial use or is it a residential device?
Commercial. The 800AL is built for commercial access control, with heavy duty rated switches and a 2 Amp at 30 VDC resistive contact rating, and it gets used on retail, healthcare, school, industrial, and municipal openings. It is not a residential-grade switch and it is not a standalone lock, it is the authorized control that tells a lock or panel to release.
