SDC’s EntryCheck™ 920 series indoor/outdoor digital keypads are designed to control access of a single entry point with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Featuring heavy cast vandal resistant housing and cast metal blue backlit keys.
920P models add HID proximity reader capability to the keypad. 920PW models are designed to interface with SDC’s IPPro® or most access control systems providing a standard 26-bit wiegand output.
SDC’s 921P models are indoor/outdoor standalone digital keypads with proximity reader and controller (two-piece configuration), designed to control access of a single entry point with up to 500 users. Each user is assigned a proximity card and/or a personal identification number (PIN). Presentation of a proximity card or keypad entry of a code activates one or both of the output relays which releases an electric door lock.

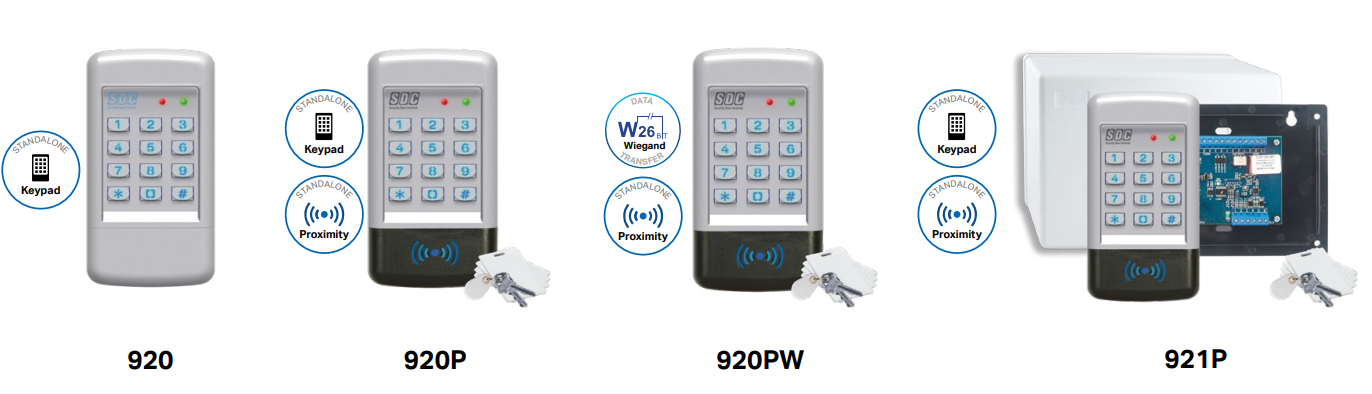

MODELS
920 Indoor/Outdoor Self-Contained Keypad
920P Indoor/Outdoor Self-Contained Keypad with Integrated Proximity Reader
920PW Indoor/Outdoor Weigand Output Keypad with Integrated Proximity Reader
921P Indoor/Outdoor Self-Contained Keypadwith Integrated Proximity Reader, External Electronics
STANDARD FEATURES
• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant
keypad
• Weather and vandal resistant housing with
tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)
SELF-CONTAINED KEYPADS ONLY
• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2

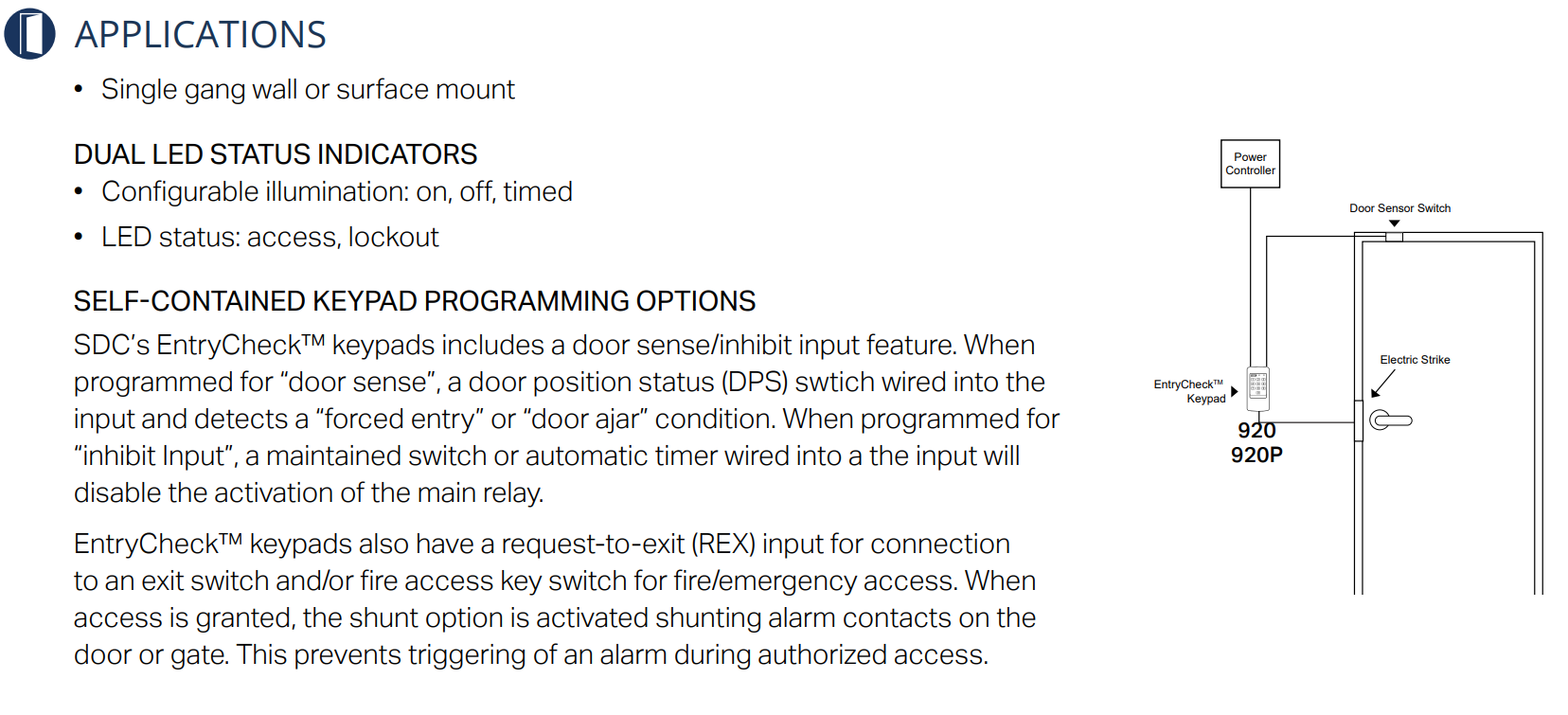

• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)
INTEGRATED PROXIMITY READERS ONLY
• 3 user modes - PIN or card, card only, card and PIN
RESOURCES
920-Datasheet.pdf (sdcsecurity.com)
Manufacturer Resources

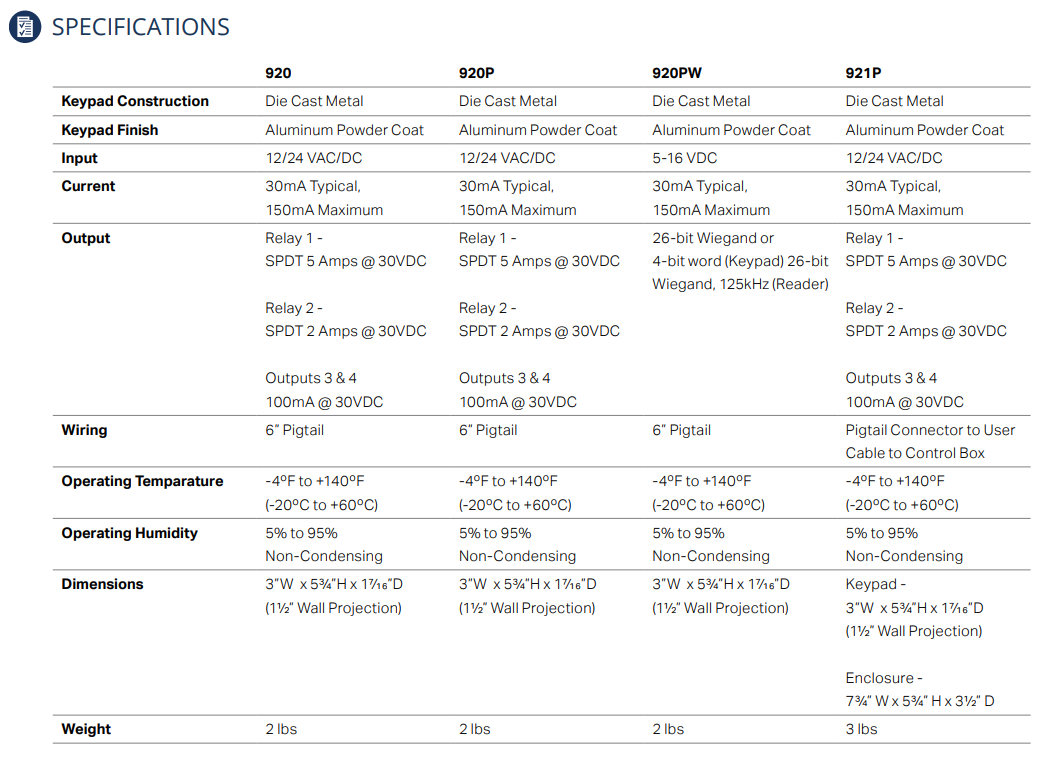

Product Specs
- Category:
- Electronic Access Controls
- Subcategory:
- Keypads and Readers
- Series:
- 920 Series
- Dimensions:
- 3"W x 43/4"H x 11/2"D (1/4" Wall Projection)
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Product Type:
- Keypads and Readers
- Model:
- 920, 920P, 920PW, 921P
- Commercial/Residential:
- Commercial
- Temperature Range:
- Minus 4 Degrees F to +140 Degrees F (Minus 20 Degrees C to +60 Degrees C)
- Electronic:
- Yes
- Power:
- 30mA Typical, 150mA Maximum
