SDC’s 926 series outdoor standalone digital keypads with incorporated privacy and weather protected housing are designed to control doors or gates with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid four to six digit code activates one or both of the output relays.
The keypad electronics are secured by an integral key lock and builtin tamper switch.
The heavy steel vandal resistant housing design allows the 926 to be surface mounted on a wall or pedestal post
MODELS
926 Outdoor Self-Contained Keypad
STANDARD FEATURES
• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant
keypad
• Weather & vandal resistant housing
with tactile metal keys
• Keypad programmable
• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Built-in tamper switch
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)
• Audible code entry verification
• Visual status indicators (LED)

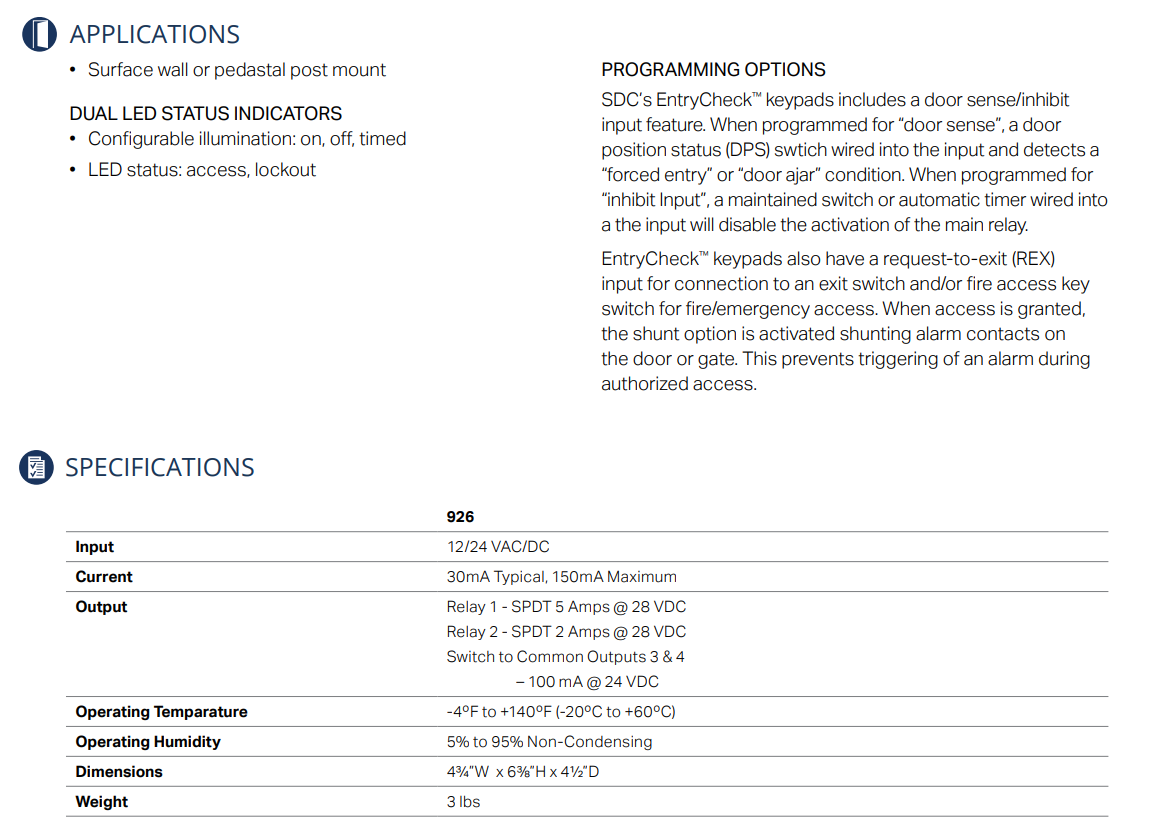

RESOURCES
926-Datasheet.pdf (sdcsecurity.com)
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Series:
- 926 Series
- Dimensions:
- 43/4"W x 63/8"H x 4-1/2"D
- Model:
- 926
- Subcategory:
- Keypads and Readers
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Product Type:
- Keypads and Readers
- Commercial/Residential:
- Commercial
- Temperature Range:
- Minus 4 Degrees F to +140 Degrees F (Minus 20 Degrees C to +60 Degrees C)
- Electronic:
- Yes
- Power:
- 30mA Typical, 150mA Maximum
