Alarm Controls Alarm Controls KP-200 Series - Flush Mount Weatherproof Digital Keypad ACT-KP-200

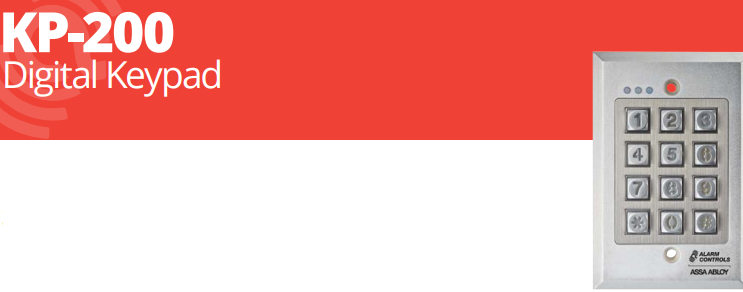

Alarm Controls KP-200 Series - Flush Mount Weatherproof Digital Keypad

(No reviews yet) Write a Review

Model: KP-200
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$291.00
$207.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Controls KP-200 Series - Flush Mount Weatherproof Digital Keypad

Self-contained digital keypad. KP-200 is vandal resistantanddesigned for indoor applications.

Features
Standard Features
• Surface mounted
• True 10-digit operation (10 digits plus * and # keys)
• Capacity up to 100 user codes, length from 4 to 8 digits
• Fully programmable from the keypad
• Programmable passage and false code lockout mode capatibilities
• Built-in tamper switch
• Red, green, and yellow LEDs for status and programming feedback
• Request to Exit (REX) input
• Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
• For indoor applications
• 3 year warranty

Dimensions
• 3-1/5"W x 4-3/4" L x 3/5"D

Electrical
• Operating voltage: 12 or 24 VAC or VDC, auto sensing
• Operating Current: 78 mA relay opening; 16 mA at rest
• Output 1 relay: SPDT contact rating: 1A at 24 VDC
• Output 2 relay: SPDT contact rating 1A at 24 VDC; Jumper selectable. N/O or N/C Dry contacts.

Operating Temperature
• -4°F to +158°F [-20°C to +70°C]

Shipping Weight
• 1 lb [0.45 kg]

Product Specs

Series:
KP-200
Subcategory:
Readers, Keypads and Credentials
Commercial/Residential:
Commercial
Temperature Range:
Minus 4 to 158F (Minus 20C to 70C)
Product Type:
Digital Keypads
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Plate Finish:
Satin Stainless Steel
Product Function:
Indoor
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls KP-200 – Frequently Asked Questions

1) Can the Alarm Controls KP-200 keypad be mounted outdoors on an exterior door?
No. The KP-200 is built for indoor applications only. It is vandal resistant and holds up to an operating range of -4F to +158F (-20C to +70C), but the product is specified as indoor use, so for a gate or an exposed exterior opening you want a keypad rated for outdoor mounting instead.
2) What voltage does the Alarm Controls KP-200 keypad need, and can I run it off my existing 12V access control power supply?
It runs on 12 or 24 VAC or VDC and auto senses which it is getting, so a standard 12VDC access control supply works with no jumper change. Current draw is 16 mA at rest and 78 mA while the relay is pulled in, so it adds very little load to a shared supply feeding a strike or mag lock.
3) Will the KP-200 keypad switch an electric strike or maglock directly, or do I need a separate relay?
The KP-200 has two SPDT relay outputs, each rated 1A at 24 VDC dry contact. That is enough for most electric strikes, but a maglock or a strike drawing more than 1 amp needs an external relay or a power supply with a relay input. Output 2 is jumper selectable for normally open or normally closed, which is how you get a fail-safe maglock to drop on a valid code.
4) How many user codes does the Alarm Controls KP-200 hold and how long can they be?
Up to 100 user codes, each 4 to 8 digits long. It is a true 10-digit keypad (0 through 9 plus the star and pound keys), and all programming is done at the keypad itself, so there is no software or handheld programmer to buy. For a small office or a multi-tenant common door, 100 codes usually covers the tenant list plus staff.
5) How big is the KP-200 keypad and how does it mount to the wall?
It measures 3-1/5 inches W x 4-3/4 inches L x 3/5 inch D and is a surface mounted, self-contained unit, so you are not cutting in a back box for the keypad body itself. Plan on a wire path behind it for power and the relay leads.
6) Does the KP-200 keypad accept a request-to-exit input for a push button or motion sensor?
Yes, there is a REX input on the KP-200, so a push-to-exit button, exit motion sensor, or the REX contact in a panic device can trigger the relay without a code being entered. That is the normal way to handle free egress on an access controlled door.
7) Can I set the KP-200 to hold a door unlocked during business hours?
Yes. The KP-200 has a programmable passage mode, so you can latch the relay to keep the opening unlocked for a work day or a delivery window and then take it back out of passage. It also has a programmable false code lockout that shuts the keypad down after repeated bad entries, which is what stops someone standing there guessing codes.
8) Does the KP-200 keypad have any tamper protection if someone pries it off the wall?
There is a built-in tamper switch in the KP-200, which you can wire back to an alarm panel or the access control system so removal of the keypad from the wall reports as an event. Combined with the vandal resistant housing and die-cast metal keys, that covers the usual attack on a keypad at a semi-public entry.
9) Is the KP-200 keypad usable in a dark corridor or stairwell, and does it tell the user the code was accepted?
The keys are die-cast metal and backlit for visibility in dark areas, with both an audible and a visible key press. Red, green, and yellow LEDs give status and programming feedback, so a user knows whether the code took and an installer can see what step of programming they are in.
10) What finish does the Alarm Controls KP-200 keypad come in?
One finish: satin stainless steel. There is no other plate option in the KP-200, so if you are standardizing a building on brass or black hardware, the keypad will read as stainless against it.
11) Is there installation and programming documentation for the Alarm Controls KP-200?
Yes, Alarm Controls publishes an operating manual for the KP-200 keypad series that covers wiring and the keypad programming sequences for user codes, passage mode, and lockout settings. Worth having in hand before you terminate, since all programming is done at the unit.
