Alarm Lock Trilogy PDK3000 Dig...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,937.30
$896.22
Alarm Lock Alarm Lock PDK3000 Trilogy Digital Access Control Pin Code Keypad ALA-PDK3000

Alarm Lock Trilogy PDK3000 Digital Access Control Keypad with 2000 PIN Codes and Weatherproof Construction

(No reviews yet) Write a Review

Model: PDK3000 US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,937.30
$896.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Lock Trilogy PDK3000 Digital Access Control Keypad with 2000 PIN Codes and Weatherproof Construction

Professional Weatherproof Access Control with PC Programming & Audit Trail

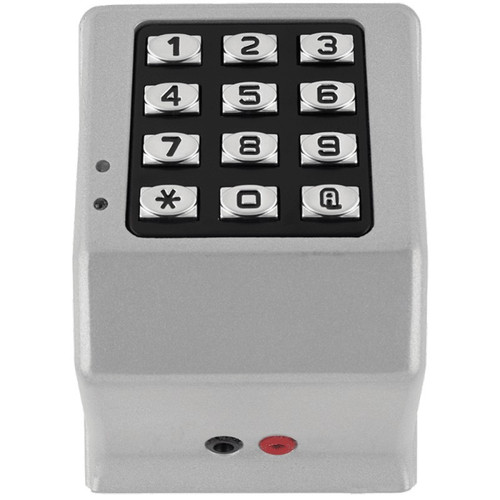

Electronic digital keypad with built-in HID proximity reader. Reads most HID cards and keyfobs. Provides flying leads for power, relays, tamper and remote release. The Alarm Lock Trilogy PDK3000 Digital Access Control Keypad delivers professional-grade security with 2000 PIN user codes and multilevel access control capabilities. This weatherproof keypad operates on 12V or 24V (AC or DC) power and features a vandal-resistant all-metal 12-button design suitable for commercial applications. Operating reliably in temperatures from -31°F to 151°F (-35°C to +66°C), this keypad provides comprehensive audit trail functionality with up to 40,000 event records for demanding security installations.

Professional Features & Benefits

  • Extensive User Management: 2000 PIN user codes with multilevel security access control for large facilities and organizations requiring comprehensive user management.
  • Dual Voltage Compatibility: Works with 12V or 24V (AC or DC) systems, providing flexible installation options for various electric door strikes and mag locks.
  • Weatherproof Construction: Operates reliably in temperatures from -31°F to 151°F (-35°C to +66°C) for outdoor and harsh environment installations.
  • High-Current Rated Relays: Features 2 x 8A relays for entry, alarm zone shunting, or lock release by real-time schedule programming.
  • Comprehensive Audit Trail: Records up to 40,000 events with report/print capability to PC, handheld printer, or DTMIII Data Module for security monitoring.
  • Vandal-Resistant Design: All-metal 12-button keypad construction withstands tampering and provides long-term durability in high-traffic areas.
  • Flexible Programming: Keypad or PC programmable with 500 scheduled events and real-time clock for automated access control.
  • Wireless Communication: Network keypad capabilities provide advanced connectivity options for integrated security systems.

Technical Specifications

  • Wall Mount: Single gang box mounting
  • Wiring: Unit provides flying leads for power, relays, tamper and remote release
  • I/O Specs: 2 form C relays, 5A minimum contact rating. Red & green LED indicators. 1 remote release input. Sounder and tamper.
  • Power: Operating voltage 12–24VAC/DC field selectable

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage (12V or 24V AC or DC) and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including PIN codes, access levels, and scheduling features per application requirements.
  6. Restore power and test all functions including keypad operation, relay functions, and audit trail recording.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Industrial Facility Access Control
  • Healthcare Institution Security
  • Educational Facility Safety Systems
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Retail Loss Prevention Systems

Weatherized Construction

The PDK3000 features weatherproof construction designed for reliable operation in outdoor and harsh environment installations. Operating temperature range from -31°F to 151°F (-35°C to +66°C) ensures dependable performance in extreme weather conditions while maintaining security functionality.

Why Choose Alarm Lock Quality?

Alarm Lock Trilogy keypads provide proven reliability with tamper supervision reportable to alarm systems, remote release features, and request-to-exit input capabilities. The weatherproof construction and all-metal 12-button design ensure dependable performance in demanding commercial environments with professional-grade durability rated for up to 40,000 event records and comprehensive security monitoring.

Product Specs

Series:
Trilogy Keypad
Keypad:
Electronic, 12 metal buttons
Application:
Wireless Keypads and Prox Reader
Weather Resistant:
Yes
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Subcategory:
Readers, Keypads and Credentials
Wireless Communication:
Yes
Product Type:
Network Keypad
Product Model:
PDK3000
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Lock PDK3000 US26D – Frequently Asked Questions

1) Will the Alarm Lock PDK3000 keypad work outside on an exterior door in a cold climate?
Yes. The PDK3000 is built weather resistant and rated to operate from -31F to 151F (-35C to +66C), so exterior gates, parking entries and unheated vestibules are within its range. The housing is all metal with 12 metal buttons, which also holds up where a plastic keypad gets beaten on.
2) What power supply do I need for an Alarm Lock PDK3000, and can it release an electric strike or mag lock directly?
Operating voltage is 12 to 24 VAC or VDC, field selectable, so one unit drops onto either a 12V or a 24V supply without ordering a different part. It switches the lock itself through two form C relays rated 5A minimum contact rating (described as 2 x 8A relays), which covers typical electric strikes and mag locks. Size the supply for the lock plus the keypad, since the relay is a dry contact passing your power, not a source.
3) Does the Alarm Lock PDK3000 read prox cards, or is it PIN only?
Both. There is a built-in HID proximity reader alongside the 12-button keypad, and it reads most HID cards and keyfobs. That lets you run cards for staff and PIN codes for contractors off the same reader without adding a second device at the door.
4) How many users can the PDK3000 hold, and will it keep an audit trail for a large building?
2000 PIN user codes with multilevel access control, and an audit trail of up to 40,000 events. Reports can go to a PC, a handheld printer, or a DTMIII Data Module. For a multi-tenant or institutional site that needs to show who opened a door and when, that record depth is the reason to pick this over a standalone code lock.
5) Is the PDK3000 a lock, or do I still need to buy a locking device for the door?
It is a keypad and prox reader that controls a door, not a lock itself. There is no latch or cylinder in it. You still need the locking hardware, an electric strike or a mag lock, plus the power supply, and the keypad's relay releases it. That is the split to plan for on a quote: reader, lock, power, and the exit device or push button on the inside.
6) How does the PDK3000 mount and what wiring comes out of it?
It mounts to a single gang box, so an installer can pull it off a standard back box at the opening. The unit provides flying leads for power, relays, tamper and remote release rather than a terminal strip, so plan for splices in the box and leave enough slack for service.
7) Can I schedule the PDK3000 to unlock a door automatically during business hours?
Yes. It carries a real-time clock and 500 scheduled events, and the relays can be driven by real-time schedule programming for entry, alarm zone shunting, or lock release. So a storefront or office can auto-unlock in the morning and relock at close without anyone touching the keypad. Programming is done at the keypad or from a PC.
8) Can I tie a PDK3000 into an existing alarm panel and a request-to-exit button?
It has a sounder and tamper output, with tamper supervision reportable to an alarm system, plus one remote release input for a push-to-exit button or a front-desk release. Red and green LED indicators give local status. That is what makes it usable as a door controller inside a larger security system rather than a standalone lock.
9) What finishes does the Alarm Lock PDK3000 keypad come in?
Four: Metallic Bronze (MB), Metallic Silver (MS), Oil Rubbed Bronze (US10B) and Satin Chrome (US26D). US26D satin chrome and US10B oil rubbed bronze are the standard architectural finish codes, so a property manager can match the keypad to the levers and closers already on the other openings instead of hanging a mismatched silver box on a bronze entrance.
10) Is the Alarm Lock PDK3000 rated for commercial use or is it a residential keypad?
Commercial. It is specified for commercial applications, and the feature set matches that: 2000 users, multilevel access levels, 40,000-event audit trail and a vandal-resistant all-metal button set for high-traffic openings. Typical placements are commercial buildings, industrial facilities, healthcare and education sites, government buildings and multi-tenant residential.
