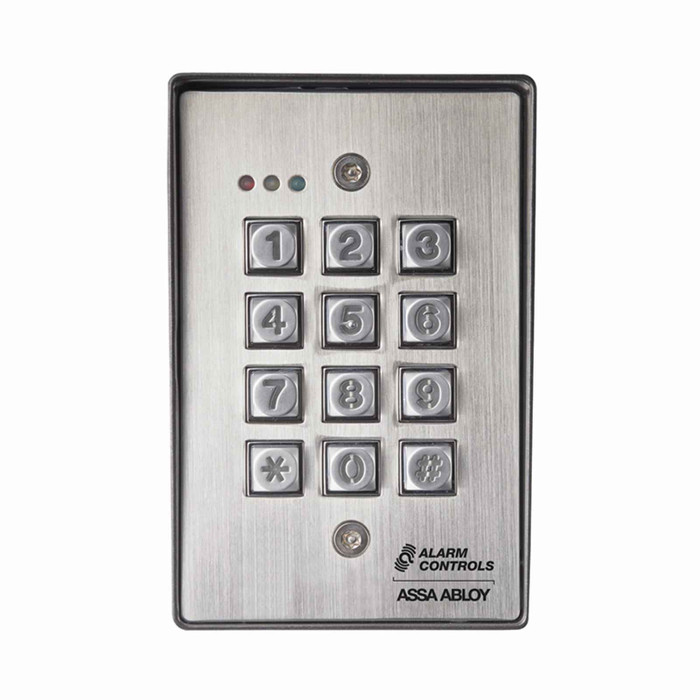

Alarm Controls KP-400 Series - Tamper Resistant Weatherproof Digital Keypad with Metal Backbox

Alarm Controls -  KP-400 Series - Tamper Resistant Weatherproof Digital Keypad with Metal Backbox

Self-contained digital keypad. Vandal resistant
and weather resistant with durable backlit
metal keys, housing, and back box; designed
for indoor and outdoor applications.

Features
Standard Features
• Surface mount with black back box and 302 stainless steel faceplate with tamper-proof screws
• True 10-digit operation (10 digits plus * and # keys)
• Multiple outputs allow control of up to two devices (100 users on output 1,10 on output2)
• Fully programmable from the keypad
• Programmable passage and false-code lockout mode capabilities
• Built-in tamper switch
• Red, green and yellow LEDs for status and programming feedback
• Request to Exit (REX) input
• Duress output and door prop open alarm
• Black powder coated die cast aluminum back box
• Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
• For indoor or outdoor applications
• 3 year warranty

Certifications & Listings
• Conforms to IP66
Dimensions
• Keypad with Back Box: 3-1/8" W x 4-1/2" L x 1-3/4" to 2-1/2" D
Electrical
• Operating voltage: 12 or 24 VAC or VDC, auto sensing
• Operating Current: 12VDC: 10 mA at rest, 100 mA active; 24VDC: 22 mA at rest, 120 mA active
• Output 1: SPDT rated 5A at 24VDC
• Output 2: SPDT rated 1A at 24 VDC

Operating Temperature
• -4°F to +158°F [-20°C to +70°C]
• Humidity: 5-95% relative humidity non-condensing
Shipping Weight
• 1 lb [0.45 kg]

Resources:

• Alarm Controls Product Catalog
• Alarm Controls KP-400 Keypads Operating Manual
