SDC FS23M Series - Spacesaver Dual Failsafe Right Angle Electric Bolt Locks

Designed and patented by SDC, Spacesaver® right angle bolt locks represent a fundamental innovation in electric locking technology for access control applications. Spacesaver® bolts project at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple mortise cutout, in virtually any standard frame, or in most door lock stiles. With the entire lock concealed, aesthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical.

FS23M locks are equipped with nylon bolts with hardened magnet cores, specification grade solenoids and automatic relock ball switches. Bolts rotate freely, making attempts to tamper or cut extremely difficult. Specification grade solenoids facilitate superior overall performance in both force and longevity, when compared to commercial grade solenoids. Automatic relock ball switches keep the bolt retracted while the door is open. The door depresses the ball switch on closure, causing the bolt to project automatically, locking the door. Additionally, ball switches are field adjustable to compensate for wide door gap and bidirectional to permit use on swinging and sliding doors.

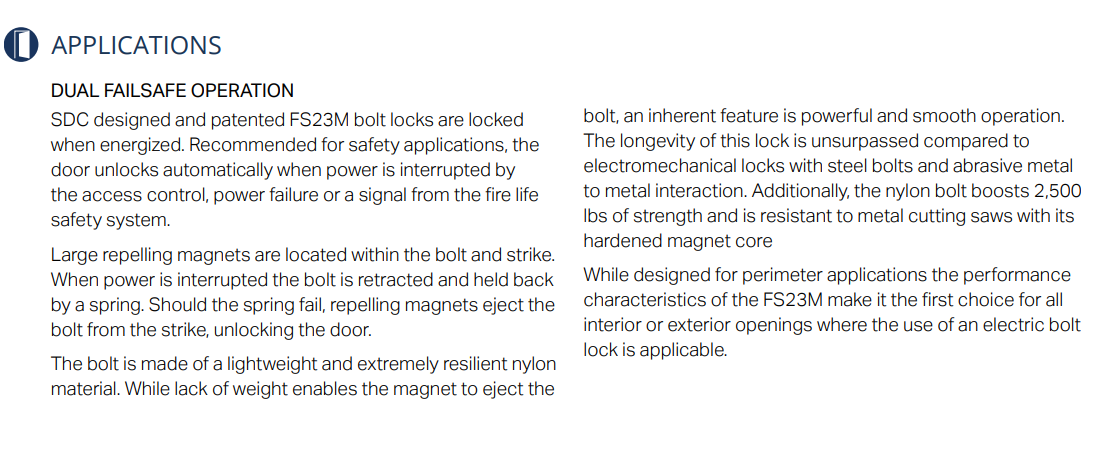

Dual failsafe bolt locks are available only from SDC. Conventional failsafe locking bolts rely solely on a spring to retract the bolt while the FS23M bolt will unlock with or without the assistance of the spring. This is the only electric bolt lock listed by the California State Fire Marshal for locking of perimeter entrance and emergency exit doors after hours. Large repelling magnets are located within the bolt and strike. Should the spring fail, repelling magnets eject the bolt from the strike, unlocking the door.

STANDARD FEATURES

• Concealed mortise right angle design
• Nylon bolt with hardened magnet core
• Repelling bolt and strike magnet
• Specification grade solenoid
• Automatic relock
• Field adjustable and bidirectional automatic
relock ball switch
• Mounting tabs included
• Field selectable dual voltage
• Voltage and current spike protection
• Power regulator included

CERTIFICATIONS
UL 10C Positive Pressure Fire Tests of Door Assemblies
ULC-S104 Standard Method for Fire Tests of Door Assemblies
ULC-S533 Egress Door Securing and Releasing Devices
CSFM Listed 3774-0324:0001

RESOURCES

FS23M-Datasheet.pdf (sdcsecurity.com)

INSTALLATION
