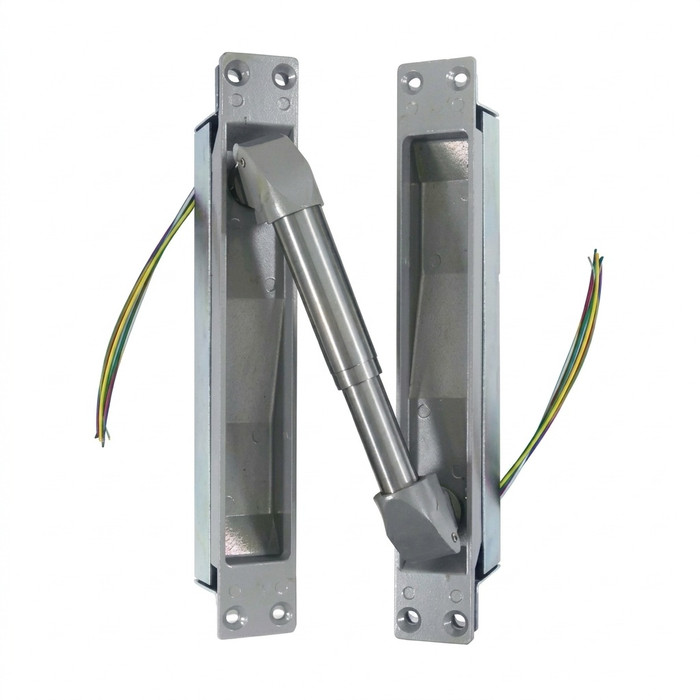

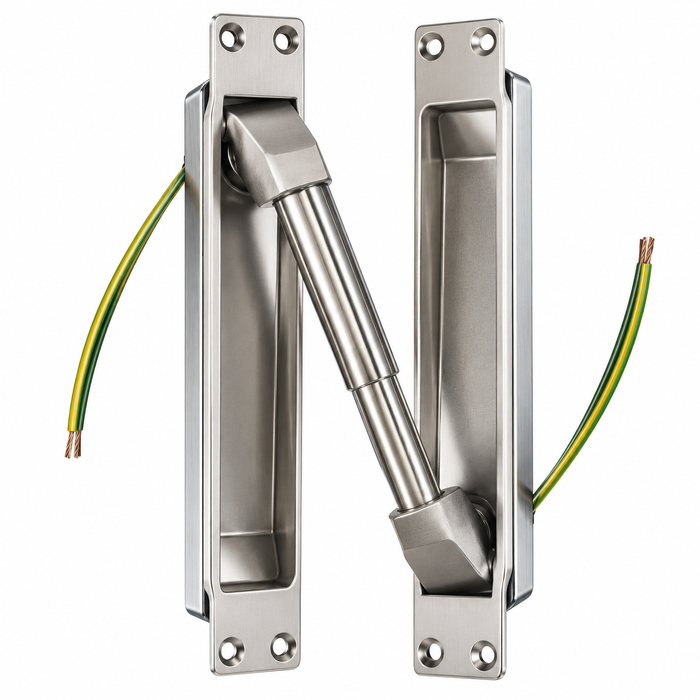

SDC PTM Series Electrified Mortise Power Transfer Device with Tamper Resistant Design
Concealed Power Transfer Solution for High-Security Applications
The SDC PTM Series electrified mortise power transfer device provides a completely concealed and secure method for transferring electric lock and exit device power and signal wires from frame to door. Available in 2-conductor (PTM-2) and 10-conductor (PTM-10) configurations with 1-3/4"; door thickness compatibility, this heavy-duty device features all-metal construction with heavy cast housing and steel back box. Designed for 180-degree door opening applications, the PTM Series delivers tamper-resistant and weather-resistant performance in demanding commercial environments.
Professional Features & Benefits
- Door Thickness Compatibility: Designed for 1-3/4"; door thickness with 180-degree opening capability for versatile installation options.
- Dual Conductor Options: Available as PTM-2 (two conductor) and PTM-10 (ten conductor) models to accommodate various wiring requirements.
- Heavy-Duty Construction: All-metal design with heavy cast housing and steel back box provides exceptional durability for high-traffic commercial applications.
- Tamper-Resistant Design: Completely concealed when door is closed with tamper-resistant construction to inhibit unauthorized access and abuse.
- Weather-Resistant Performance: Weather-resistant design ensures reliable operation in various environmental conditions.
- Stainless Steel Wire Transfer: Stainless steel tubular wire transfer mechanism provides corrosion resistance and long-term reliability.
- Complete Installation Package: Pre-wired design with included fasteners for wood, steel, and aluminum doors and frames for streamlined installation.
- Concealed Operation: Mortise installation provides completely hidden wire transfer when door is closed for enhanced security and aesthetics.
Technical Specifications
- Commercial/Residential: Commercial
- Department: Door Hardware
- Door Opening Size: 180 Degrees
- Door Thickness Range: 1-3/4";
- Electronic: Yes
- PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
- Product Category: Electronic Access Controls
- Product Dimension: 10-1/2"; x 4"; x 2";
- Product Group: Electronic Access Controls
- Product Model: PTM-2, PTM-10
- Product Subgroup: Controllers, Power Supplies and Transformers
- Product Type: Power Transfer Devices
- Series: PTM Series
- Subcategory: Power Transfer Devices
Professional Applications
- Commercial Building Security Systems
- Healthcare Facility Access Control
- Educational Institution Safety Systems
- Government and Municipal Buildings
- Industrial Facility Monitoring
- High-Security Commercial Applications
- Multi-Tenant Office Buildings
Tamper-Resistant Design
The PTM Series features completely concealed operation when the door is closed, combined with heavy cast housing construction to inhibit tampering and abuse. This design makes it ideal for high-traffic applications and environments requiring enhanced security where visible wiring connections could be vulnerable to unauthorized access or vandalism.
Why Choose SDC Quality?
SDC PTM Series power transfer devices deliver professional-grade reliability with all-metal construction featuring heavy cast housing and stainless steel components for demanding commercial applications. The tamper-resistant and weather-resistant design ensures dependable performance in high-security environments where concealed wire transfer is essential. Engineered for heavy-duty use with pre-wired convenience and comprehensive fastener packages for multiple door and frame materials.
Manufacturer Resources
SDC Full Catalog
Product Specs
- Series:
- PTM Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Controllers, Power Supplies and Transformers
- Subcategory:
- Power Transfer Devices
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Type:
- Power Transfer Devices
- Product Model:
- PTM-2, PTM-10
- Door Thickness Range:
- 1-3/4"
- Product Dimension:
- 10-1/2" x 4" x 2"
- Door Opening Size:
- 180 Degrees
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
SDC PTM-2AL – Frequently Asked Questions
1) What is the SDC PTM series used for?
The PTM series provides electrified mortise power transfer for doors requiring electrical connection. These devices transfer power from the frame to door-mounted access control hardware like electric locks, keypads, and card readers.
2) Which door types work with PTM mortise power transfer devices?
PTM units work with wood, hollow metal, and aluminum doors in standard mortise prep applications. Compatible with most commercial door frames. Verify door weight capacity and mortise dimensions before installation.
3) Are PTM devices available for left and right hand doors?
Yes, PTM series offers both left hand and right hand configurations. Some models may be field reversible. Confirm hand orientation and swing direction when ordering to ensure proper operation.
4) What finishes are available for the PTM series?
Standard finishes typically include satin chrome, dark bronze, and black. Some models offer additional architectural finishes. Check specific model availability for finish options that match existing door hardware.
5) What power capacity do PTM mortise transfer devices handle?
PTM devices handle low voltage applications typically 12V or 24V DC. Power capacity varies by model. Confirm voltage requirements and current draw of connected devices before selection. Consult manufacturer specifications for exact ratings.
6) Do PTM power transfer devices meet fire door requirements?
Many PTM models are listed for use on fire-rated doors when properly installed. Check UL listings and fire door compatibility for specific applications. Installation must follow manufacturer template and fire door requirements.
7) What components are included with PTM power transfer kits?
Kits typically include frame-mounted transfer unit, door-mounted receiver, mounting hardware, and installation template. Wire harnesses may be included. Verify complete kit contents and any separately ordered accessories needed.
8) How difficult is PTM mortise power transfer installation?
Installation requires standard door hardware tools and mortising equipment. Follow manufacturer template precisely for frame and door prep. Electrical connections need low voltage wiring knowledge. Professional installation recommended for optimal performance.
9) Do PTM devices require regular maintenance?
PTM units need periodic inspection for proper alignment and contact integrity. Clean contact points as needed. Check for loose connections and proper door operation. Schedule regular maintenance to ensure reliable power transfer.
10) Are there alternative SDC power transfer options?
SDC offers continuous hinge power transfer and other electrified transfer methods. Consider door application, power requirements, and aesthetic preferences when selecting transfer type. Browse SDC products for complete options.
11) Can PTM devices work in high traffic applications?
PTM mortise transfer devices are designed for commercial duty cycles. Heavy traffic applications may require more robust models or additional maintenance. Consider door usage frequency and operational requirements for proper model selection.
12) What are the standard mortise dimensions for PTM installation?
PTM devices typically use standard 1-1/4" x 8" mortise prep similar to standard mortise locks. Exact dimensions vary by model. Always use manufacturer template for precise measurements and avoid field modifications that could affect performance.
