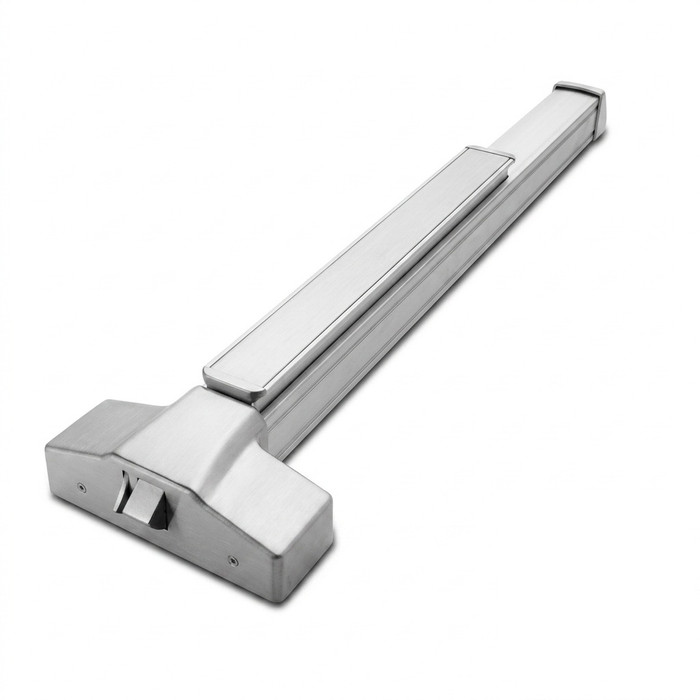

SDC S6000 Series - 48" Spectra S6000 Electrified Architectural Rim Exit Devices

SDC S6148 Spectra S6000 Series 48" Electrified Architectural Rim Exit Device with 4" Wide Stile

(No reviews yet) Write a Review

Model: S6101PU48
$909.00
$597.61

In Stock (leaves warehouse same day if ordered before 3pm ET)

$909.00
$597.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC Spectra S6000 Series 48"; Electrified Architectural Rim Exit Device with 4"; Wide Stile

Professional Electrified Exit Device Solution

The SDC Spectra S6000 Series electrified architectural rim exit device delivers professional-grade security and access control integration for commercial applications. This 48"; device features a 4"; wide stile design with 3/4"; latch throw and accommodates door thickness from 1-3/4"; to 2";. Constructed with durable stainless steel for corrosion resistance and high traffic use, this UL listed device meets ANSI/BHMA A156.3 Grade 1 standards for superior performance.

Professional Features & Benefits

  • Door Width Compatibility: 48"; device with 4"; wide stile design accommodates various door configurations and architectural requirements.
  • Heavy-Duty Construction: Durable stainless steel construction provides corrosion resistance and reliability for high traffic commercial applications.
  • Electrified Integration: Multiple electrified options complement access control systems to meet virtually any application requirement.
  • Professional Certifications: UL 305 Panic Hardware, UL 10C Positive Pressure Fire Tests, and ANSI/BHMA A156.3 Grade 1 compliance ensure code compliance and safety.
  • Architectural Design: Modern electrified architectural design with quiet push pad operation for professional appearance and smooth function.
  • Versatile Door Compatibility: Accommodates door thickness from 1-3/4"; to 2"; with 3/4"; latch throw for secure latching performance.
  • Panic and Fire Rated: Designed for both panic and fire rated exit applications with compliance to national and state building codes.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Thickness Range: 1-3/4"; to 2";
  • Electronic: Yes
  • Fire Rating: No
  • Latch Throw: 3/4";
  • PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: S61
  • Product Size: 48";
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: S6000 Series
  • Stile Type: Wide Stile
  • Stile Width: 4";
  • Subcategory: Rim Exit Devices
  • Wood Door Compatible: No

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose SDC Quality?

SDC Spectra S6000 Series exit devices deliver professional-grade reliability with durable stainless steel construction rated for high traffic commercial use. UL listed with ANSI/BHMA A156.3 Grade 1 compliance ensures superior performance and code compliance. Engineered for demanding commercial applications where dependable electrified access control integration is essential.

Manufacturer Resources

SDC Full Catalog

Product Specs

Series:
S6000 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4"
Commercial/Residential:
Commercial
Latch Throw:
3/4"
Electronic:
Yes
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
S61
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4" to 2"
Product Size:
48"
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

SDC S6101PU48 – Frequently Asked Questions

1) Will the SDC S6148 rim exit device fit a 48 inch wide door?
The S6148 is the 48 inch size in SDC's Spectra S6000 rim device line, so it is sized for 4 foot wide openings. It uses a 4 inch wide stile pushpad chassis, which means the door's lock stile has to be wide enough to take that chassis. On a narrow stile aluminum storefront door, this is the wrong device and you want a narrow stile rim device instead.
2) What door thickness does the SDC Spectra S6000 rim exit device work on?
It covers 1-3/4 inch through 2 inch doors. That takes in the standard 1-3/4 inch commercial hollow metal door and the thicker 2 inch leaves you see on some storefront and specialty openings. Anything over 2 inches is outside the range.
3) What electrified options can I order on the SDC Spectra S6000 rim device?
Six choices on that axis: A for battery powered alarmed exit, B for hardwired alarmed exit, E for motorized electric latch retraction with electric dogging, EM for the same motorized latch retraction and dogging with an external power module, G for electric dogging only, or None for a purely mechanical device. Pick E or EM when the access control system has to pull the latch back for remote entry or free ingress; G only releases the pushpad to a pushed state and does not retract the latch on command from a credential reader.
4) Can I get latch monitoring or a request-to-exit switch in the SDC S6148?
Yes, both are factory options. L gives you a latch status switch so the head end knows whether the latch is actually projected, and R gives you a request-to-exit signal so pushing the pad shunts the alarm instead of tripping it. You can also order the device with neither. For an access controlled opening tied into an alarm panel, the REX option is usually the one integrators want.
5) What trim functions are available for the SDC S6000 rim exit device?
Five: 01 exit only with no outside trim, 02 dummy trim with no cylinder prep, 03 nightlatch where the key retracts the latchbolt, 08 classroom where the key locks and unlocks the lever, and 14 passage with the lever always active. For a tenant entry where staff need key access from outside, 03 or 08 are the ones to order; 01 is the choice on a stairwell or rear egress door that nobody enters through.
6) Which other 48 inch rim exit device can I use if I do not need electrification?
For a mechanical 48 inch rim device, the Dormakaba DORMA 9300 Series 48 inch is a Grade 1 heavy duty wide stile exit only device with a 1-3/4 to 2-1/4 inch door thickness range, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device for 1-3/4 inch doors. The CRL Jackson 1095 Series 48 inch crossbar and the Cal-Royal 5500 48 inch push bar are also 48 inch wide stile rim devices. The SDC S6148 is the one to keep if you need the electrified side, since it is an electronic device with alarmed, electric dogging and electric latch retraction options.
7) What is the closest alternative to the SDC S6148 rim exit device if the opening needs a fire label?
The SDC S6148 Spectra S6000 is not fire rated, so on a labeled opening look at a fire rated rim device instead. The Marks USA M9900F comes in a 48 inch exit only version with a panic protector end cap, and the Dexter ED1000 Series fire rated rim device is Grade 1. The Adams Rite 3700 Series 30 inch is fire rated, Grade 1, narrow stile, and wood door compatible if the leaf is narrow stile. Note that none of those carry the S6148's electrified functions such as motorized electric latch retraction or electric dogging.
8) My opening is a narrow stile aluminum door - can I use the SDC S6148?
No. The SDC S6148 is built on a 4 inch wide stile, so a narrow stile aluminum leaf needs a narrow stile device. The Adams Rite 8800 Series 30 inch is Grade 1 narrow stile with a 1-3/4 to 2-1/4 inch door thickness range, the Falcon 1590EO is a Grade 1 narrow stile exit only device for 1-3/4 inch doors, and the TownSteel ED3700 36 inch is a Grade 1 heavy duty narrow stile rim device.
9) Do I need to specify handing for the SDC S6000 exit device?
No handing to call out. The S6000 rim device is non-handed, so one device covers left and right hand openings. What you do have to specify is the trim function, the electrified option, and any monitoring switch.
10) Will the SDC S6148 latch into the strike already on my frame?
The device throws a 3/4 inch latchbolt into a surface mounted rim strike on the frame stop. If your existing opening already runs a rim exit device, the strike location and throw generally carry over, but a rim strike is device specific in its cutout and screw pattern, so plan on mounting the strike supplied for the S6000 rather than reusing an old one.
11) Should I use a rim exit device or a vertical rod device on my opening?
A rim device like the SDC S6148 latches sideways into a strike on the frame, so it suits a single door in a frame, or a pair with a mullion between the leaves. If you have a pair of doors with no mullion, a rim device has nothing to latch into on the inactive side and you want a vertical rod device instead, such as the Hager 4501 Series concealed vertical rod device for a wide stile leaf.
12) What is a simpler wide stile rim device than the SDC S6148 for a back-of-house door?
If you only need mechanical egress on a wide stile door, the BEST Precision 2101 Series 36 inch wide stile rim device, the Corbin Russwin ED2200 36 inch Grade 1 exit only, and the TownSteel ED1100 36 inch Grade 1 heavy duty panic rim device are straightforward exit only options. The Detex 10 Advantex 36 inch is Grade 1 extra heavy duty wide stile if the door sees hard traffic. All of these skip the electrified features of the S6148.
13) Is the Securitron EMB a substitute for the SDC S6148?
Not directly. The Securitron EMB is an electromechanical exit bar listed for a 2-1/4 inch door thickness, while the SDC S6148 is a rim exit device with a 3/4 inch latch throw for doors 1-3/4 to 2 inches thick, mounting to a rim strike. They solve egress differently, so confirm the door prep and thickness before treating one as a swap for the other.
14) I need a nightlatch function rim device - does the SDC S6148 offer it, or should I look elsewhere?
The SDC S6148 does offer a 03 key retracts latchbolt nightlatch trim function alongside dummy, classroom and passage trims. If you want a mechanical alternative, the Sargent 8504 is a Grade 1 narrow stile rim device in night latch function, and the Detex V4003A/03AN is a Grade 1 wide stile rim device supplied with night latch trim.
15) How does the SDC S6148 compare with Grade 2 rim devices like the Cal-Royal 5500?
The Cal-Royal 5500 is a 48 inch heavy duty rim device with a push bar carrying a Grade 2 chassis rating, and the Cal-Royal A9820 is a 48 inch heavy duty exit only device also listed Grade 2. The SDC S6148 is built to ANSI/BHMA A156.3 Grade 1 with stainless steel construction and adds electrified options. If your spec sheet calls out Grade 1, the Cal-Royal pair will not satisfy it.
16) Is the SDC S6148 suitable for a high traffic building entrance?
It is built for commercial duty, stainless steel construction for corrosion resistance and high traffic use, with a quiet pushpad. Typical placements are office buildings, schools, healthcare, retail, warehouses, multi-tenant residential and municipal buildings. For a property manager standardizing openings, the non-handed chassis means one part number covers both swings across a floor.
17) Which crossbar-style device is an alternative to the SDC S6148 push pad?
The SDC S6148 uses a quiet push pad. If the specification or the building's existing hardware calls for a crossbar, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device for 1-3/4 inch doors and the CRL Jackson 1095 Series 48 inch is a crossbar rim panic device in exit only, wide stile. Sargent also offers the 3828, a Grade 1 reversible standard push bar rim device for 48 inch doors.
