SDC S62 Series - 42" Spectra S6000 Electrified Surface Vertical Rod Exit Devices

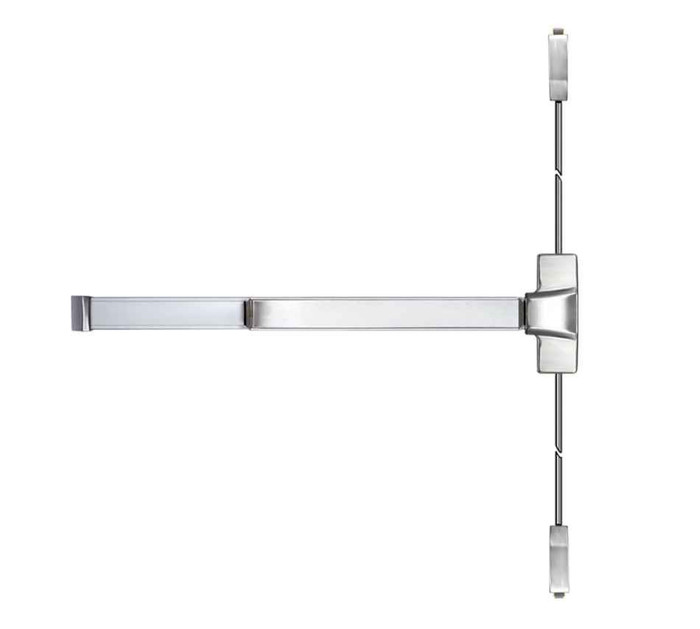

SDC S62PU-42 Spectra S6000 Series 42" Electrified Surface Vertical Rod Exit Device with Wide Stile Design

(No reviews yet) Write a Review

Model: S6201PU42
$1,313.00
$1,125.58

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,313.00
$1,125.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC Spectra S6000 Series 42"; Electrified Surface Vertical Rod Exit Device with Wide Stile Design

Professional Electrified Exit Device Solution

The SDC Spectra S6000 series electrified surface vertical rod exit device combines modern architectural design with reliable panic hardware functionality for 42"; door applications. Featuring durable stainless steel construction and 4"; wide stile design, this UL listed device accommodates door thickness from 1-3/4"; to 2"; with 3/4"; latch throw. ANSI/BHMA A156.3 Grade 1 compliant construction ensures reliable performance in high-traffic commercial applications.

Professional Features & Benefits

  • Door Compatibility: Designed for 42"; doors with 4"; wide stile configuration and accommodates door thickness from 1-3/4"; to 2"; for versatile installation options.
  • Heavy-Duty Construction: Durable stainless steel construction provides corrosion resistance and long-term reliability for high-traffic commercial use.
  • Electrified Integration: Multiple electrified options available to complement access control systems and meet virtually any application requirement.
  • Grade 1 Performance: ANSI/BHMA A156.3 Grade 1 compliant design ensures professional-grade reliability and durability standards.
  • Modern Design: Electrified architectural design with quiet push pad operation provides contemporary appearance and smooth functionality.
  • Code Compliance: UL 305 Panic Hardware and UL 10C Positive Pressure Fire Test certifications ensure compliance with national and state building and fire life safety codes.
  • Versatile Configuration: Available in both panic and fire rated versions with surface vertical rod mounting for flexible application requirements.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Dimension Height: 84";
  • Door Hand Direction: Non-Handed
  • Door Thickness Range: 1-3/4"; to 2";
  • Electronic: Yes
  • Fire Rating: No
  • Latch Throw: 3/4";
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: S62
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: S6000 Series
  • Stile Type: Wide Stile
  • Stile Width: 4";
  • Subcategory: Rim Exit Devices

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose SDC Quality?

SDC Spectra S6000 series exit devices deliver professional-grade reliability with durable stainless steel construction and ANSI/BHMA A156.3 Grade 1 compliance. UL 305 Panic Hardware and UL 10C Positive Pressure Fire Test certifications ensure code compliance and dependable performance. Engineered for demanding commercial applications where reliable panic hardware and electrified integration are essential.

Manufacturer Resources

SDC Full Catalog

Product Specs

Series:
S6000 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Stile Width:
4"
Commercial/Residential:
Commercial
Latch Throw:
3/4"
Electronic:
Yes
Stile Type:
Wide Stile
Product Model:
S62
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4" to 2"
Door Dimension Height:
84"
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

SDC S6201PU42 – Frequently Asked Questions

1) Will the SDC Spectra S62 exit device fit a 42 inch wide door with a 4 inch stile?
Yes. The S62 Spectra S6000 surface vertical rod device is sized for 42 inch doors and uses a wide stile push pad requiring a 4 inch stile. It fits door thicknesses from 1-3/4 to 2 inches, and the standard door height for the rod set is 84 inches. If your stile is narrower than 4 inches, you need a narrow stile device instead.
2) Can the SDC S62 secure a pair of doors without a center mullion?
Yes. It is a surface vertical rod device, so it latches at the head and the sill rather than into a strike on a mullion. That is what makes it the right choice for a pair of doors where you need a clear opening. A rim device like the Corbin Russwin ED5200 latches into the frame or a mullion instead, so for pairs it would require a removable mullion.
3) What trim functions can I get with the SDC S62 electrified exit device?
Five trim choices: 01 exit only with no trim, 02 dummy trim with no cylinder prep, 03 key retracts latchbolt (nightlatch), 08 key locks and unlocks the lever (classroom), and 14 lever always active (passage). Pick 03 for a service door where staff key in, 08 for classroom or office control, and 14 where the opening stays free during business hours.
4) What electrified options are available on the SDC Spectra S6000 S62 device?
Six choices on the electrified option, and it is a required selection: none, E for motorized electric latch retraction and dogging, EM for the same with an external module, G for electric dogging, A for a battery powered alarmed exit, and B for a hardwired alarmed exit. Choose E or EM when access control needs to retract the latch for card-in entry, G when you only need to dog the pad electrically on a schedule, and A or B when the door is an alarmed emergency exit.
5) Can I get door position or latch monitoring from the SDC S62 for my access control system?
Two monitoring device options are offered: L for latch status, which reports whether the latch is secure, and R for request-to-exit, which signals the panel when the push pad is depressed so the door alarm shunts. Both are selected as the Device Option and can be combined with any of the trim functions.
6) Will the SDC S62 latch into my existing strike?
It has a 3/4 inch latch throw at top and bottom as a surface vertical rod device, so it engages a top strike at the head and a bottom strike at the threshold, not a side jamb strike. If you are replacing a rim device that latched into the frame edge, you will be drilling and setting new top and bottom strikes rather than reusing the old one.
7) I have a 2 inch thick door, will most exit devices work?
The SDC S62 covers 1-3/4 to 2 inches, so a 2 inch door is inside its range. Many rim devices are single thickness at 1-3/4 inches only, including the Corbin Russwin ED5200 and the Falcon 19-R. If you need more than 2 inches, the Adams Rite 8800 and the Dormakaba 9300 are listed to 2-1/4 inches.
8) My storefront doors have narrow stiles. Can I use the SDC S62?
No. The S62 is a wide stile device needing a 4 inch stile. On aluminum storefront with narrow stiles, look at a narrow stile rim device instead, such as the Adams Rite 8700 or 8800 with starwheel interlocking, the Falcon 1590EO in 42 inch, or the TownSteel ED3700.
9) The SDC S62PU-42 is not fire rated - what should I use on a fire rated opening instead?
The SDC S62PU-42 Spectra S6000 device carries a Fire Rating value of No, so for a labeled opening pick a device listed as fire rated. The Sargent 12-8810-LTRIM is a fire rated Grade 1 wide stile rim exit device that also includes RX and motorized electric latch retraction, which keeps you in electrified territory. The Dexter ED1000-R-F-EO is a fire rated Grade 1 rim exit device, and Marks USA M9900F is offered in 36 inch and 48 inch fire rated exit only versions.
10) My door has a narrow aluminum stile - is the SDC S62PU-42 still the right device?
No. The SDC S62PU-42 is built around a wide stile design with a 4 inch stile width, so a narrow aluminum stile needs a narrow stile device. In a 42 inch length, the Falcon 1590EO and the Falcon 1790EO are both Grade 1 narrow stile rim exit devices in exit only function for 1-3/4 inch doors. Adams Rite 8800 Series is another narrow stile rim device, rated Grade 1 and covering 1-3/4 inch to 2-1/4 inch doors.
11) My door is thicker than 2 inches - what takes the place of the SDC S62PU-42?
The SDC S62PU-42 covers a door thickness range of 1-3/4 inch to 2 inch. For a thicker leaf, the DORMA 9300 Series 48 inch wide stile panic rim exit device is listed for 1-3/4 inch to 2-1/4 inch doors and is Grade 1 heavy duty, and the Adams Rite 8800 Series covers the same 1-3/4 inch to 2-1/4 inch range in a narrow stile form. The Securitron EMB electromechanical exit bar is listed at 2-1/4 inch.
12) Is a rim exit device a direct swap for the SDC S62PU-42 vertical rod?
Not on a pair of doors without a usable strike condition. The SDC S62PU-42 is a surface vertical rod device that latches at the head and, unless ordered less bottom rod, at the sill. A rim device such as the Corbin Russwin ED2200 Grade 1 36 inch wide stile exit only or the BEST Precision 2101 36 inch wide stile rim device latches into a single strike on the frame or mullion, so the prep and strike locations differ. If you want to stay with vertical rod but hide the hardware, the Hager 4501 is a Grade 1 36 inch concealed vertical rod device with a wide stile pushpad.
13) What is the closest electrified alternative to the SDC S62PU-42 for an access controlled classroom door?
The SDC S62PU-42 can be ordered with trim function 08, key locks and unlocks lever for classroom use, plus electrified options including motorized electric latch retraction and electric dogging. A comparable electrified route is the Dormakaba E2103 36 inch electrified rim exit device with 4908A trim, which is listed in 08 classroom function. The Sargent 12-8810-LTRIM also combines RX with motorized electric latch retraction on a wide stile device.
14) Do I need to order the SDC S62 handed?
No handing to specify. The S62 is non-handed, so one device covers left and right hand openings, which is useful when you are standardizing across a building and want a single part on the shelf.
15) What is the LBR option on the SDC S62 and when should I use it?
LBR is Less Bottom Rod, panic only. It deletes the bottom rod and latch so the device latches at the head only. Contractors use it where floor conditions, carpet, or debris make a bottom strike a maintenance problem. Because it is offered as the panic version, use the standard top and bottom rod configuration where a bottom latch is required.
16) What is the difference between the SDC S62 surface vertical rod and a concealed vertical rod device?
On the S62 the rods run on the face of the door, so they can be installed on an existing door and serviced without pulling the door apart. A concealed vertical rod device, such as the Hager 4501 wide stile or the Hager 4601 narrow stile, hides the rods inside the door for appearance but needs a door prepped for it. Surface rod is the practical retrofit; concealed rod is the architectural finish.
17) Is the SDC Spectra S62 Grade 1?
Yes, it is built to ANSI/BHMA A156.3 Grade 1 with stainless steel construction, which is the level most institutional and MRO specs call for on high traffic exits. Grade 1 peers in the same class include the TownSteel ED1100 wide stile and the Dormakaba 8300 wide stile rim devices.
18) I just need a basic push pad exit device, no electronics. Is the SDC S62 overkill?
Probably. The S62 is an electrified device and the electrified option is a required selection, so you are specifying a powered product. For a straight mechanical exit with no access control, the TownSteel ED1100 or Dormakaba 8300 wide stile rim devices, or the Design Hardware 1000R with hex key dogging, cover that job without electronics.
19) I don't need access control on this door - what is a simpler wide stile device than the SDC S62PU-42?
The SDC S62PU-42 is an electrified device with options for motorized electric latch retraction, electric dogging, and alarmed exit. If the opening is purely mechanical egress, the TownSteel ED1100 is a 36 inch heavy duty Grade 1 wide stile panic rim exit device, the Detex 10 Advantex is a 36 inch extra heavy duty Grade 1 wide stile rim device, and the Corbin Russwin ED5200 is a Grade 1 36 inch wide stile rim device that will accept trim.
20) I need matching hardware on an inactive leaf beside the SDC S62PU-42 - what do I order?
The SDC S62PU-42 includes a dummy trim option, trim function 02 with no cylinder prep, on the working device. If the inactive leaf needs the look of panic hardware with no latching at all, the Detex Advantex 00 Series is a super heavy duty Grade 1 dummy exit device with wide stile design, which matches the wide stile appearance of the S62.
21) Is a Grade 2 device an acceptable stand-in for the SDC S62PU-42?
The SDC S62PU-42 is built to ANSI/BHMA A156.3 Grade 1. Cal-Royal 5000 in 36 inch and Cal-Royal 5500 in 48 inch are heavy duty rim exit devices listed at Grade 2, so if your spec calls out Grade 1 they will not satisfy it. Grade 1 peers in wide stile include the TownSteel ED9700 36 inch heavy duty and the DORMA 8300 Series wide stile panic rim device.
22) What is the difference between the SDC S62PU-42 and a crossbar exit device?
The SDC S62PU-42 uses a quiet push pad on a wide stile chassis with a 3/4 inch latch throw. Crossbar devices present a horizontal bar instead: the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device for 1-3/4 inch doors, and the CRL Jackson 1095 Series is a 48 inch crossbar rim panic device in exit only function. CRL Jackson also offers the 1095P with a paddle actuator.
