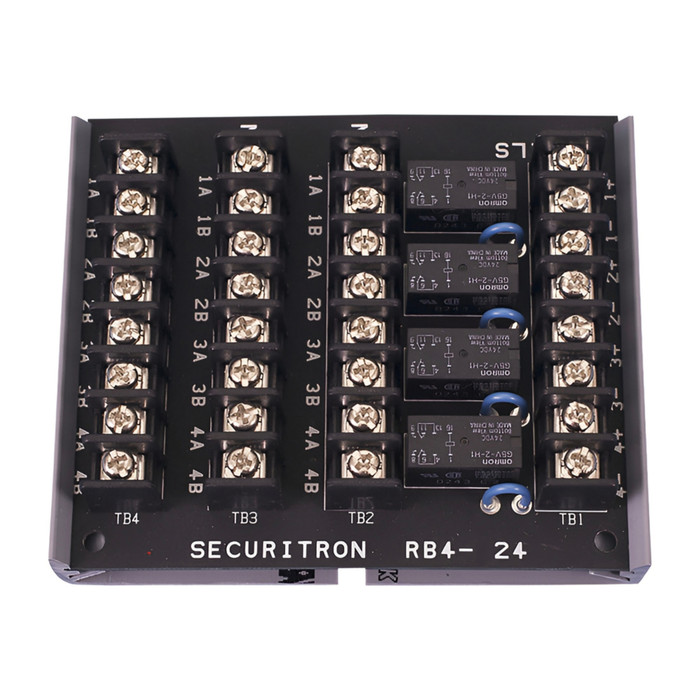

Securitron RB-4 Relay Board SEC-RB-4

Securitron RB-4 Relay Board

(No reviews yet) Write a Review

Model: RB-4-12

In Stock (leaves warehouse same day if ordered before 3pm ET)

$146.00
$99.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

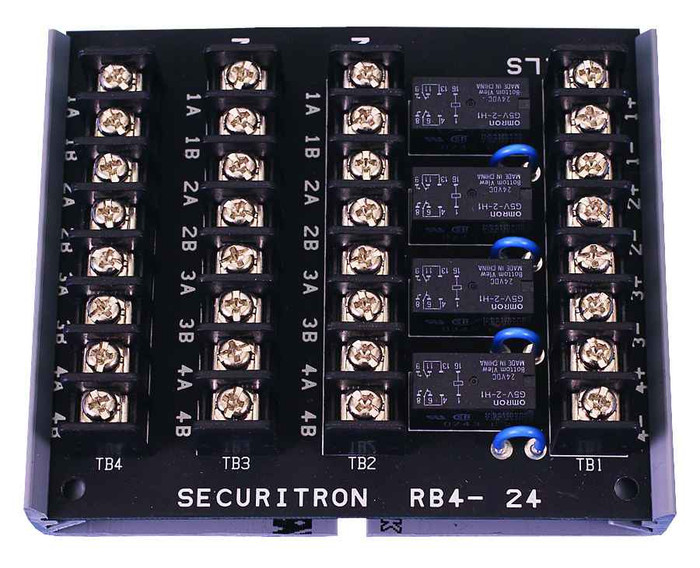

SECURITRON RB-4 RELAY BOARD

The RB4 board is used for interlock installations and where a basic relay board is needed.

The relay board provides normally-open or normally-closed relays that can be interconnected. Ideal for interlock installations or wherever a basic relay board is used to trigger action, shunt alarms or report status from an access control system.



FEATURES & BENEFITS

Product Features

  • Adds relays for uses including shunting, interlocking and reporting
  • Individual coil connections - common negative or positive
  • Replaces socket mount relays
  • Mounts 4 DPDT relays with 2 Amp contacts
  • All dry contact connections are brought out on screw terminals
  • Relays have low current coils (13mA at 12VDC; 8m



SEPCIFICATIONS

  • Operating Temperature: -13 to +158F [-25 to +70C]

Models

Part # Description
RB-4-12 Relay Board - 12VDC
RB-4-24 Relay Board - 24VDC







DOWNLOADS & RESOURCES

Manufacturer Resources

Product Specs

Series:
RB-4 Series
Subcategory:
Relays
Warranty:
Lifetime Replacement
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Relays
Commercial/Residential:
Commercial
Electronic:
Yes
Power:
13 mA at 12 VDC, 8 mA at 24 VDC
Product Model:
SEC-RB-4
Product Voltage:
12V/24V
Switch Device:
DPDT
Product Category:
Electronic Access Controls
Department:
Door Hardware

Securitron RB-4-12 – Frequently Asked Questions

1) What voltage do I order the Securitron RB-4 relay board in, and can one board run on both 12V and 24V?
The RB-4 comes as two separate boards: RB-4-12 for 12VDC and RB-4-24 for 24VDC. Pick the one that matches your access control power supply; the coil voltage is built into the board, so a single board does not cover both. Coil draw is 13 mA at 12 VDC and 8 mA at 24 VDC, which is low enough that four relays add little load to a typical access control supply.
2) How many relays are on the Securitron RB-4 board and what contact rating do they carry?
Four DPDT relays on one board, with 2 amp contacts. All the dry contact connections land on screw terminals, so you are not soldering or using relay sockets. Two amps per contact suits switching signal-level and small loads, shunting an alarm zone, or passing a status contact back to a panel; it is not a board for directly switching a large magnetic lock load.
3) Can I use the RB-4 to build a door interlock (mantrap) between two doors?
That is one of its intended uses. The RB-4 provides normally-open or normally-closed relays that can be interconnected, which is exactly what an interlock needs: one door's status contact inhibits the release of the other. With four DPDT relays on the board you have enough poles to cross-wire both directions and still have contacts left for status reporting.
4) What is the difference between the Securitron RB-4 relay board and the Aiphone RY-PA door release relay?
They solve different scopes of problem. The Securitron RB-4 is a multi-relay board that mounts four DPDT relays with 2 Amp dry contacts brought out on screw terminals, intended for interlock installations and for shunting, interlocking and reporting from an access control system, and it is ordered in either a 12VDC or a 24VDC version. The Aiphone RY-PA is a door release relay rated 12V DC with a normally open contact, built for use with the Aiphone LEF Series intercoms. If you need several interconnected contacts on one board, or a 24VDC coil, the RB-4 is the one that covers it; if you are simply adding door release to an LEF Series intercom, the RY-PA is the purpose-matched part.
5) My access control panel runs on 24VDC - which relay option works?
The Securitron RB-4 relay board is offered in a 24VDC version as well as a 12VDC version, and its relay coils draw 13 mA at 12 VDC and 8 mA at 24 VDC, so it can be driven from low-current access control outputs. The Aiphone RY-PA is a 12V DC door release relay, so it is not the choice for a 24VDC system. On a 24VDC panel, order the 24V version of the RB-4.
6) Do I get normally-open and normally-closed contacts, or do I have to pick one?
Both. Each relay is DPDT, so every relay gives you a normally-open and a normally-closed contact on each of its two poles. You choose which one you land on the screw terminal, which is why the same board works for shunting an alarm contact (usually N/C) and for triggering a release (usually N/O).
7) Will a Securitron relay board work in an unheated vestibule or a parking garage enclosure?
Operating temperature on the RB-4 is -13 to +158F (-25 to +70C), so an unconditioned vestibule, stairwell, or garage enclosure is within range. Like any relay board it still needs a dry, protected enclosure; the rating covers temperature, not water exposure.
8) I just need one relay to release a door. Is the RB-4 overkill?
For a single door release on an intercom system, yes, it is more board than you need. A single-relay device such as the Aiphone RY-PA door release relay, a 12V DC normally-open unit for LEF Series intercoms, handles one release point. Go to the RB-4 when you need several relays working together, an interlock, alarm shunting, or status reporting back to an access control panel.
9) Can I wire the RB-4 coils to a common positive, or does it have to be common negative?
Either. The coil connections are individual, with a common negative or common positive arrangement, so the board drops into panels that switch the ground side and panels that switch the positive side without rewiring the logic around it.
10) Is the RB-4 rated for commercial access control work?
It is a commercial-grade electronic access control component, used as the relay expansion in access control and interlock systems. Property managers and integrators standardizing a building can specify the same board at every panel location and just match the 12V or 24V coil to the supply at each.
