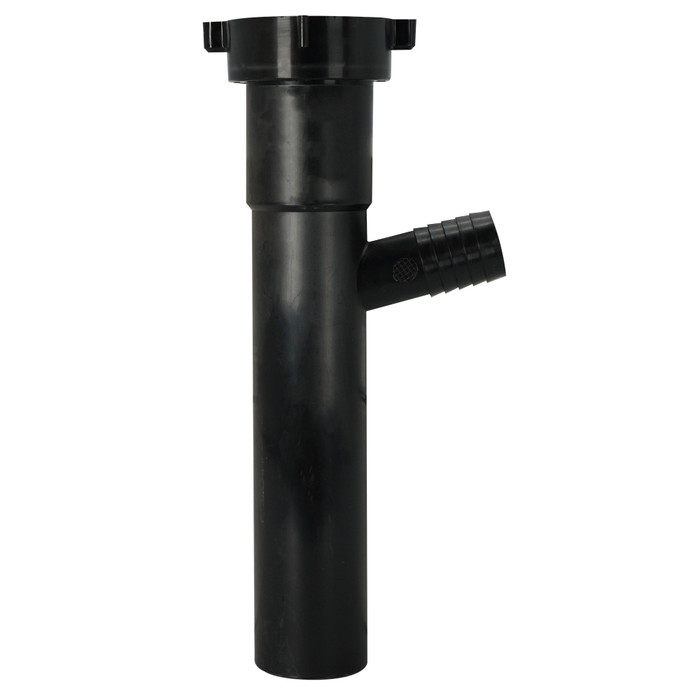

Sioux Chief 230-56160825 Dishwasher Tailpiece, 1-1/2" x 8" Direct Connect, Black with 3/4" DWBR

Sioux Chief 230-56160825 Dishwasher Tailpiece, 1-1/2" x 8" Direct Connect, Black with 3/4" DWBR

(No reviews yet) Write a Review

Model: 230-56160825

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 230-56160825 Dishwasher Tailpiece, 1-1/2" x 8" Direct Connect, Black with 3/4" DWBR

The Sioux Chief 230-56160825 is a direct-connect dishwasher tailpiece built for rough-in waste connections under the kitchen sink. Sized 1-1/2" x 8", this black tailpiece includes a 3/4" DWBR (dishwasher branch) connection point, letting a plumber tie the dishwasher drain hose directly into the tubular waste line without an additional branch fitting. It is designed to install behind the cabinet, out of sight, between the sink tailpiece assembly and the P-trap or continuous waste run. Packaged 25 EA per case, this part is intended for plumbing wholesalers and contractors stocking tubular brass or plastic waste fittings for new construction and remodel work.

Key Features

  • Trade Size: 1-1/2" x 8" tailpiece length, sized to match standard tubular waste and sink drain outlets.
  • Direct Connect Design: Built for direct connection to the dishwasher drain line, eliminating the need for a separate inline branch adapter.
  • 3/4" DWBR Branch: Integrated 3/4" dishwasher branch connection accepts the dishwasher drain hose at the correct size for secure attachment.
  • Black Finish: Molded in black for a consistent appearance where the tailpiece may be visible at the trap area.
  • Case Packaging: Supplied 25 EA per bag, suited to stocking distributors and contractors running multiple dishwasher hookups.
  • Made in the USA: Manufactured in the United States for consistent fit and finish on every tailpiece in the case.

Technical Specifications

  • Country of Origin: United States
  • Trade Size: 1-1/2" x 8"
  • Branch Connection: 3/4" DWBR
  • Color: Black
  • Packaging: 25 EA per bag

Typical Applications

  • Dishwasher Drain Hookups Under the Kitchen Sink
  • Tubular Waste and Tailpiece Replacement
  • New Construction Kitchen Rough-In
  • Kitchen Remodel and Sink Drain Repair
  • Plumbing Wholesale Stock for Dishwasher Connections

Why Sioux Chief?

Sioux Chief manufactures this dishwasher tailpiece in the United States, giving contractors and distributors a dependable, direct-connect fitting sized to match common tubular waste configurations. The integrated 3/4" DWBR branch and 1-1/2" x 8" sizing make it a straightforward drop-in for dishwasher drain connections, and case packaging of 25 EA supports high-volume stocking for plumbing supply houses and kitchen remodel crews.

Manufacturer Resources

Product Specs

Product Type:
Tailpiece
Connection Type:
Direct Connect
Configuration:
3/4" DWBR
Country of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Pipe and Tubing
Product Color:
Black
Product Size:
1-1/2" x 8"

Sioux Chief 230-56160825 – Frequently Asked Questions

1) Will the Sioux Chief 230-56160825 dishwasher tailpiece fit standard 1-1/2 inch kitchen sink waste?
Yes. The 230-56160825 is a 1-1/2 inch by 8 inch tailpiece, which matches standard tubular waste and sink drain outlets on a kitchen sink. It installs between the sink drain outlet and the P-trap or continuous waste run.
2) Do I still need a separate dishwasher wye branch fitting with this tailpiece?
No. The 230-56160825 has an integrated 3/4 inch DWBR (dishwasher branch) connection molded into the tailpiece, so the dishwasher drain hose ties directly into the tubular waste line. That removes the need for a separate inline branch adapter or tailpiece wye.
3) Can I use the 230-56160825 to replace an existing tailpiece on a sink that already has a dishwasher?
Yes, that is one of its intended uses. On a 1-1/2 inch tubular waste system it swaps in for a plain tailpiece or an older branch tailpiece, and the built-in 3/4 inch branch gives you the dishwasher hose connection back in one piece. Confirm your existing waste arm and trap are 1-1/2 inch tubular before pulling the old one.
4) What size dishwasher drain hose does the 3/4 inch DWBR branch take?
The branch is sized 3/4 inch, which is the common dishwasher drain hose size, and it accepts the hose directly for clamping. This is a direct-connect fitting, so the hose goes onto the branch nipple rather than through an adapter.
5) Is the 8 inch length going to be too long for my under-sink setup?
At 8 inches the tailpiece is cut long on purpose so it can be trimmed to suit the drop between the sink outlet and the trap inlet. Tubular tailpieces are routinely shortened on the plain end during install; keep enough length above the branch so the dishwasher hose connection clears the trap.
6) Is this dishwasher tailpiece made in the USA for a Buy American spec job?
Yes. Sioux Chief manufactures the 230-56160825 in the United States, with country of origin listed as United States, which is what institutional and government procurement typically needs on record.
7) Does a dishwasher tailpiece like this one satisfy the high loop or air gap requirement?
No. The tailpiece only provides the connection point for the dishwasher drain hose; backflow protection still comes from a high loop or a separate air gap fitting depending on what your local code requires. Order that device separately.
8) Will a black plastic tailpiece look out of place under an open sink or vanity-style cabinet?
It is molded in black rather than chrome or white, which blends in at the trap area where the fitting is partly visible. If you need a polished finish to match exposed chrome tubular waste, this is not the part, since black is the only color the 230-56160825 comes in.
9) How is the Sioux Chief 230-56160825 packaged for a supply house or a multi-unit job?
It ships 25 each per bag, which suits distributors stocking dishwasher connection fittings and crews running repeat kitchen hookups across apartments or a tract build rather than buying a single fitting.
