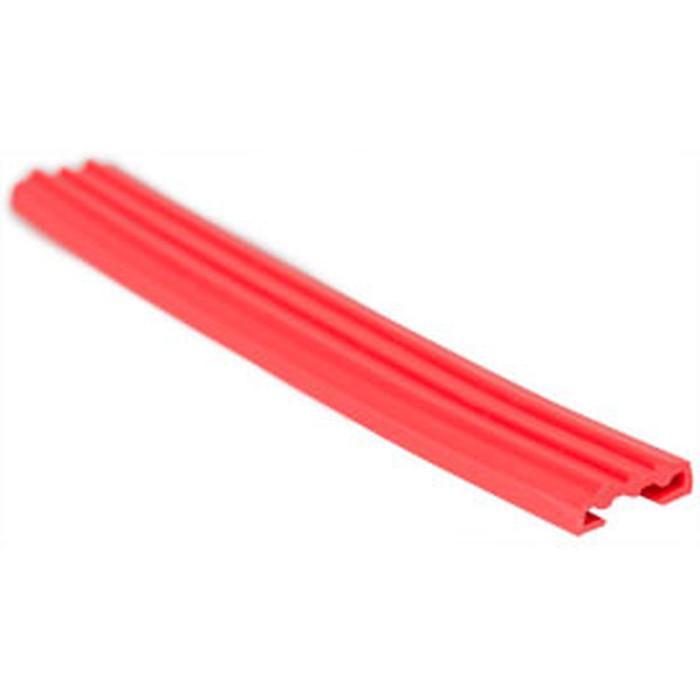

Sioux Chief 575 Series Pipe Isolation Liner, CPVC Compatible Acoustical Wrap

Sioux Chief 575 Series Pipe Isolation Liner, CPVC Compatible Acoustical Wrap

(No reviews yet) Write a Review

Model: 575-101Q

In Stock (leaves warehouse same day if ordered before 3pm ET)

$100.49
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 575 Series Pipe Isolation Liner, CPVC Compatible Acoustical Wrap

The Sioux Chief 575 Series Pipe Isolation Liner is an acoustical rough-in accessory designed to reduce the transfer of waterline noise through riser clamps, overhead loop hangers, and strut clamps on vertical pipe runs. The series is offered in two roll options — model 575-101Q and model 575-102Q — each supplied as a flexible roll that wraps around pipe to cushion the contact point between the pipe and its support hardware, helping isolate vibration and knock noise before it travels into the building structure. Every roll in the series is built with CPVC compatible adhesive, allowing the liner to be applied directly to CPVC pipe runs without compromising the pipe material. This is a behind-the-wall rough-in accessory intended for use with hanging and clamping hardware already installed on a pipe run, not a decorative or finish-grade product.

Key Features

  • Roll Format: Supplied as a continuous roll sized to wrap pipe at riser clamp and hanger contact points, with roll options covering model 575-101Q and model 575-102Q.
  • Extended Roll Length: Each roll provides enough material to treat multiple pipe supports across a single rough-in run without frequent reloading.
  • Noise Reduction: Acoustical liner construction helps reduce the transfer of waterline noise generated by vertical pipe runs.
  • CPVC Compatible Adhesive: Adhesive backing is formulated to be compatible with CPVC pipe without damaging the pipe surface.
  • Hardware Compatibility: Cushions pipe for use with riser clamps on vertical pipe runs, and the flexible liner also works with overhead loop hangers or strut clamps.
  • Flexible Design: Flexible liner material conforms to pipe and hardware contact surfaces for consistent cushioning along the run.

Technical Specifications

  • Models: 575-101Q, 575-102Q
  • Adhesive: CPVC compatible
  • Country of Origin: Taiwan
  • Packaging: 10 per box

Typical Applications

  • Vertical Pipe Run Noise Isolation
  • Riser Clamp Cushioning
  • Overhead Loop Hanger Installations
  • Strut Clamp Installations
  • CPVC Waterline Rough-In
  • Residential and Commercial Plumbing Risers

Why Sioux Chief?

Sioux Chief builds acoustical accessories like the 575 Series liner specifically to address waterline noise at the hanger and clamp level, a detail that is easy to overlook during rough-in but shows up as knocking or ticking once a system is pressurized and in use. The CPVC compatible adhesive and flexible construction let plumbers and contractors treat pipe supports quickly across either roll option without swapping out existing riser clamps, overhead loop hangers, or strut clamps. Stocking this liner alongside standard hangers and clamps gives a crew a straightforward way to quiet vertical pipe runs on both residential and commercial rough-in jobs.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Tube Insulator
Connection Type:
Adhesive
Country of Origin:
Taiwan
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Hangers and Supports
Product Size:
3/4"
Series:
575

Sioux Chief 575-101Q – Frequently Asked Questions

1) Can pipe isolation liner be applied directly to CPVC pipe without damaging it?
Yes. The Sioux Chief 575 Series liner uses a CPVC compatible adhesive backing, so it can be stuck straight onto CPVC waterline runs without harming the pipe surface. That matters because many general-purpose tapes and foam wraps carry adhesives or plasticizers that attack CPVC.
2) What is the difference between Sioux Chief 575-101Q and 575-102Q?
Roll width is the only difference. The 575-101Q is a 3/4 inch wide by 25 ft roll and the 575-102Q is a 2 inch wide by 25 ft roll. Narrow 3/4 inch stock suits riser clamp contact points on smaller pipe; the 2 inch width covers wider clamp jaws and strut clamp saddles in one pass without spiral-wrapping.
3) Will this liner work with riser clamps and strut clamps I already have installed?
It is made for exactly that. The 575 Series liner wraps the pipe at the contact point, so riser clamps, overhead loop hangers, and strut clamps already on the run can be loosened, the liner applied, and the hardware re-tightened. No need to swap out the existing clamps or hangers.
4) What actually fixes knocking and ticking noise in a plumbing riser at the hanger?
The noise is usually pipe contacting metal support hardware and transmitting vibration into the framing. A pipe isolation liner such as the Sioux Chief 575 Series is wrapped between the pipe and the clamp so the metal-to-pipe contact is cushioned, which cuts the waterline noise path into the structure. It is a behind-the-wall rough-in accessory, not insulation and not a finish item, so it goes on before the wall closes or during a service call where the clamp is accessible.
5) Can this acoustical wrap be used on copper and PEX risers too, or only CPVC?
The flexible liner cushions the contact point between pipe and support hardware on vertical runs generally; the CPVC compatible adhesive is called out because CPVC is the pipe material most sensitive to adhesive chemistry. If your risers are copper, the same liner cushions a riser clamp the same way.
6) Does this liner also insulate the pipe or stop condensation?
No. The 575 Series is an acoustical isolation liner for the clamp and hanger contact point, aimed at vibration and knock noise. It is not a thermal insulation product and should not be specified for freeze protection or sweat control on chilled lines. Use pipe insulation for that and the liner only at the support points.
7) Is pipe isolation liner sold individually or by the box?
The 575 Series liner is packaged 10 rolls per box. For a contractor stocking a truck or an MRO storeroom that handles repeat riser work, that is a practical standing quantity alongside your hangers and clamps.
8) Where is Sioux Chief 575 Series pipe isolation liner made?
The 575 Series liner is manufactured in Taiwan. Useful if your project has country-of-origin reporting on submittals.
