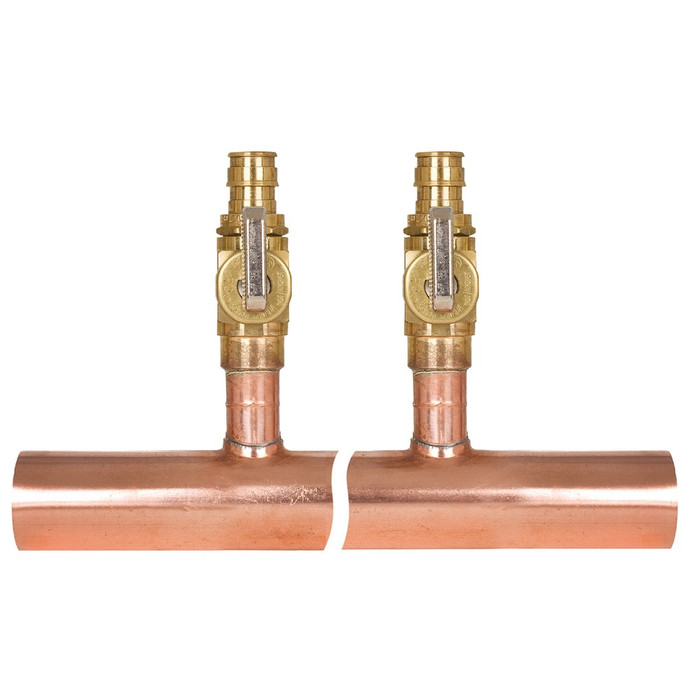

Sioux Chief 672WV0444 1" Copper Manifold with 4 F1960 PEX Valve Outlets

Sioux Chief 672WV0444 1" Copper Manifold with 4 F1960 PEX Valve Outlets

(No reviews yet) Write a Review

Model: 672WV0444

In Stock (leaves warehouse same day if ordered before 3pm ET)

$120.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 672WV0444 1" Copper Manifold with 4 F1960 PEX Valve Outlets

The Sioux Chief 672WV0444 is a rough-in copper distribution manifold built on a 1" Type L copper tube trunk, configured 1 MS x 1 MS on the trunk ends with four branch outlets terminating in 1/2" valved F1960 PEX connections. Each branch is spaced 2" on-center, giving plumbers a compact, consistent layout for homerun PEX distribution from a central trunk line to individual fixtures. This manifold is designed for behind-the-wall or basement/mechanical room installation ahead of PEX runs, and is intended for new construction or repipe homerun systems where isolated branch shutoff at the manifold is required.

Key Features

  • Trunk Size: 1" Type L copper tube trunk with 1 MS x 1 MS end connections for feed and continuation runs.
  • Durable Construction: Copper trunk construction provides a rigid, solder-compatible manifold body suited to rough-in distribution piping.
  • Branch Configuration: Four branch outlets spaced 2" on-center for a compact, organized manifold footprint.
  • Valved Branch Outlets: Each of the 4 branches includes an integral valve with a 1/2" F1960 PEX connection, allowing individual branch shutoff without isolating the whole manifold.
  • PEX Connection Standard: Branch outlets are built to the F1960 expansion connection standard for compatible PEX expansion fittings and rings.
  • Installation Note: Manifold branches should not be recirculated back through any branch, and the manifold should not be modified in the field, per manufacturer guidance, to preserve warranty coverage.

Technical Specifications

  • Trunk Material: 1" Type L Copper Tube
  • Trunk Connections: 1 MS x 1 MS
  • Branch Outlets: 4 Valved, 1/2" F1960 PEX
  • Branch Spacing: 2" on-center
  • Country of Origin: United States
  • Packaging: 10 EA

Typical Applications

  • Residential Homerun PEX Distribution Systems
  • New Construction Water Supply Rough-In
  • Mechanical Room or Basement Manifold Stations
  • Repipe Projects Transitioning from Copper Trunk to PEX Branches
  • Multi-Fixture Branch Shutoff Applications

Why Sioux Chief?

Sioux Chief builds this manifold on a 1" Type L copper trunk with integral valved branch outlets, giving installers a single-piece distribution point rather than assembling separate tees and valves on the job. The fixed 2" on-center branch spacing and F1960 PEX outlets are manufactured to a consistent layout, helping plumbers plan homerun PEX runs with predictable rough-in dimensions. Manufactured in the United States, this manifold is supplied 10 per case for rough-in plumbers stocking standard distribution configurations.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Manifold
Connection Type:
F1960
Standards:
ASTM F1960
Country of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Fittings and Valves
Product Material:
Copper
Product Size:
1"

Sioux Chief 672WV0444 – Frequently Asked Questions

1) Will the Sioux Chief 672WV0444 manifold work with Uponor/Wirsbo expansion PEX fittings?
The four branch outlets on the 672WV0444 are 1/2 inch F1960 connections, built to the ASTM F1960 cold expansion standard. That means they take PEX-a tubing with F1960 expansion rings and an expansion tool. They are not crimp, clamp, or push-fit ports, so PEX-b with crimp rings will not make up on them.
2) What are the trunk end connections on this 1 inch copper manifold, and how do I tie it into my supply line?
Both trunk ends are 1 MS (male sweat) on a 1 inch Type L copper tube body, so you solder it in line, feed on one end and continue or cap the other. Because the body is copper, keep the torch heat away from the integral branch valves when you sweat the joints.
3) How much wall space do I need to rough in a 4-outlet PEX manifold?
Branches on the 672WV0444 sit 2 inches on center, four outlets total, so the branch field spans 6 inches center to center of the outer two. Add room on each end for the 1 inch sweat trunk joints and clearance to turn the branch valve handles. It is sized for behind-the-wall, basement, or mechanical room mounting ahead of the PEX runs.
4) Can I shut off one fixture at the manifold without killing water to the rest of the house?
Yes. Each of the four branches on the 672WV0444 has an integral valve at the outlet, so a single fixture run can be isolated for repair while the other branches stay live. That is the point of a valved manifold versus a plain multiport.
5) Can I use this manifold on a hot water recirculation loop?
No. Sioux Chief's guidance for this manifold is that branches must not be recirculated back through any branch. If you are running a recirc return, bring it back to the water heater on its own line, not through a manifold outlet. Field modification of the manifold is also not permitted.
6) Do I need anything besides the manifold to finish the PEX homerun runs?
Plan on 1/2 inch PEX-a tubing with F1960 expansion rings and an expansion tool for the four branch outlets, solder and fittings for the 1 inch male sweat trunk ends, a cap or continuation fitting for the unused trunk end, and a bracket or strap to support the manifold in the wall or mechanical room. None of that ships with the manifold.
7) I have more than four fixtures. Can I gang two of these manifolds together?
Yes, that is what the 1 MS x 1 MS trunk is for. Both trunk ends are male sweat, so you can solder a copper nipple or coupling between manifolds and continue the 1 inch trunk to a second unit, picking up four more valved 1/2 inch branches. Do not cut or re-drill the body to add outlets; field modification is not allowed.
8) Is this a copper or brass manifold, and is it made in the USA?
The 672WV0444 body is a 1 inch Type L copper tube trunk, and it is manufactured in the United States, which matters on jobs with domestic-material requirements.
9) Does the Sioux Chief 672WV0444 come as a single manifold or in a case?
It is packaged 10 each per case, which suits rough-in plumbers and supply houses stocking a standard homerun configuration. The part number for the manifold itself is 672WV0444.
