Sioux Chief 696-G3011 OxBox No...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$65.21

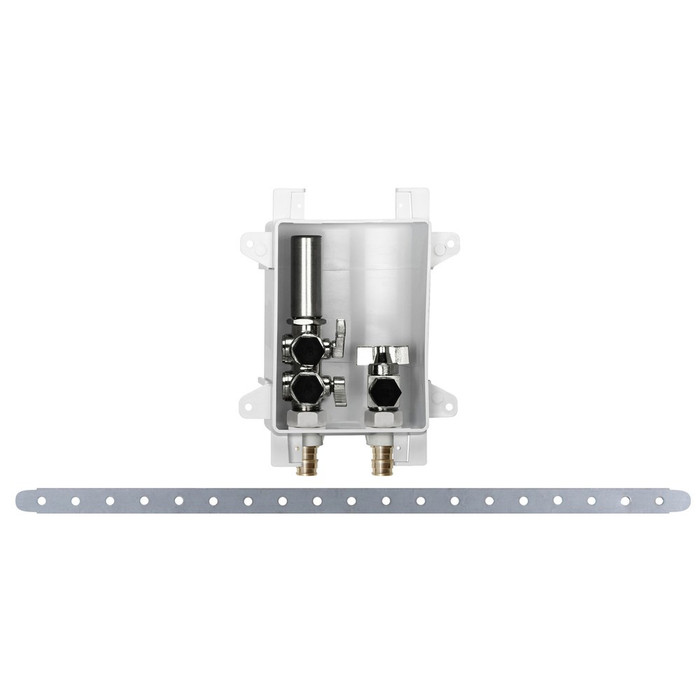

Sioux Chief 696-G3011 OxBox No-Lead ABS Lav/DW Outlet Box

Sioux Chief 696-G3011 OxBox No-Lead ABS Lav/DW Outlet Box

(No reviews yet) Write a Review

Model: 696-G3011MR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$65.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 696-G3011 OxBox No-Lead ABS Lav/DW Outlet Box, Mini Rough-In

The Sioux Chief 696-G3011 OxBox is a no-lead outlet box built for sink/dishwasher or sink/ice maker dual-supply rough-in applications, combining a quarter-turn ball valve mini rough-in with a durable ABS mounting box in a single behind-the-wall assembly. This OxBox platform is available in three supply connection options — F1807 PEX, F1960 PEX, or MIP/Sweat — so plumbers and contractors can select the version that matches the tubing and fitting method already specified on the job, while every connection option shares the same no-lead construction, quarter-turn ball valve shutoffs, and stud-mountable ABS housing. By pre-engineering the box-and-valve combination, Sioux Chief cuts rough-in labor versus piecing together individual valves, brackets, and nipples on site, and the included debris covers protect the valve assembly during drywall, mudding, and painting. The design is covered under Patent #7,360,553 and #7,735,511, reflecting an engineered, purpose-built solution rather than a generic valve bracket. Whichever connection option is selected, the box arrives ready to mount to framing and accept the matching supply line method called for on the drawings.

Key Features

  • Connection Options: Available in F1807 PEX, F1960 PEX, or MIP/Sweat configurations so installers can match the box to the supply tubing and fitting method called for on the job.
  • Valve Type: Quarter-turn ball valves provide quick, reliable shutoff at the fixture supply on every connection variant in the family.
  • No-Lead Construction: Manufactured to no-lead specification for potable water supply line rough-in across the entire OxBox platform.
  • Application: Purpose-built for sink/dishwasher or sink/ice maker dual-supply installations, consolidating two outlets in one box.
  • ABS Mounting Box: Durable ABS housing mounts securely to a single stud or spans between studs for flexible rough-in placement.
  • Debris Protection: Included debris covers shield the box and valve assembly from dust, mud, and paint overspray during construction.
  • Patented Design: Covered under Patent #7,360,553 and #7,735,511.

Technical Specifications

  • Product Material: ABS
  • Country of Origin: China
  • Connection Options: F1807 PEX, F1960 PEX, MIP/Sweat
  • Product Type: Rough-In Box

Typical Applications

  • Sink and Dishwasher Dual-Supply Rough-In
  • Sink and Ice Maker Dual-Supply Rough-In
  • New Construction Behind-the-Wall Plumbing
  • Residential Kitchen and Bath Remodel Rough-In
  • PEX, CPVC, or Copper Supply Line Stub-Outs Depending on Connection Option Selected

Why Sioux Chief?

Sioux Chief engineers its OxBox series around no-lead materials and patented quarter-turn valve designs that simplify rough-in work while protecting components through the construction process. Offering the same box-and-valve platform across F1807 PEX, F1960 PEX, and MIP/Sweat connection options lets contractors standardize on one rough-in solution regardless of which supply tubing method a job calls for. The included debris covers and secure ABS stud-mount housing reflect a product built specifically for the realities of a job site, not a finished bathroom. For plumbers and contractors handling dual-fixture supply rough-ins, the 696-G3011 OxBox family delivers a dependable, pre-configured box-and-valve solution that reduces fitting counts and installation time behind the wall, backed by Sioux Chief's no-lead manufacturing standard.

Manufacturer Resources

Spec Sheet

Product Specs

Product Group:
Rough-In and Supports
Product Material:
ABS
Department:
Plumbing
Product Type:
Rough-In Box
Product Subgroup:
Rough-In Boxes
Country of Origin:
China

Sioux Chief 696-G3011MR – Frequently Asked Questions

1) What connection types does the Sioux Chief 696-G3011 OxBox lav/dishwasher outlet box come in?
Three inlet connections are offered on the 696-G3011 mini rough-in OxBox: MIP/sweat as the 696-G3011MR, F1960 PEX (expansion) as the 696-G3011WR, and F1807 PEX (crimp) as the 696-G3011XR. Pick the one that matches the supply method you are already running, since the box itself is the same otherwise. F1960 and F1807 PEX systems are not interchangeable, so ordering the wrong suffix means the inlets will not accept your tubing.
2) Can I use the 696-G3011 OxBox for a sink and ice maker, or is it only for a dishwasher?
Either. The 696-G3011 OxBox is built for dual-supply rough-in, so it serves sink/dishwasher or sink/ice maker pairings from one box with two outlets. That is the point of the mini rough-in version: two quarter-turn shutoffs consolidated behind one wall opening instead of two separate stub-outs and brackets.
3) Does the Sioux Chief OxBox mount to a single stud or does it need to span between studs?
Both work. The ABS housing on the 696-G3011 can be fastened to one stud face or spanned between two studs, so you are not locked into a fixed bay position when the fixture centerline lands awkwardly.
4) Is the Sioux Chief 696-G3011 OxBox safe for potable water supply lines?
Yes. It is built to no-lead specification for potable water supply rough-in, which is what lets it be used on the cold and hot branch feeding a kitchen sink and appliance.
5) What kind of valves are in the OxBox and what do the fixture connections look like?
Two quarter-turn ball valves with compression outlets. The ball design gives a positive on/off at the appliance supply, and the compression outlet is what your supply riser or appliance connector lands on. The inlet side is whichever connection you order: MIP/sweat, F1960 PEX, or F1807 PEX.
6) Will the valves get wrecked during drywall and paint if I rough this in early?
Debris covers ship with the box specifically for that stretch of the job. They shield the box and valve assembly from dust, joint compound, and paint overspray between rough-in and trim-out, so the quarter-turn valves still operate when the finishers are done.
7) How is the 696-G3011 OxBox sold, individually or by the case?
Packaging on the 696-G3011 OxBox is 10 each, so it is a case-quantity item. That suits production builders and plumbing contractors doing repeat kitchen rough-ins rather than a one-off service call.
8) What is the difference between the mini rough-in OxBox and piecing together my own stub-outs and bracket?
The 696-G3011 arrives as a pre-engineered box-and-valve assembly: two quarter-turn valves already set in an ABS mounting box ready to fasten to framing. Building the same thing on site means separate stub-out valves, a bracket, and extra fittings, each with its own joint. Fewer fittings behind finished drywall is the trade-off being bought here.
