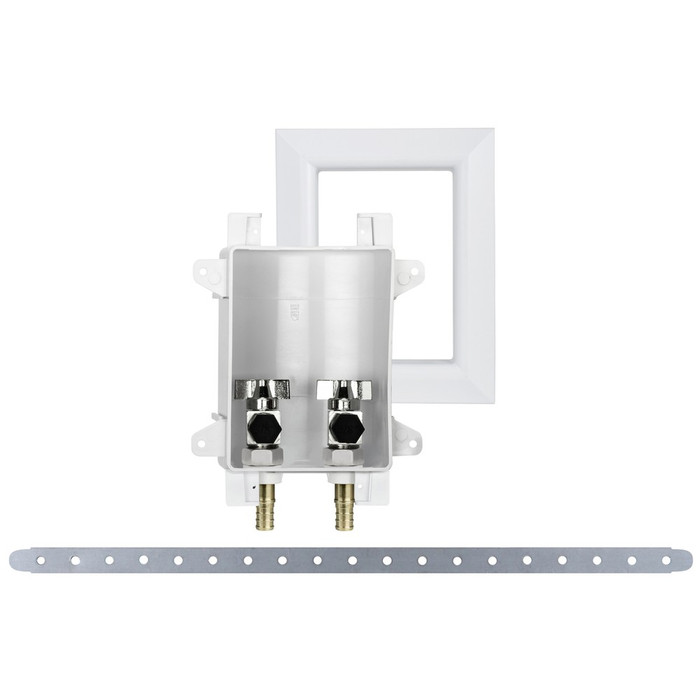

Sioux Chief 696RG2001 Series Fire-Rated OxBox Lavatory Outlet Box

The Sioux Chief 696RG2001 Series is a family of No-Lead, fire-rated OxBox lavatory supply outlet boxes built for behind-the-wall rough-in on plumbers' and contractors' lavatory supply runs. Every box in this series is configured for F1960 PEX expansion connections and is manufactured to a fire-rated design that helps rough-in crews maintain the integrity of a rated wall assembly during the plumbing penetration. The series is available in two configurations — model 696RG2001XF, which includes an integrated water hammer arrester, and model 696RG2001WF, supplied without an arrester for jobs where arrester protection is placed elsewhere in the system or not required by the project spec. This gives installers the flexibility to match the right outlet box to the job spec while keeping a consistent fire-rated, F1960 mounting point for the lavatory supply stub-out. Manufactured in the United States, each box is designed to be set into a fire-rated wall assembly ahead of drywall, giving the rough-in crew a single, square, supported termination point that is ready for the finish plumber to land a supply stop. Every option in the series ships 10 EA per case, making it easy to stock multiple lavatory rough-ins on a single multi-family or commercial job without running short mid-install.

Key Features

  • Fire-Rated OxBox Design: Engineered as a fire-rated outlet box so the lavatory supply penetration maintains the integrity of a rated wall assembly during rough-in.
  • F1960 PEX Connection: Configured for F1960 expansion-style PEX tubing across the series, matching the connection method directly to the pipe run without adapters.
  • Arrester Flexibility: Choose model 696RG2001XF with an integrated water hammer arrester or model 696RG2001WF without one, depending on where arrester protection belongs in the system.
  • No-Lead Construction: Built to No-Lead specification for potable water supply rough-in applications.
  • Lavatory-Specific Configuration: Sized and configured specifically for single lavatory supply stub-outs, simplifying layout for bathroom rough-in.
  • Case Packaging: Packed 10 EA per case across both configurations for efficient job-site stocking on multi-unit lavatory rough-in projects.
  • Made in the USA: Manufactured in the United States for consistent quality control across production runs.

Technical Specifications

  • Country of Origin: United States
  • Packaging: 10 EA per case
  • Connection Type: F1960 PEX expansion
  • Configuration: Lavatory outlet box, fire-rated, available with (696RG2001XF) or without (696RG2001WF) integrated arrester
  • Material Rating: No-Lead

Typical Applications

  • Residential and Commercial Lavatory Rough-In
  • Fire-Rated Wall Assembly Plumbing Penetrations
  • Multi-Family and Hospitality New Construction
  • PEX F1960 Supply Line Installations
  • Behind-the-Wall Supply Stub-Out Rough-In

Why Sioux Chief?

Sioux Chief builds its 696RG2001 Series OxBox lavatory outlet boxes to No-Lead specification with a fire-rated design that helps rough-in crews keep wall assemblies compliant while landing a clean F1960 PEX connection at every lavatory location. Whether the job calls for the integrated-arrester 696RG2001XF or the arrester-free 696RG2001WF, the series is manufactured in the United States and packed for job-site efficiency at 10 EA per case, giving plumbers and contractors a dependable, repeatable rough-in point for lavatory supply lines on fire-rated projects.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Outlet Box
Configuration:
Lavatory, Fire-Rated
Connection Type:
F1960 PEX Expansion
Standards:
No-Lead
Country of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Rough-In Boxes
Product Material:
No-Lead

Sioux Chief 696RG2001XF – Frequently Asked Questions

1) What is the difference between the Sioux Chief 696RG2001XF and 696RG2001WF lavatory outlet boxes?
Both are fire-rated OxBox lavatory supply outlet boxes from the same 696RG2001 series. The 696RG2001XF comes with an integrated water hammer arrester built into the box; the 696RG2001WF is supplied without one, for jobs where arrester protection sits elsewhere in the system or the project spec does not call for it at the fixture. Everything else about the rough-in point is the same, so the choice is purely about where you want the arrester.
2) Can I use the Sioux Chief OxBox lavatory outlet box in a fire-rated wall?
That is what it is built for. The 696RG2001 series is a fire-rated outlet box, meant to be set into a rated wall assembly ahead of drywall so the lavatory supply penetration does not compromise the assembly. It is the normal choice on multi-family and hospitality corridors and demising walls where every fixture penetration has to stay inside a rated detail.
3) What PEX connection does the Sioux Chief OxBox lavatory box use?
The 696RG2001 lavatory outlet box is configured for F1960 PEX expansion connections, so the tubing lands directly on the box with an expansion tool and no adapter fittings. If your crew is running crimp or clamp PEX, you would need to confirm the correct configuration before ordering, because the expansion fitting will not accept a crimp ring.
4) Is the Sioux Chief 696RG2001 OxBox approved for potable water?
The 696RG2001 series is built to No-Lead specification, which is what qualifies it for potable water supply rough-in. The No-Lead designation is called out both as the material and as the standard it is built to, so it suits domestic cold and hot supply to a lavatory in residential and commercial work.
5) Is this OxBox for a lavatory only, or can I use it at a washing machine or icemaker?
This one is configured specifically for a single lavatory supply stub-out, and it is sized and laid out for that. Sioux Chief builds separate OxBox models for washing machine, icemaker and other fixture outlets, so for those locations you want the fixture-specific box rather than adapting the lavatory version.
6) Does the Sioux Chief 696RG2001 OxBox come with the supply stop?
No. The box gives the rough-in crew a square, supported termination point at the lavatory; the finish plumber lands the supply stop on it afterward. Plan on supplying the stops and the escutcheons separately when you take off the job.
7) How many Sioux Chief 696RG2001 outlet boxes come in a case?
They ship 10 each per case, in both the arrester and non-arrester configurations. On a multi-unit job that works out to one case per 10 lavatory locations, which makes counting rough-in material by unit count straightforward instead of ordering piece by piece.
