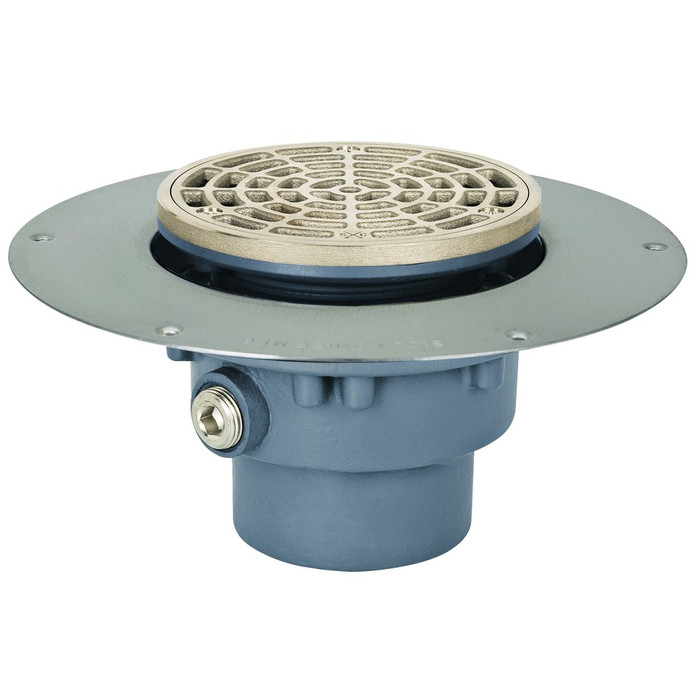

Sioux Chief 822 Finish Line Adjustable Cast Iron No-Hub Floor Drain

Sioux Chief 822 Finish Line Adjustable Cast Iron No-Hub Floor Drain

(No reviews yet) Write a Review

Model: 822-3DNR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$174.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 822 Finish Line Adjustable Cast Iron No-Hub Floor Drain

The Sioux Chief 822 Series Finish Line floor drain is a cast iron, no-hub drain built for installation in cored concrete floors or corrugated decks, available in 2" and 3" no-hub connection sizes to mate with common cast iron DWV branch piping. Unlike standard floor drains, the Finish Line head on this unit remains adjustable AFTER the concrete pour is complete, giving plumbers and contractors the flexibility to dial in the finished floor height without re-opening the slab. Across both the 2" and 3" configurations, the head adjusts up to 3/4" above flush to accommodate a range of flooring types. This makes it well suited for loft remodels, second floor utility rooms, and laundry room installations where finish flooring thickness is not always known at rough-in.

Key Features

  • Trade Size: Available in 2" or 3" no-hub connection sizes, allowing the drain to mate with common cast iron DWV branch sizes.
  • Durable Construction: Cast iron body construction built for below-grade and in-slab installation durability.
  • No-Hub Connection: No-hub coupling style for straightforward tie-in to cast iron no-hub drainage piping.
  • Post-Pour Adjustability: Finish Line head design allows the drain height to be adjusted up to 3/4" above flush AFTER the concrete has been poured, eliminating the need to guess finish floor height at rough-in.
  • Flexible Installation: Installs in cored concrete floors or corrugated decks, making it adaptable to a variety of floor assemblies.
  • Application Fit: Suited for loft remodels and second-floor utility or laundry room installations where finish flooring type and thickness vary.

Technical Specifications

  • Trade Size Range: 2" - 3" no-hub connection
  • Country of Origin: China
  • Packaging: 4 EA

Typical Applications

  • Loft and Multi-Family Remodel Floor Drainage
  • Second-Floor Utility Room Drains
  • Laundry Room Floor Drainage
  • Cored Concrete Floor Installations
  • Corrugated Deck Floor Drain Installations

Why Sioux Chief?

Sioux Chief's 822 Series Finish Line floor drain is built from cast iron for in-slab durability and features a no-hub connection for straightforward tie-in to existing drainage piping, available in 2" and 3" sizes to match the branch piping on the job. The post-pour adjustable head design gives plumbers and contractors the confidence to set finish floor height after the concrete work is already done, reducing callbacks caused by unexpected flooring thickness changes. Whether the project is a loft conversion, a second-floor utility room, or a laundry room installation, the 822 Series offers the flexibility to adapt to varying floor assemblies and finish materials without compromising the integrity of the drainage connection.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Floor Drain
Connection Type:
No-Hub
Configuration:
Adjustable
Country of Origin:
China
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Drains and Cleanouts
Product Material:
Cast Iron
Product Size:
3"

Sioux Chief 822-3DNR – Frequently Asked Questions

1) Can the Sioux Chief 822 Finish Line floor drain be adjusted after the concrete is poured?
Yes. The Finish Line head on the 822 drain stays adjustable after the pour, raising up to 3/4 inch above flush. That means you set the strainer to the finished floor height once the flooring material is actually known, instead of guessing at rough-in and chipping out slab later.
2) Will the 822 floor drain connect to my cast iron no-hub DWV piping?
It is a no-hub drain, so the outlet bands straight onto cast iron no-hub drainage pipe with a standard no-hub coupling. Pick the size to match your branch: 2 inch (822-2DNR) or 3 inch (822-3DNR). There is no hub, no caulk joint, and no threaded outlet option.
3) Can this floor drain go in a corrugated metal deck, not just a concrete slab?
Yes. The 822 is built for installation in cored concrete floors or corrugated decks, which is why it shows up on second-floor utility rooms and loft conversions where the pour sits on steel deck rather than on grade.
4) I don't know the finish flooring thickness yet at rough-in. Is the 822 the right drain to spec?
That is exactly the case it is built for. Because the head adjusts up to 3/4 inch above flush after the slab is poured, you can rough in now and dial the strainer to tile, LVP, or sealed concrete once the flooring decision is made. A fixed-head drain forces that decision before the pour.
5) Should I order the 2 inch or the 3 inch Sioux Chief 822 drain?
Match the drain to the branch line you are tying into. The 822 comes in 2 inch and 3 inch no-hub sizes to mate with common cast iron DWV branch piping. A laundry or utility room floor drain commonly runs 2 inch; where the branch is already 3 inch cast iron, order the 3 inch rather than reducing at the drain.
6) Is the Sioux Chief 822 floor drain body cast iron or plastic?
Cast iron body, which is what most commercial and multi-family specs call for on in-slab drains and what holds up to the abuse of the pour and traffic above it. If a job spec calls out PVC or ABS drain bodies, this is not the matching item.
7) How many Sioux Chief 822 drains come in a case?
The 822 Finish Line drain is packaged 4 each per carton. Worth knowing if you are buying for a multi-unit remodel where you need one drain per laundry stack, since quantities land in fours.
