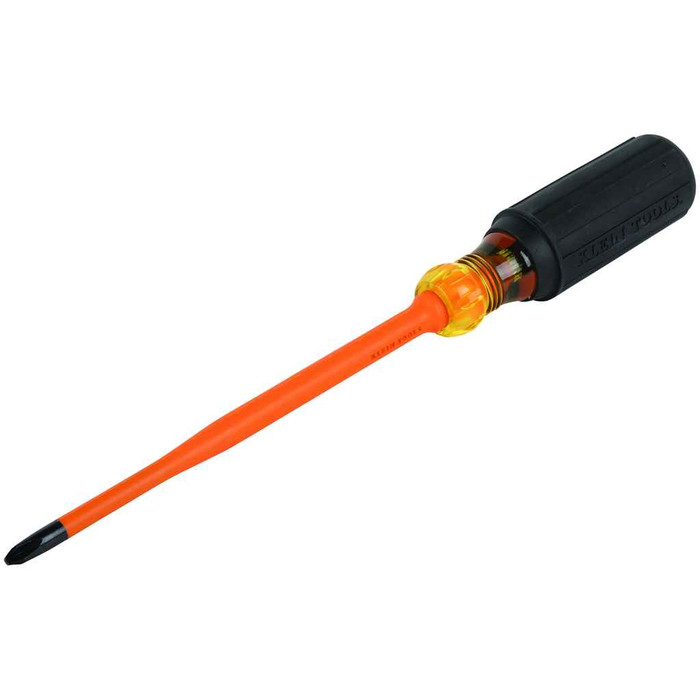

Slim-Tip 1000V Insulated Screwdriver, #2 Phillips, 6-Inch
6936INS - spec sheet
Warnings
- Always inspect your tools before use.
- Whenever possible, always de-energize lines and equipment prior to working on or around them.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
- Keep tool clean, dry and free of any surface contaminants.
Features
- Tip-Ident® quickly identifies the tip type and orientation
- Meets or exceeds ASTM F1505-16 and IEC 60900 -2018
- Slim Profile Tip
- Made in USA
- Insulated blade is flush with the tip to help reduce nicking the insulation and gain access into tight terminal blocks
- Cushion-Grip™ handles for greater torque and comfort
- 1000V rated layer of orange impact and flame-resistant insulation protects from electrical shock

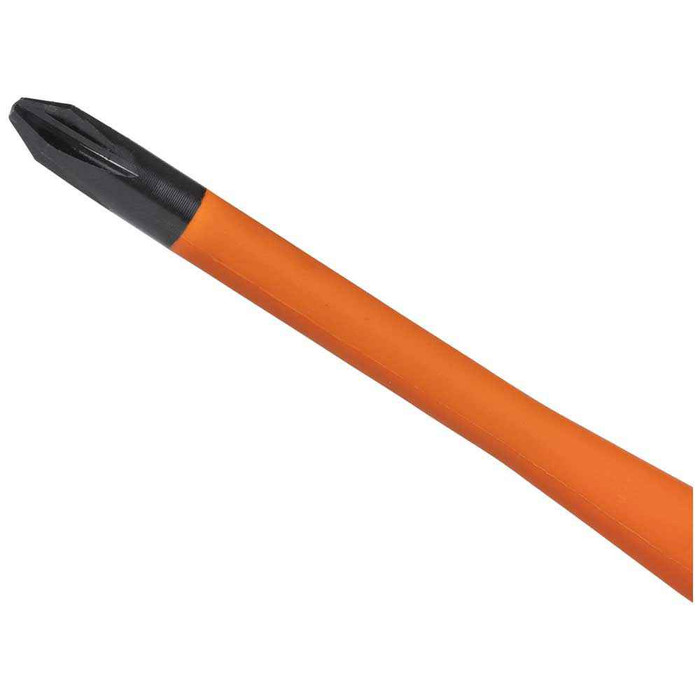

- 6-Inch round shank, #2 Phillips tip, insulated screwdriver with a slim tip that allows for greater access into tight spaces
6936INS - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- MAG2
- Color Code:
- Orange
- Handle Color:
- Black
- Handle Diameter:
- 1.25" (3.2 cm)
- Handle Length:
- 4.31" (10.9 cm)
- Handle Material:
- Rubber
- Insulated:
- Yes
- Item Depth:
- 8.7500 in
- Item Height:
- 1.2500 in
- Item Weight:
- 0.3000 lbs
- Item Width:
- 1.2500 in
- Magnetic:
- No
- Material:
- Steel, Plastic
- Overall Height:
- 1.25" (3.2 cm)
- Overall Length:
- 10.31" (26.2 cm)
- Overall Width:
- 1.25" (3.2 cm)
- Shank Length:
- 6" (15.2 cm)
- Shank Type:
- Round
- Standard:
- ASTM F-1505-16, IEC 60900:2018
- Tip Size:
- #2
- Tip Type:
- Phillips
- Type:
- Slim-Tip Insulated Screwdriver
- Weight:
- 7.5 oz (213 g)
