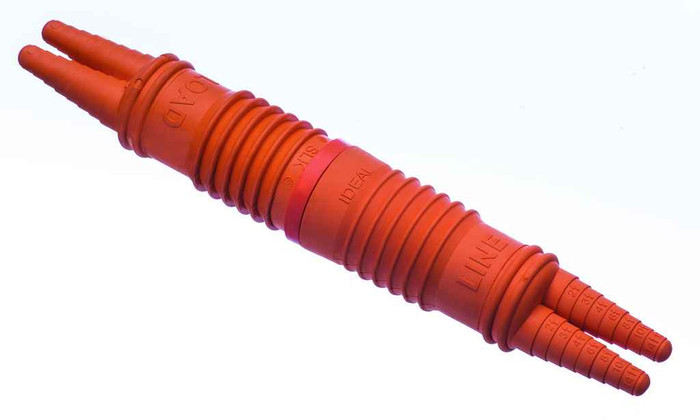

IDEAL Industries 30-C2022 SLK® Disconnect Fused Kit, 2-Pole Breakaway, Crimp, 2-Load/Line

IDEAL Industries 30-C2022 SLK® Disconnect Fused Kit, 2-Pole Breakaway, Crimp, 2-Load/Line

(No reviews yet) Write a Review

Model: 30-C2022
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$234.53
$216.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
SLK® Disconnect Fused Kit, 2-Pole Breakaway, Crimp, 2-Load/Line

  • Features

    • Accepts 13/32 x 1-1/2 midget-style fuse (Note: Fuse not included)
    • Breakaway fuseholder for use in roadway, street, parking lot and area lighting
    • Bright orange color for ease of visibility
    • Listed to UL 486D for submersibility
    • Set screw or crimp terminations available


30-C2022 - spec sheet

Manufacturer Resources

Product Specs

Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Ratings:
30A, 600V, 105°C
Wire Range:
2-14 AWG (Cu & Al rated)
parent sku:
IDL-30-C2022

Ideal Industries 30-C2022 – Frequently Asked Questions

1) Does the IDEAL 30-C2022 SLK disconnect kit come with fuses?
No fuses ship with the 30-C2022 kit. It accepts a 13/32 x 1-1/2 inch midget-style fuse, which you order separately and size to the luminaire load. Plan on two fuses for the 2-pole configuration.
2) What wire sizes can I land in the IDEAL 30-C2022 fused disconnect, and does it take aluminum?
The terminations accept 2 through 14 AWG and are rated for both copper and aluminum conductors, so it works on typical pole and area lighting feeds without a separate transition connector. This version uses crimp terminations rather than set screws.
3) Can an IDEAL SLK breakaway fused disconnect be used in a direct-buried or flooded pole base?
It is Listed to UL 486D, the standard covering submersible wire connectors, so the SLK disconnect is suited to wet, below-grade pole bases and handholes that can flood.
4) What voltage and amperage is the IDEAL 30-C2022 SLK disconnect rated for?
Rated 30A at 600V with a 105 degree C conductor rating, which covers standard 120V through 480V roadway and parking lot lighting circuits on a 2-pole line and load arrangement.
5) What does breakaway mean on a street light fuse holder, and why does it matter?
The breakaway fuseholder separates under force, so if a pole is struck by a vehicle the connection pulls apart at the holder instead of tearing the underground feed. That is why the SLK kit is specified for roadway, street, parking lot and area lighting. The orange body also makes it easy to spot inside a dark pole base.
6) Should I order the crimp or the set screw version of the IDEAL SLK disconnect kit?
The SLK line is offered with either set screw or crimp terminations. Model 30-C2022 is the crimp version, which needs a crimp tool and die at install but gives a fixed, tool-verified connection. Choose the set screw variant if your crews maintain poles with hand tools only.
7) Is one 30-C2022 kit enough to fuse both conductors on a two-wire lighting circuit?
Yes. The 30-C2022 is a 2-pole, 2-load/line kit, so it handles both the line and neutral or both ungrounded legs of a single fixture feed in one kit. One kit per pole is the usual count.
