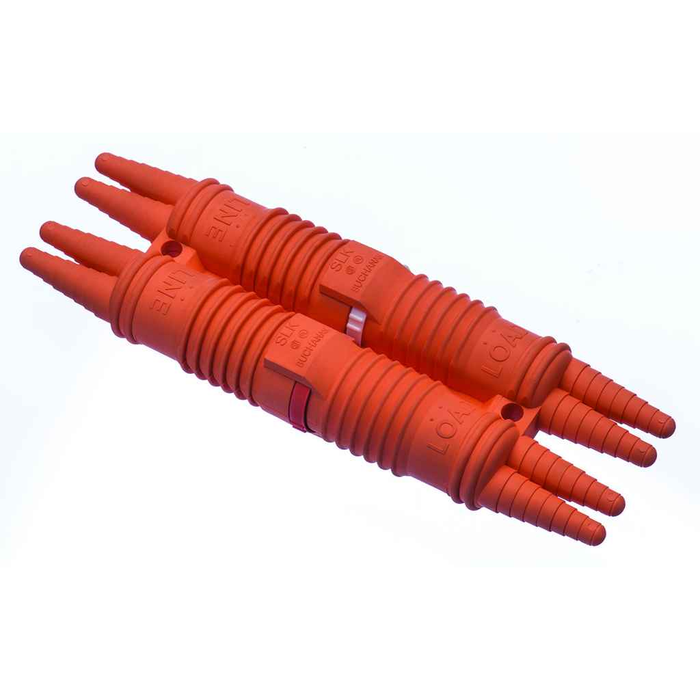

IDEAL Industries 30-S2222P SLK® Disconnect Fused Kit, 2-Pole Paired, Set Screw

IDEAL Industries 30-S2222P SLK® Disconnect Fused Kit, 2-Pole Paired, Set Screw

(No reviews yet) Write a Review

Model: 30-S2222P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$361.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
SLK® Disconnect Fused Kit, 2-Pole Paired, Set Screw

  • Features

    • Set screw or crimp terminations available
    • Listed to UL 486D for submersibility
    • Breakaway fuseholder for use in roadway, street, parking lot and area lighting
    • Accepts 13/32 x 1-1/2 midget-style fuse (Note: Fuse not included)
    • Bright orange color for ease of visibility


30-S2222P - spec sheet

Manufacturer Resources

Product Specs

Product Group:
Covers & Plates
Department:
Electrical
Product Subgroup:
Outlet Covers
Ratings:
30A, 600V, 105°C
Wire Range:
2-14 AWG (Cu & Al rated)
parent sku:
IDL-30-S2222P

Ideal Industries 30-S2222P – Frequently Asked Questions

1) Does the IDEAL 30-S2222P SLK disconnect kit come with fuses?
No fuses are included. The 30-S2222P breakaway fuseholder accepts a 13/32 x 1-1/2 inch midget-style fuse, so you order those separately and size them for the fixture load. It's a 2-pole paired kit, meaning you get holders for both conductors.
2) What wire sizes will the IDEAL SLK 30-S2222P accept, and can I use aluminum conductors?
The set screw terminations take 2 through 14 AWG, and they are rated for both copper and aluminum conductors. That range covers typical pole-base feeder taps down to fixture leads without needing a separate reducer.
3) Can the IDEAL 30-S2222P fused disconnect kit be used in a wet or flooded pole base?
Yes. The SLK disconnect kit is Listed to UL 486D, which is the standard for submersible wire connectors, so it holds up in hand holes and pole bases that take on water.
4) What voltage and amperage is the IDEAL SLK 30-S2222P rated for?
Rated 30A at 600V, with a 105 degree C conductor temperature rating. That covers 120V, 240V, 277V and 480V roadway and area lighting circuits on the same part number.
5) Should I use a set screw or crimp version of the SLK disconnect kit?
Both terminations exist in the SLK line; the 30-S2222P is the set screw version. Set screw lets a crew land and re-land conductors in the field with a screwdriver, which matters on maintenance swaps. Crimp versions need the matching tool and are a one-time termination.
6) Why is the IDEAL SLK fused disconnect orange, and what does breakaway mean?
The bright orange body makes the disconnect easy to spot inside a dark pole base or hand hole. Breakaway means the fuseholder pulls apart at the joint to open the circuit, so a tech can isolate a single luminaire on a roadway, street, parking lot or area lighting run without killing the whole circuit.
7) Is one IDEAL 30-S2222P kit enough to fuse both conductors at a light pole?
Yes. The 30-S2222P is supplied as a 2-pole paired kit, so it fuses both legs at one fixture. If you are standardizing across a lot or a roadway run, order one kit per luminaire, plus two midget fuses each at 13/32 x 1-1/2 inch.
