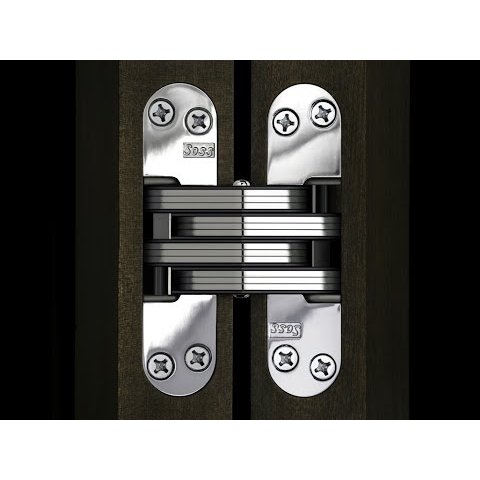

SOSS 101SS Invisible Hinge, Stainless Steel (1/2"-3/4" Minimum Door Thickness)

SOSS 101SS Invisible Hinge, Stainless Steel (1/2"-3/4" Minimum Door Thickness)

(No reviews yet) Write a Review

Model: 101SSUS32DPB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$111.80
$99.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 101SS Invisible Hinge, Stainless Steel (1/2"-3/4" Minimum Door Thickness)

The SOSS 101SS Invisible Hinge is engineered for wood or metal applications with door thickness ranging from 1/2" to 3/4". Constructed of complete 316 Stainless Steel, this cabinet-style concealed hinge delivers superior appearance and long-term durability. Designed to open a full 180° as a single action hinge, it's ideal for applications demanding a flush fit, compact size, smooth operation, and corrosion resistance. Wood screws are included with every unit, and machine screws are available for an additional charge.

Key Features

  • Minimum Material Thickness: Designed for wood or metal applications with 1/2" to 3/4" door thickness for precise fit and function.
  • Premium Construction: Made of complete 316 Stainless Steel for exceptional corrosion resistance and long-term durability in demanding environments.
  • Full 180° Swing: Single action hinge design allows the door to open completely flat for maximum functional flexibility.
  • Invisible, Flush-Fit Design: Concealed cabinet-style construction provides a clean, streamlined appearance with no visible hardware when the door is closed.
  • Corrosion Resistant: Stainless steel construction makes this hinge well-suited for exterior, metal, and wood applications where moisture exposure is a concern.
  • Screws Included: Wood screws are included with each unit; machine screws are available as an additional-charge option.
  • Compact and Smooth Operation: Small footprint combined with smooth single-action movement suits applications where space and appearance are critical.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Concealed Hinges
  • Commercial/Residential: Commercial
  • Duty Level: Light Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 101 Series
  • Product Finish: US32DPB - Satin Stainless Steel
  • Product Size: 1"
  • Product Category: Door Hinges and Pivots
  • Product Substrate: Zinc and Steel
  • Department: Door Hardware
  • Application: Exterior, Metal, Wood
  • Min. Material Thickness: 1/2″
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: Wood
  • Packaging: 1 / Bag = 1 Each
  • Packages Per Container: 1 Each
  • Price Per: Each

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Exterior Door Installations
  • Cabinet and Millwork Applications
  • Multi-Tenant Residential Properties

Why SOSS 101 Series?

SOSS 101 Series invisible hinges are built from complete 316 Stainless Steel, delivering the corrosion resistance and durability required for exterior, wood, and metal door applications. The full 180° single action swing and concealed, flush-fit design provide a clean professional appearance combined with smooth, reliable operation. Engineered for commercial applications where flush fit, compact size, and corrosion resistance are essential.

Product Specs

Subcategory:
Hinges and Pivots
Product Group:
Door Hinges and Pivots
Product Type:
Invisible Hinges
Product Subgroup:
Concealed Hinges
Commercial/Residential:
Commercial
Duty Level:
Light Duty
Electronic:
No
Corner Type:
Radius
Series:
101 Series
Product Finish:
US32DPB - Satin Stainless Steel
Product Size:
1"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 101SSUS32DPB – Frequently Asked Questions

1) Is the SOSS 101SS hinge OK for an exterior or wet location?
It is. The 101SS is complete 316 stainless steel, which is the marine-grade alloy, and the listed applications include exterior as well as metal and wood. That makes it a reasonable pick for coastal exposure, pool enclosures, or a washdown area where a plated or zinc hinge would bloom rust. The finish is US32DPB satin stainless.
2) How many SOSS 101 invisible hinges do I need per door, and where do they go?
The 101SS is sold one hinge to a bag, so a door takes multiple units ordered individually. Hinge count and placement depend on door height and weight, and SOSS publishes a hinge location drawing for the 101 that gives the layout: https://zensupply.com/content/pdf/soss/hinge_location.pdf. There is also a cased jamb detail at https://zensupply.com/content/pdf/soss/cased_jamb_detail.pdf for the jamb-side mortise.
3) What size mortise does the SOSS 101SS need in the door edge?
The 101SS is the 1 inch size in the SOSS 101 Series, with radius corners on the leaves. Router the pocket to match those radiused ends rather than squaring them off with a chisel, or the hinge will sit loose in the mortise. The dimensioned model drawing is at https://zensupply.com/content/pdf/soss/soss101.pdf.
4) Do I need to order screws separately for a SOSS 101SS invisible hinge?
Wood screws ship in the bag with each hinge, one hinge per bag. If you're mounting into metal you'll want machine screws, and those are a separate additional-charge item rather than something included. Plan the fastener call before the install day if the substrate is steel or aluminum.
5) Will a SOSS 101 invisible hinge let the door lay flat against the wall?
It opens a full 180 degrees as a single action hinge, so the leaf swings all the way back flat. That is the reason people specify these on cabinet doors, wall panels, and access doors where a butt hinge would leave the door standing proud. SOSS publishes an open clearance detail showing the swing envelope: https://zensupply.com/content/pdf/soss/open_clearance_detail.pdf.
6) Is the SOSS 101 hinge handed, and do I have to specify left or right?
There is no handing to call out. The 101SS is offered as a single model with one configuration, so the same hinge serves a left or right swing depending on which side of the opening you mortise it into. That also means one part number covers a whole building's worth of openings, which simplifies keeping spares on the shelf.
7) Can I put a closer or electrified power transfer on a SOSS 101 invisible hinge?
Neither. The 101SS is a plain mechanical hinge with no closer function and no power transfer path through it, and it carries no electronic option. If you need to run current to an electric strike or a latch in the leaf, the wiring has to come through a separate electric hinge or a door loop, not through this one.
8) Does the SOSS 101SS hinge have countersunk screw holes?
The holes are not counterbored, so the screw heads seat in a standard countersink flush with the leaf face. If your detail called for a counterbored hole to take a shouldered fastener or a plug, this is not that hinge.
