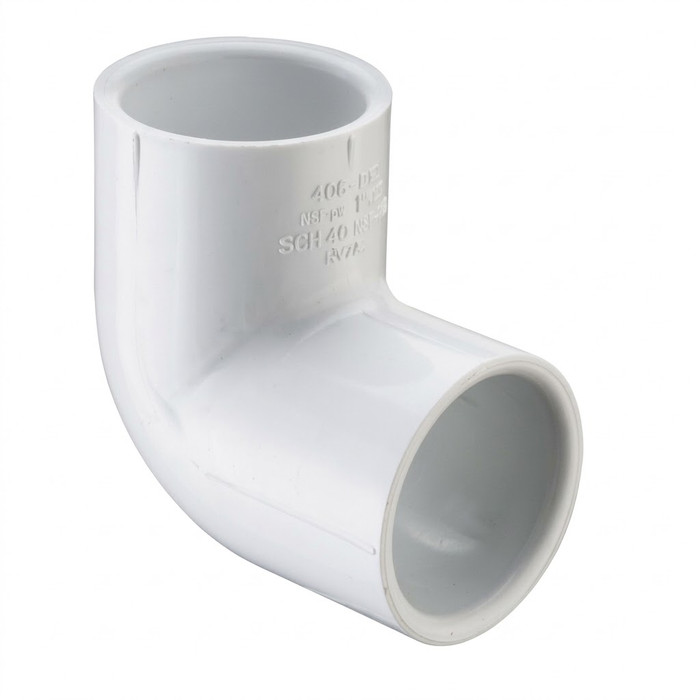

Spears PVC 90° Socket Elbow
The Spears PVC 90° Socket Elbow is a PVC pipe fitting designed to redirect flow through a full 90° turn in PVC piping systems. Built with socket (SOC) connection ends for a solvent-weld joint, this elbow delivers a strong, leak-resistant seal for pressurized piping runs. The rugged PVC construction resists corrosion and chemical attack, making it a dependable choice for demanding industrial, commercial, and process piping applications.
Key Features
- 90° Configuration: Provides a full quarter-turn directional change within PVC piping runs.
- Durable Construction: Molded from PVC for dependable wall strength and reliable pressure handling.
- Socket (SOC) Connection: Solvent-weld socket ends create a secure, permanent bonded joint when used with compatible PVC pipe and cement.
- Corrosion Resistant: PVC material resists rust, corrosion, and many chemicals commonly found in industrial and water-handling environments.
- Lightweight and Easy to Install: PVC construction is easier to handle and install than comparable metal fittings, reducing labor time on the job.
- Long Service Life: PVC construction is built to withstand years of service in piping systems without degrading.
Technical Specifications
- Department: Plumbing
- Product Group: PVC & CPVC Fittings
Typical Applications
- PVC Piping Systems
- Chemical Processing and Handling Lines
- Water and Wastewater Treatment Systems
- Industrial and Commercial Plumbing Installations
- Irrigation and Agricultural Piping
- Corrosive Environment Piping Runs
Why Spears?
Spears PVC fittings are built with dependable construction and reliable socket-weld joints to deliver corrosion-resistant performance in demanding piping systems. Choosing Spears PVC fittings means specifying a fitting engineered for long-term, code-compliant performance across plumbing, industrial, and process piping applications.
Variant Specifications
| Schedule | Size | SKU | MPN |
|---|---|---|---|
| Schedule 40 | 3/4" | 406-007 | 406007 |
| Schedule 40 | 1-1/2" | 406-015 | 406015 |
| Schedule 40 | 2-1/2" | 406-025 | 406025 |
| Schedule 40 | 3" | 406-030 | 406030 |
| Schedule 40 | 6" | 406-060 | 406060 |
| Schedule 40 | 1/2" | 416-005 | 416005 |
| Schedule 40 | 1" | 416-010 | 416010 |
| Schedule 40 | 1-1/4" | 416-012 | 416012 |
| Schedule 40 | 5" | 416-050F | 416050F |
| Schedule 40 | 2" | 417-020 | 417020 |
| Schedule 40 | 4" | 417-040 | 417040 |
| Schedule 80 | 5" | 417-050 | 417050 |
| Schedule 40 | 8" | 417-080 | 417080 |
| Schedule 80 | 1-1/4" | 806-012 | 806012 |
| Schedule 80 | 1-1/2" | 806-015 | 806015 |
| Schedule 80 | 2" | 806-020 | 806020 |
| Schedule 80 | 3" | 806-030 | 806030 |
| Schedule 80 | 3/4" | 817-007 | 817007 |
| Schedule 80 | 1" | 817-010 | 817010 |
Manufacturer Resources
Product Specs
- Product Type:
- Elbow
- Product Group:
- PVC & CPVC Fittings
- Connection Type:
- Socket
- Department:
- Electrical
- Angle:
- 90°
- Product Material:
- PVC
- Product Subgroup:
- Pipe Fittings
