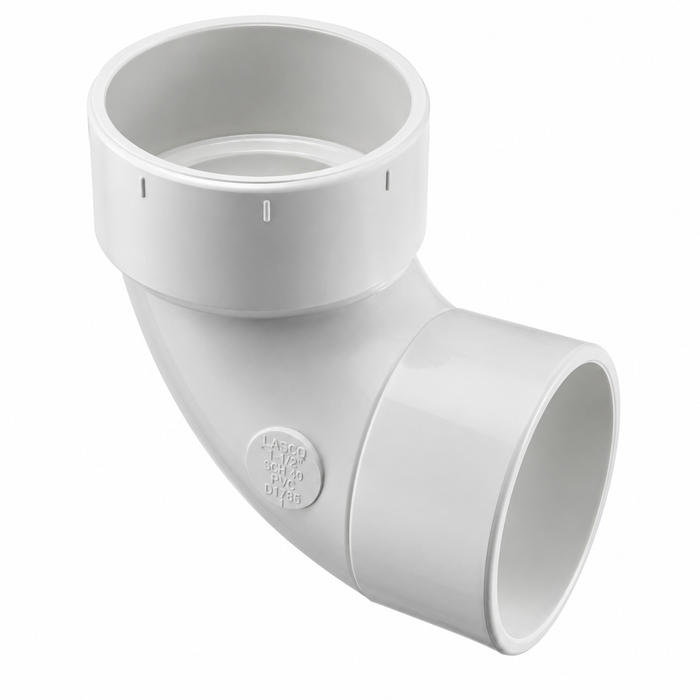

Spears PVC DWV Street Vent Elbow, Hub x Spigot Connection

Spears PVC DWV Street Vent Elbow, Hub x Spigot Connection

(No reviews yet) Write a Review

Model: P333-015

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Spears PVC DWV Street Vent Elbow, Hub x Spigot Connection

The Spears PVC DWV Street Vent Elbow is a drain-waste-vent (DWV) fitting featuring a hub x spigot connection that lets the elbow join directly to another fitting without an extra coupling. Molded from PVC for long-term corrosion and chemical resistance, this street-style elbow is available in 1-1/2", 2", and 3" trade sizes to fit a range of vent and drain routing needs. Built for drain-waste-vent piping systems, it simplifies tight vent runs where space is limited and every joint counts, and it is supplied in bulk cartons of 25 each for efficient job-site stocking as part of the Spears PVC and CPVC fittings line.

Key Features

  • Trade Size Range: Available in 1-1/2", 2", and 3" sizes to match a wide range of DWV vent and drain routing needs.
  • Street Fitting Design: Combines a hub end and a spigot end on the same elbow, enabling direct fitting-to-fitting assembly and eliminating the need for an additional coupling in tight vent runs.
  • Hub x Spigot Connection: The hub end accepts pipe or fitting via solvent weld while the spigot end inserts directly into the hub of the next fitting for a compact, space-saving joint.
  • Durable PVC Construction: Molded from PVC for excellent corrosion and chemical resistance, supporting long service life in drain-waste-vent applications.
  • DWV System Compatible: Purpose-built for drain-waste-vent piping, helping maintain proper venting and drainage performance throughout the system.
  • Elbow Configuration: Changes direction of the vent or drain line while maintaining a compact hub-to-spigot profile, ideal for navigating framing and tight spaces.
  • Bulk Packaging: Supplied 25 pieces per carton, streamlining inventory and job-site stocking for plumbing contractors and distributors.

Technical Specifications

  • Product Material: PVC
  • Product Type: Elbow
  • Trade Size Range: 1-1/2" - 3"
  • Connection Type: Hub x Spigot
  • Packaging: 25 pieces per carton

Typical Applications

  • Residential and Commercial DWV Systems
  • Plumbing Vent Stack Assemblies
  • Waste and Vent Piping Runs
  • New Construction Plumbing Rough-In
  • Remodel and Repair Plumbing Projects

Why Spears?

Spears is a trusted name in PVC and CPVC fittings, and this DWV street vent elbow reflects that reputation with a durable PVC build and a space-saving hub x spigot connection designed for dependable, code-compliant venting across 1-1/2", 2", and 3" sizes. Plumbing professionals can count on consistent fit and long-term corrosion resistance in every carton of 25.

Product Specs

Product Type:
Elbow
Department:
Plumbing
Product Group:
PVC & CPVC Fittings
Product Material:
PVC
Connection Type:
Hub x Spigot
Product Subgroup:
Pipe Fittings
Product Size:
1-1/2" - 3"

Spears P333-015 – Frequently Asked Questions

1) What does hub x spigot mean on a Spears DWV street vent elbow, and do I still need a coupling?
No coupling needed. On the Spears P333 DWV street vent elbow one end is a hub (socket) that takes pipe or a fitting spigot by solvent weld, and the other end is a spigot sized like pipe so it drops straight into the hub of the next fitting. That is what makes it a street fitting: fitting-to-fitting assembly with no intermediate coupling and no short pipe nipple, which is how you keep a vent turn tight against framing.
2) What pipe sizes does the Spears P333 DWV street vent elbow come in?
Three sizes: 1-1/2 inch (P333-015), 2 inch (P333-020), and 3 inch (P333-030). Those cover the usual vent work, 1-1/2 and 2 inch for individual and branch vents, 3 inch where the vent ties into a main stack.
3) Will this street elbow solvent weld to standard Schedule 40 DWV PVC pipe?
Yes. It is molded PVC and joins by solvent weld at the hub end, so it bonds to PVC DWV pipe of the matching nominal size using standard PVC primer and cement. Cut square, deburr, dry fit, then prime and cement. Do not attempt to solvent weld it to ABS pipe; that is a transition that calls for a mechanical coupling.
4) Should I use a street elbow or a regular hub x hub elbow for a tight vent turn?
Use the street version when the elbow has to land directly on another fitting. A hub x hub elbow needs a length of pipe between it and the next fitting, which adds two joints and an inch or two of run. The P333 street elbow's spigot end plugs straight into the adjoining hub, so it is the pick when you are turning a vent around a stud or joist and have no room for a nipple. If there is pipe between the two fittings anyway, a standard hub x hub elbow is the simpler part.
5) Which end of the street elbow goes onto the pipe coming out of the wall?
Depends on what you are joining. If the run out of the wall is pipe, slip that pipe into the hub end. If what you are meeting is another fitting's hub, that is where the spigot end goes. Dry fit before cementing, because a street fitting only assembles one direction and there is no coupling in between to give you a second chance at orientation.
6) Can I use this elbow on the drain side, or is it vent only?
It is sold as a vent elbow within the Spears DWV line and is used in waste and vent piping runs, vent stack assemblies, and plumbing rough-in. Vent-pattern elbows have a shorter sweep than drainage-pattern fittings, so for horizontal waste flow confirm your local code accepts a vent fitting at that point; on vertical vent piping and stack assemblies it is the intended part.
7) How is the Spears P333 vent elbow packaged for stocking a truck or warehouse?
Bulk cartons of 25 pieces. That suits contractors stocking a van by size and distributors breaking cases, rather than single-piece counter sales.
8) Is PVC the right material for a vent line that sees sewer gas and condensate?
PVC handles it. The elbow is molded PVC, which resists corrosion and chemical attack from waste and sewer gas, and it will not rust or scale the way metallic vent piping can. That is why DWV PVC holds up in both residential and commercial vent stacks over a long service life.
