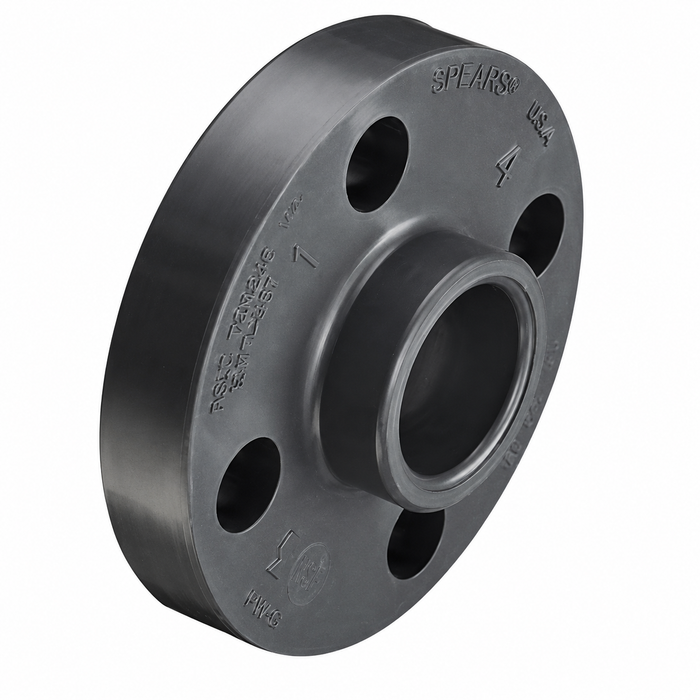

Spears PVC One-Piece Flange x Socket, Class 150
The Spears PVC One-Piece Flange x Socket, Class 150 is a one-piece PVC flange fitting designed for socket (SOC) connections in pressurized PVC piping systems. Molded from durable PVC for excellent corrosion and chemical resistance, this flange carries a Class 150, 150 PSI pressure rating, making it suitable for demanding water and process-piping applications where a reliable, long-lasting flanged connection is required. The one-piece body eliminates the need for a separate bolt ring, simplifying installation while maintaining a strong, leak-resistant joint. Available in a range of sizes and configurations to suit your piping requirements.
Key Features
- Connection Type: Socket (SOC) end connection engineered for solvent-welded PVC pipe assemblies, providing a secure, permanent bond.
- Durable Construction: Manufactured from PVC material for outstanding corrosion, chemical, and weathering resistance compared to metallic alternatives.
- Pressure Rating: Rated Class 150 with a 150 PSI pressure rating, suitable for use in pressurized PVC piping systems.
- One-Piece Flange Design: One-piece (FLG) construction integrates the flange face and body into a single molded component, reducing installation steps and potential leak points versus a two-piece ring-style flange.
- Socket-Style Piping Integration: Designed to mate directly with Schedule-rated PVC pipe via solvent welding at the socket end, then bolt directly to valves, pumps, tanks, or mating flanges.
Technical Specifications
- Product Type: PVC Fitting
- Department: Plumbing
- Product Group: PVC & CPVC Fittings
Typical Applications
- PVC Pressure Piping Systems
- Municipal and Industrial Water Distribution Systems
- Commercial and Institutional Plumbing Installations
- Flanged Connections to Valves, Pumps, and Tanks
- New Construction and Piping System Retrofits
- Process Piping Requiring Class 150, 150 PSI Rated Components
Why Spears?
Spears is a well-established manufacturer of PVC and CPVC piping components built for reliable, code-compliant performance in pressurized piping systems. This one-piece PVC flange combines corrosion-resistant PVC construction with a Class 150, 150 PSI pressure rating and a simplified one-piece design, delivering a dependable flanged connection for professional plumbing and piping installations. Choose Spears for consistent quality and dependable performance across PVC piping projects.
Variant Specifications
| Size | Model | SKU | MPN |
|---|---|---|---|
| 1-1/4" & 1-1/2" | Standard | 597122 | 851012 |
| 2" | 851020 | 851-020 | 851020 |
Manufacturer Resources
PVC Schedule 40 Fittings
Product Specs
- Product Material:
- PVC
- Connection Type:
- Socket
- Product Type:
- Flange
- Product Group:
- PVC & CPVC Fittings
- Department:
- Plumbing
- Product Subgroup:
- Fittings and Valves
Spears 851-012 – Frequently Asked Questions
1) Will a Spears PVC socket flange bolt up to a metal Class 150 flange on a pump or valve?
Yes. The flange is drilled Class 150, so the bolt circle matches other Class 150 flanges of the same nominal size on valves, pumps and tanks. Use a full-face gasket and flat washers, and pull the bolts down in a star pattern by hand, not with an impact gun, because PVC flange faces crack if you overtorque them.
2) How do I attach this flange to my PVC pipe, is it threaded?
No threads on the pipe end. It is a socket connection, so the pipe slides into the socket and is joined with PVC primer and solvent cement. That makes it permanent. If you want a removable connection at the pipe, you would need a threaded (FPT) flange instead.
3) What pressure is the Spears Class 150 PVC flange rated for?
150 PSI, at Class 150. That rating governs the joint, so if the pipe run is rated higher the flange is still the limiting component. It is intended for pressurized PVC water and process lines, not steam or compressed air.
4) Is this a two-piece Van Stone style flange or a solid one?
It is one-piece. The flange face and hub are molded as a single part, so there is no separate backing ring and no rotation to line up bolt holes. If you need to spin the flange to match a fixed bolt pattern on the mating equipment, a Van Stone two-piece style is the better choice; with this one you set the alignment when you solvent weld it.
5) Does the Spears PVC flange come with bolts and a gasket?
The flange is supplied as the fitting only. Bolts, nuts, washers and the gasket are separate items you order to suit the mating flange, so plan on a full-face gasket and a bolt set sized for Class 150 drilling in the same nominal size.
6) Can I use a PVC flange instead of a metal one on a corrosive process line?
That is the usual reason to pick it. PVC resists corrosion and chemical attack where steel or iron flanges rust or pit, and it will not scale in water service. The tradeoff is temperature and mechanical abuse: PVC is for ambient-temperature liquid service and will not take the torque or impact a metal flange shrugs off.
7) Where would I use a flange like this rather than just gluing the pipe straight through?
Anywhere you need to break the line later without cutting it: tie-ins at pumps, valves, tanks and equipment that has to come out for service, plus municipal and industrial water distribution and commercial plumbing tie-ins. On a straight buried or concealed run, a coupling is cheaper and there is nothing to bolt.
