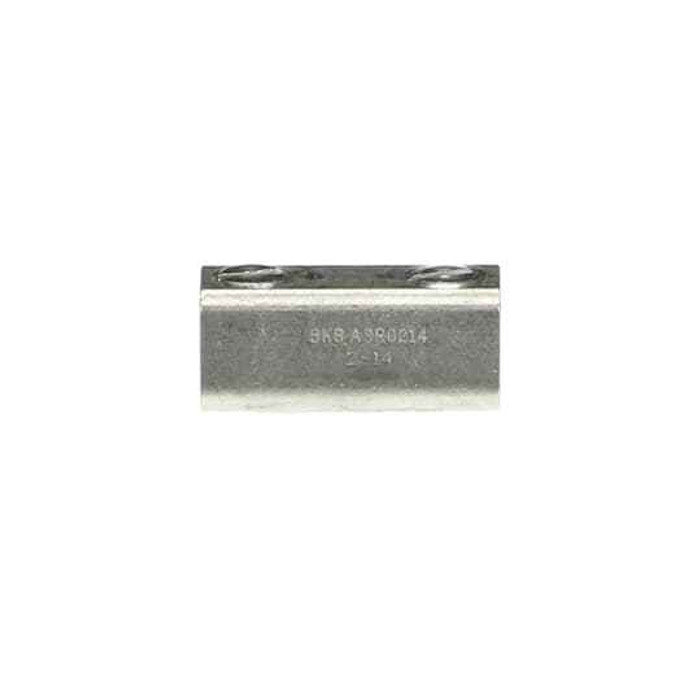

Blackburn ASR0214 SPLICE REDUCER SLD BARRIER 14-2

Blackburn Aluminum Splice Reducer with Solid Barrier 14-2 AWG Dual-Rated Terminal

(No reviews yet) Write a Review

Model: ASR0214
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.24
$11.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Blackburn Aluminum Splice Reducer with Solid Barrier 14-2 AWG Dual-Rated Terminal

Professional Wire Termination & Compression Splice Solution

Blackburn Aluminum Splice Reducer with Solid Barrier 14-2 AWG Dual-Rated Terminal delivers reliable wire termination and compression splice performance for electrical applications. This dual-rated terminal features aluminum construction with tin plated surface finishing and solid barrier design for professional wire or cable compression splice applications.

Professional Features & Benefits

  • 14-2 AWG Rating: Precisely sized for 14-2 AWG wire applications ensuring proper fit and reliable connections
  • Aluminum Construction: Lightweight yet durable material provides excellent conductivity and corrosion resistance
  • Tin Plated Surface: Enhanced surface finishing improves conductivity and prevents oxidation for long-term reliability
  • Solid Barrier Design: Integrated barrier provides separation and protection for dual-rated terminal applications
  • UL E9809 Listed: Meets rigorous safety and performance standards for professional electrical installations
  • Dual-Rated Performance: Versatile design accommodates multiple wire types and connection requirements
  • Compression Splice Technology: Secure mechanical connection method ensures reliable long-term performance

Technical Specifications

  • Country Of Origin: India (IN)
  • Department: Electrical
  • Material: Aluminum
  • Product Group: Wire Termination
  • Product Subgroup: Dual-Rated Terminals
  • Product Type: Dual-Rated
  • Selling Unit Of Measure: each
  • Standards: UL E9809
  • Surface Finishing: Tin Plated
  • Type2: Wire or cable compression splice

Professional Applications

  • Residential Electrical Systems
  • Commercial Building Wiring
  • Industrial Wire Termination
  • Electrical Panel Connections
  • Service Entrance Applications
  • Distribution System Splicing
  • Professional Electrical Installations

Why Choose Blackburn Quality?

Blackburn delivers professional-grade wire termination solutions with UL E9809 listing ensuring compliance with industry safety standards. The aluminum construction with tin plated finishing provides reliable performance and durability for demanding electrical applications.

Manufacturer Resources

Product Specs

Country Of Origin:
India (IN)
Product Group:
Wire Termination
Product Type:
Dual-Rated
Selling Unit Of Measure:
each
Standards:
UL E9809
Surface Finishing:
Tin Plated
Type2:
Wire or cable compression splice
Department:
Electrical
Product Subgroup:
Dual-Rated Terminals
Product Material:
Aluminum

Blackburn ASR0214 – Frequently Asked Questions

1) Can the Blackburn ASR0214 splice reducer be used on both copper and aluminum conductors?
Yes. The ASR0214 is a dual-rated connector, so it is made for use on both copper and aluminum conductors. The body is aluminum with a tin plated finish, which is the standard construction for AL9CU-style dual-rated splices and is what keeps the aluminum body from reacting against a copper conductor at the contact surface.
2) What wire sizes does the Blackburn ASR0214 splice reducer accept?
The ASR0214 covers a 14 to 2 AWG range, which is what makes it a reducer: it splices a larger conductor down to a smaller one within that span rather than joining two of the same size. If both of your conductors fall between 14 and 2 AWG, this is the right body.
3) Is this a crimp splice or a setscrew connector?
Compression. The ASR0214 is a wire or cable compression splice, so it gets installed with a crimping tool and the correct die, not tightened with a setscrew or a hex key. If you need a mechanical connector you can install with a wrench, this is not the part.
4) Can I use the ASR0214 to splice a #2 aluminum feeder to a smaller copper conductor?
That is exactly the job it is built for. Being dual rated, it takes aluminum on one side and copper on the other, and the 14 to 2 AWG range covers a #2 down to as small as #14. The barrier separates the two conductors inside the body. Crimp each side with the die called out for that conductor size.
5) What does the solid barrier do on an ASR0214 splice reducer?
The barrier is a solid wall cast into the middle of the connector bore. Each conductor butts against it, so neither wire can be pushed past center and each side gets the full compression length the connector is designed for. It also keeps a copper conductor from touching an aluminum one directly inside the splice. Practically, it means you get a positive stop when you insert the wire instead of guessing at depth.
6) Does the Blackburn ASR0214 need insulating after it is crimped?
Yes. It is a bare aluminum compression body with a tin plated finish and no insulation of its own, so the splice has to be covered with tape or heat shrink to the voltage of the circuit once the crimp is made. Budget for that material on the job.
7) Do splice reducers like this come in a bag or are they sold individually?
The ASR0214 is sold each, one connector per unit, so you order the exact count your job takes rather than a bulk pack. Handy when you only need a couple of reducing splices in a panel.
