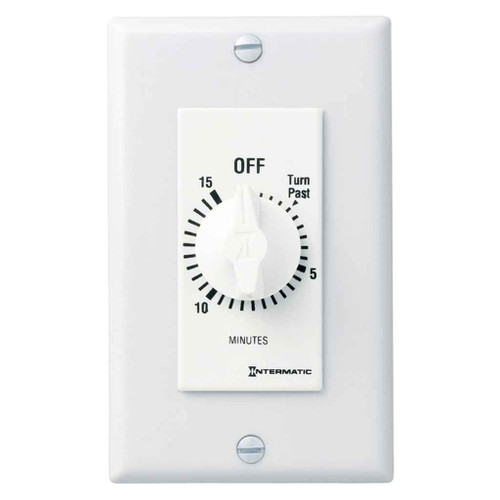

Intermatic FD15MC Decorator Spring Wound Countdown Timer 125-277V 15-Minute SPST Wall Switch

Intermatic FD15MC Decorator Spring Wound Countdown Timer 125-277V 15-Minute SPST Wall Switch

Professional spring-wound timing control for energy-efficient load management

The Intermatic FD15MC delivers reliable countdown timing control with decorator styling that replaces any standard or decorator wall switch. This spring-wound timer operates without electricity, providing 15-minute maximum timing cycles with SPST switching for 125-277 VAC applications at 50/60 Hz. The ivory finish and decorator profile integrate seamlessly into residential and commercial installations while automatically limiting ON time for energy-consuming loads.

Professional Features & Benefits

• Spring-Wound Operation: No electricity required to operate, ensuring reliable timing control even during power fluctuations or outages.
• 125-277 VAC Compatibility: Wide voltage range supports both residential and commercial applications with 50/60 Hz operation.
• 15-Minute Maximum Timer: Automatically breaks circuit at end of timing cycle to prevent energy waste and extend equipment life.
• SPST Configuration: Single-pole single-throw switching provides simple, reliable load control for various applications.
• No Neutral Required: Simplified wiring installation without neutral connection reduces installation complexity.
• Universal Load Compatibility: Works with incandescent, fluorescent, CFL, and LED lighting plus motor loads.
• Teeter-Type Terminals: Time-saving front terminal connections enable quick and easy installation.

Technical Specifications

• Applications: Air Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control;Motor Control
• Country Of Origin: Tunisia
• Depth: 1.25 in
• Input Voltage Rating Range S : 125-277 VAC, 50/60 Hz
• Marketing Description: The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wa
• Product Color: Ivory
• Product Height: 4.125 in
• Product Length: NA NA
• Product Weight: NA lbs
• Product Width: 1.75 in
• Warranty Period: 1-Year limited

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential bathroom ventilation fan control
• Commercial lighting energy management
• Outdoor security and landscape lighting
• Motor-driven equipment timing control
• Multi-unit property common area lighting
• Professional office energy conservation
• Retail establishment load management

Why Choose Intermatic Quality?

Intermatic delivers proven reliability with this 1-year limited warranty countdown timer featuring robust spring-wound mechanism and decorator styling. The wide 125-277 VAC compatibility and ivory finish ensure professional performance across diverse residential and commercial applications while the no-neutral-required design simplifies installation requirements.
