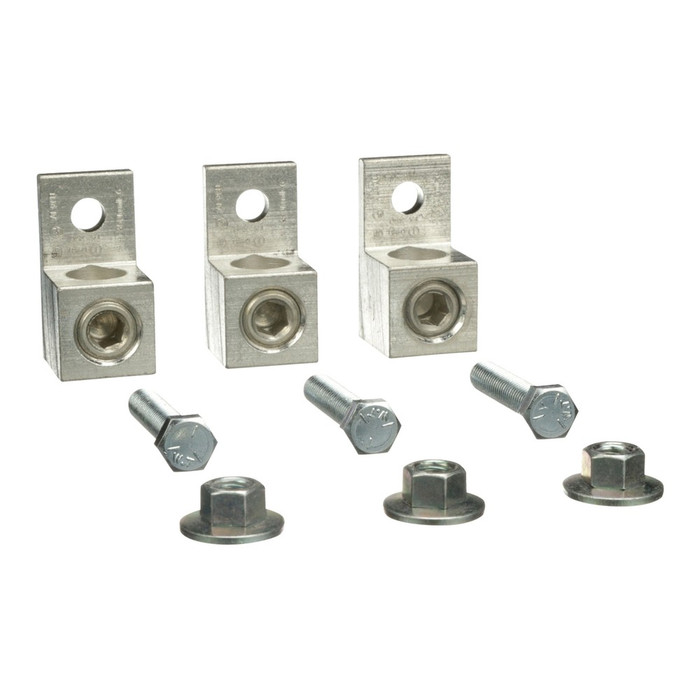

Square D DASKP Low Voltage Transformer Mechanical Lug Kit, Aluminum
The Square D DASKP Low Voltage Transformer Mechanical Lug Kit, Aluminum, from Schneider Electric provides the wire-termination hardware needed to connect primary and secondary conductors on compatible Square D low voltage general purpose transformers. This kit family is offered across a range of Motor FLA ratings from 250A up to 1000A, letting you match the lug kit to the transformer and drive application at hand. Every kit in the family includes 6 mechanical lugs sized for AWG 6 to 350 kcmil stranded primary conductors and 2 kcmil to 1/0 AWG secondary conductors, along with the mounting nuts and bolts required for a complete installation. Built with aluminum lug bodies, these kits are engineered to withstand the stress of DC drive current spikes per IEEE 519-1992 and UL Standard 1561 design guidance.
Key Features
- Motor FLA Range: Available across 250A, 400A, 600A, and 1000A Motor FLA ratings to match your transformer and drive application.
- Lug Quantity: Kit includes 6 mechanical lugs for primary and secondary conductor termination.
- Wire Range: Accepts AWG 6 to 350 kcmil stranded primary conductors and 2 kcmil to 1/0 AWG secondary conductors.
- Durable Construction: Aluminum lug body for long-term reliability.
- Complete Hardware Set: Includes mounting nuts and bolts along with the mechanical lugs for a full installation kit.
- Transformer Compatibility: Designed for 1-phase or 3-phase Delta primary and 1-phase or 3-phase Delta secondary low voltage transformer configurations.
- Rated Performance: Engineered for the stress of DC drive current spikes, per IEEE 519-1992 and UL Standard 1561 design guidance.
Certifications & Compliance
- RoHS Compliant (EU)
- Toxic Heavy Metal Free
- Mercury Free
- Free of Substances of Very High Concern (SVHC) Above Threshold
Technical Specifications
- Country of Origin: United States
- Material: aluminium
- Warranty: 18 months
- Toxic Heavy Metal Free: Yes
- Mercury Free: Yes
- Sustainable Packaging: No
- With Recycled Cardboard: Yes
- ROHS Eur In Scope: Yes
- China ROHS Label: 1
- Reach Free Of Svhc: Yes
- Returnability: Yes
Typical Applications
- Low Voltage General Purpose Transformer Installations
- Commercial and Industrial Electrical Systems
- Transformer Primary and Secondary Lug Termination
- DC Drive Circuit Applications
- Panelboard and Switchgear Transformer Wiring
Why Square D?
Square D by Schneider Electric backs this Mechanical Lug Kit family, spanning 250A to 1000A Motor FLA ratings, with an 18-month warranty and a design built to meet IEEE 519-1992 and UL Standard 1561 guidance for demanding DC drive current spikes. With aluminum construction, mercury-free and toxic-heavy-metal-free materials, and RoHS compliance, this kit delivers reliable, code-compliant termination hardware for low voltage transformer installations.
Manufacturer Resources
Product Specs
- Product Type:
- Equipment Lug Kit
- Country of Origin:
- United States
- Listing:
- RoHS Compliant
- Product Material:
- Aluminum
- Department:
- Electrical
- Product Group:
- Wire Connectors & Terminals
- Amperage Rating:
- 250A - 1000A
- Product Subgroup:
- Lugs & Terminals
Square D DASKP250 – Frequently Asked Questions
1) What wire sizes do the Square D DASKP transformer lug kits accept?
The Square D mechanical lug kit takes AWG 6 through 350 kcmil stranded conductors on the primary side, and 2 kcmil to 1/0 AWG on the secondary. Six lugs come in the kit, enough to land primary and secondary on a 1-phase or 3-phase Delta configuration. Bodies are aluminum.
2) Which Square D lug kit part number do I order, DASKP250, DASKP400, DASKP600 or DASKP1000?
Pick by the ampere rating of the transformer circuit you are terminating. Four kits are offered: DASKP250 for 250A, DASKP400 for 400A, DASKP600 for 600A and DASKP1000 for 1000A. Same kit concept across all four, aluminum mechanical lugs with the nuts and bolts included, so the ampere rating is the only selection you make.
3) Will this lug kit work on a 3-phase Delta transformer?
Yes. The kit covers 1-phase or 3-phase Delta primary and 1-phase or 3-phase Delta secondary arrangements on Square D low voltage general purpose transformers. Six lugs is what makes that work for three-phase primary and secondary landings.
4) Can I use this Square D kit on a disconnect switch or a load center neutral bar?
No. The DASKP kit is transformer termination hardware for Square D low voltage general purpose transformers, not switch or panel hardware. For a disconnect switch you want a switch-specific kit such as the ABB OT/OS400 Series replacement disconnect switch lug kit, and for a load center neutral/ground bar the ABB TLK2 Series PowerMark Gold neutral/ground lug kit is the CU/AL option.
5) Can an ABB TLK2 PowerMark Gold neutral/ground lug kit be used to terminate a low voltage transformer's primary and secondary conductors?
No. The ABB TLK2 is a neutral/ground lug kit for PowerMark Gold loadcenters, built in CU/AL for bonding neutral and ground conductors in that panel. The Square D DASKP mechanical lug kit is the phase-conductor termination hardware for compatible Square D low voltage general purpose transformers, supplying 6 aluminum mechanical lugs plus the mounting nuts and bolts, with a range of AWG 6 to 350 kcmil stranded on the primary side and 2 kcmil to 1/0 AWG on the secondary. If the job is terminating transformer primary and secondary conductors, the DASKP kit is the one that matches; the TLK2 belongs in a loadcenter neutral/ground application.
6) What is the difference between a disconnect switch lug kit like the ABB OZXA-400 and the Square D DASKP transformer lug kit?
They terminate at different pieces of equipment. The ABB OZXA-400 is a replacement disconnect switch lug kit for the OT/OS400 series switch, so it mounts to that switch body. The Square D DASKP kit is transformer termination hardware for 1-phase or 3-phase Delta primary and 1-phase or 3-phase Delta secondary low voltage general purpose transformers, with 6 aluminum lugs and the mounting nuts and bolts included. Lug kits are not interchangeable across equipment families - match the kit to the make and series of the device you are landing conductors on.
7) Does the Square D transformer lug kit include mounting hardware or do I need to supply bolts?
Mounting nuts and bolts ship with the kit along with the six mechanical lugs, so nothing extra is needed to land the conductors. You still supply the conductors themselves and any antioxidant compound your spec calls for on aluminum terminations.
8) Are the Square D DASKP lugs aluminum or copper, and can I land copper conductors in them?
The lug bodies are aluminum. Copper conductor use is not a rating we state for this kit, so go by the transformer termination markings. If your job requires a dual-rated CU/AL terminal, the ABB TLK2 Series kit is listed CU/AL, though that one is a neutral/ground lug kit for PowerMark Gold panels rather than transformer hardware.
9) Is this lug kit suitable for a transformer feeding a DC drive?
Yes, that is a stated application. The kit is built for the stress of DC drive current spikes, following IEEE 519-1992 and UL Standard 1561 design guidance, which is the usual concern on drive-isolation and harmonic-duty transformer installations.
10) If I am standardizing on aluminum-body lugs, how does the Square D DASKP compare with the ABB TLK2?
The Square D DASKP kit uses an aluminum lug body throughout. The ABB TLK2 is specified CU/AL, meaning it is rated for either copper or aluminum conductors in a neutral/ground role. The two also serve different points in the system: the DASKP lands transformer primary and secondary phase conductors, while the TLK2 serves PowerMark Gold neutral and ground bonding. Standardizing on conductor material is worth doing, but the kit still has to match the equipment it bolts into.
11) Is the Square D DASKP lug kit RoHS compliant and where is it made?
RoHS compliant, mercury free, toxic heavy metal free, and free of SVHC above threshold. Country of origin is the United States, which matters for buy-American and domestic-content procurement on public work.
