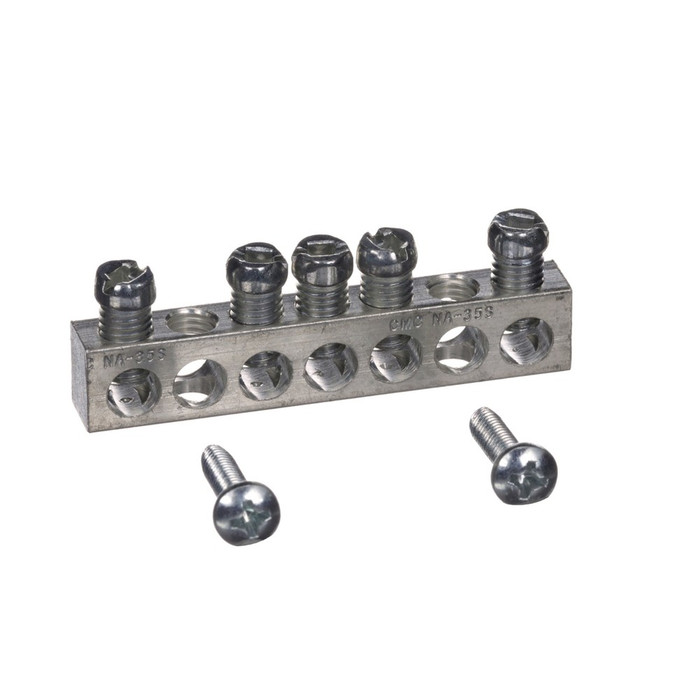

Square D PK Series Ground Bar Kit, QO/Homeline Load Center Accessory

Square D PK Series Ground Bar Kit, QO/Homeline Load Center Accessory

(No reviews yet) Write a Review

Model: PK5GTA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D PK Series Ground Bar Kit, QO/Homeline Load Center Accessory

The Square D PK Series ground bar kit is a load center accessory engineered for QO and Homeline panelboards, giving contractors and electricians a UL 67 Listed, CSA rated equipment ground bar assembly for residential, commercial, and industrial electrical systems. This kit is available in a range of ground bar configurations from 5 terminals up to 23 terminals, allowing installers to select the terminal count that matches the panelboard and circuit load they are wiring. Every configuration in the PK Series is compatible with any Square D QO circuit breaker and installs with straight-in wiring that saves wire, labor, and installation time in the field. As a genuine Square D / Schneider Electric accessory, this ground bar kit is built to protect electrical systems, equipment, and personnel to the same standards as the QO and Homeline load centers it serves.

Key Features

  • Ground Bar Configuration: Available with 5 or 23 terminals to match QO/Homeline load center wiring needs.
  • Straight-In Wiring: Straight-in wiring design saves wire, labor, and installation time in the field.
  • Fully Distributed Neutral Bar: Allows for QO plug-on neutral circuit breakers to be installed in any space.
  • Broad Compatibility: Compatible with any Square D QO circuit breaker and QO/Homeline load center platforms.
  • Included Hardware: Provided with 2 mounting screws for a complete accessory installation.
  • Wire Range: Accepts AWG 14 through AWG 4 copper conductors and AWG 12 through AWG 4 aluminum conductors.
  • Tightening Torque: Mounting screw torque of 30 lb.in; wire terminal torque of 20 lb.in for AWG 14-AWG 10 copper and AWG 12-AWG 10 aluminum conductors.

Certifications & Compliance

  • UL 67 Listed
  • CSA Rated
  • Complies with IEC Standards
  • RoHS EUR Compliant
  • Mercury Free
  • Toxic Heavy Metal Free

Technical Specifications

  • Range Of Product: QO
  • Terminal Options: 5 Terminals or 23 Terminals
  • Warranty: 18 months
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes
  • Country of Origin: United States

Typical Applications

  • Residential QO/Homeline Load Center Wiring
  • Equipment Ground Bar Installation in Panelboards
  • Panelboard and Load Center Accessory Upgrades
  • New Construction Electrical Installations
  • Panel Renovation and Retrofit Projects

Why Square D?

Square D, a Schneider Electric brand, backs this PK Series ground bar kit with UL 67 Listed and CSA rated construction so electricians can trust it to perform reliably within QO and Homeline load centers, whether they choose the 5-terminal or 23-terminal configuration. The straight-in wiring design and fully distributed neutral bar reflect Square D's focus on installation efficiency, while compliance with RoHS, mercury-free, and toxic-heavy-metal-free standards supports code-compliant, environmentally responsible electrical work across the full PK Series lineup.

Manufacturer Resources

Product Specs

Product Type:
Ground Bar Kit
Series:
PK Series
Standards:
UL 67, CSA, IEC
Listing:
UL Listed
Country of Origin:
United States
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Power Distribution

Square D PK5GTA – Frequently Asked Questions

1) How many terminals does the Square D PK ground bar kit come with?
Two sizes: a 23-terminal bar (PK23GTA) and a 5-terminal bar (PK5GTA). Pick the 23-terminal version when you are landing a full panel of equipment grounds in a new or retrofitted load center, and the 5-terminal version when you only need to pick up a handful of grounds in a small panel or after a subpanel addition.
2) Is the Square D PK ground bar kit UL Listed for panel inspections?
It is UL 67 Listed and CSA rated, and complies with IEC standards. UL 67 is the panelboard standard, so the kit is evaluated as part of the load center assembly rather than as a loose accessory, which is what an inspector looks for on a field-installed ground bar.
3) Can I use this ground bar kit in an Eaton or ABB panel?
No. The PK Series kit is engineered for Square D QO and Homeline load centers, and the mounting holes and screws are matched to those panels. For an Eaton CH load center, the Eaton CH Ground Bar Kit with 21 terminals is the correct accessory, and ABB panels take the ABB TGK Series 4-hole equipment ground bar kit.
4) Can an Eaton CH ground bar kit be used in a Square D QO or Homeline load center?
No. The Eaton CH Ground Bar Kit is a 21-terminal aluminum bar built for Eaton's CH panel platform, and its mounting pattern follows that enclosure. The Square D PK Series ground bar kit is the equipment ground bar assembly engineered for QO and Homeline load centers, ships with 2 mounting screws, and is compatible with any Square D QO circuit breaker. For a QO or Homeline panel, use the PK kit - PK23GTA for 23 terminals or PK5GTA for 5.
5) I only need to land a few equipment grounds in a small panel - is there a smaller option than the 23-terminal Square D ground bar?
Yes. The Square D PK Series kit is offered as PK5GTA with 5 terminals alongside the 23-terminal PK23GTA, so a subpanel or a small retrofit that only needs a handful of grounds does not require the full 23-terminal bar. Both are the same PK Series accessory for QO and Homeline load centers with the straight-in wiring design. If the count is even smaller, the ABB TGK Series kit is a 4-hole equipment ground bar, but it is an ABB accessory rather than a Square D one.
6) What is the difference between the ABB TGK ground bar kit and the Square D PK ground bar kit?
The ABB TGK Series kit is a 4-hole equipment ground bar, so it lands four conductors. The Square D PK Series kit is a QO/Homeline load center accessory offered in 5-terminal and 23-terminal configurations, accepts AWG 14 through AWG 4 copper and AWG 12 through AWG 4 aluminum conductors, and is UL 67 Listed and CSA rated. Choose by the panel brand the bar is mounting into and by how many grounds the job actually has.
7) Is the Square D PK ground bar kit a genuine Schneider Electric part and where is it made?
It is a genuine Square D / Schneider Electric accessory, made in the United States. For property managers and institutional buyers standardizing a building on QO or Homeline gear, that keeps the panel listing intact rather than relying on a third-party bar.
8) Is this ground bar kit RoHS compliant and mercury free?
Yes. The PK Series kit is RoHS EUR compliant, mercury free, and free of toxic heavy metals, which is what government, healthcare, and education procurement specs usually ask for on electrical accessories.
