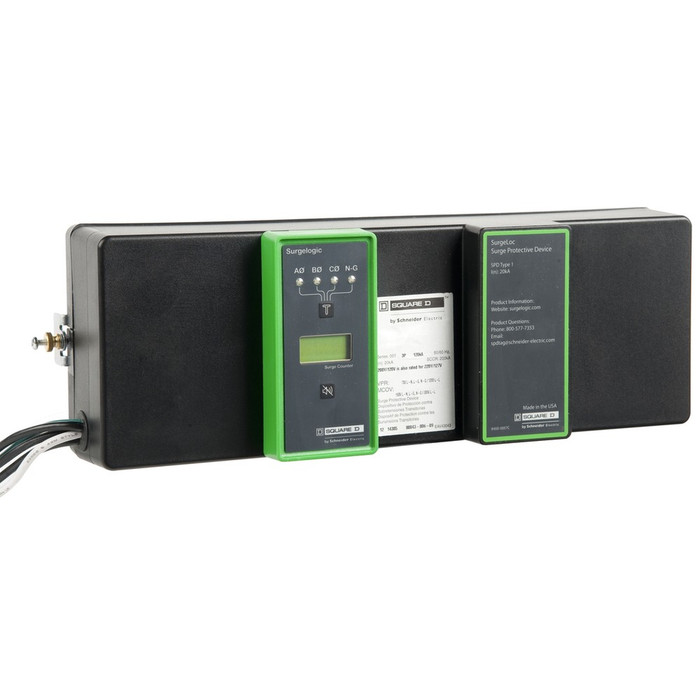

Square D Surgelogic SSP0 Series Type 1 Surge Protection Device

Square D Surgelogic SSP0 Series Type 1 Surge Protection Device

(No reviews yet) Write a Review

Model: SSP01SBA20D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,126.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D Surgelogic SSP0 Series Type 1 Surge Protection Device

The Square D Surgelogic SSP0 Series is an internally mounted Type 1 surge protection device (SPD) engineered for service entrance and critical branch panel surge suppression. This family is available in two voltage/phase configurations — 120/240VAC, 1-Phase 3-Wire and 208Y/120VAC, 3-Phase 4-Wire — so contractors can match the SSP0 to the panelboard configuration on hand. Every SSP0 in the series shares a 200kA per-phase surge current rating, a Uc (maximum continuous operating voltage) of 150V, and a NEMA 1 degree of protection. As the industry's first field-installable, internally mounted SPD for NQ panelboards, the SSP0 series installs in two minutes or less, giving electrical contractors a fast, code-compliant way to add surge suppression during new installs or panel retrofits.

Key Features

  • Surge Current: 200kA per phase for high-energy transient protection, shared across every option in the series.
  • Voltage / Phase Configuration: Choose from 120/240VAC 1-Phase 3-Wire or 208Y/120VAC 3-Phase 4-Wire to match your service entrance or branch panel.
  • SPD Type: Type 1 surge protection device, field installable internally in NQ panelboards.
  • Uc Rating: 150V maximum continuous operating voltage.
  • NEMA Rating: NEMA 1 degree of protection.
  • Quick Installation: Installs in two minutes or less for fast field mounting and retrofitting.
  • Signaling: Audible, visual, and remote signaling for surge event status monitoring.
  • Service Life: Average life duration of 10 years.

Certifications & Compliance

  • Mercury Free
  • RoHS EUR Compliant with Exemptions
  • Prop 65: Contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (www.P65Warnings.ca.gov)

Technical Specifications

  • Mercury Free: Yes
  • Packaging Without Single Use Plastic: Yes
  • ROHS Eur In Scope: Yes
  • Serviceability: No
  • China ROHS In Scope: No
  • Returnability: Yes
  • Country of Origin: MEX
  • Device Type: Surge Protection and Power Conditioning - Surge Protection Devices

Typical Applications

  • Service Entrance Surge Suppression
  • Critical Branch Panelboard Protection
  • NQ Panelboard Retrofit Installations
  • Commercial Electrical Distribution Systems
  • Field Installation and Panel Upgrades

Why Square D?

Square D's Surgelogic SSP0 Series delivers reliable, code-compliant surge protection with a 200kA per-phase rating, mercury-free construction, and RoHS-compliant materials, across both 120/240VAC 1-Phase and 208Y/120VAC 3-Phase configurations. Built for fast field installation and backed by audible, visual, and remote signaling, it gives contractors and facility owners confidence in long-term, dependable surge event management.

Manufacturer Resources

Product Specs

Product Type:
Surge Protective Device
Voltage Rating:
120/240VAC
Series:
Surgelogic SSP0
Department:
Electrical
Product Group:
Circuit Protection
Product Subgroup:
Surge Protection
Product Width:
17.9 in
Product Height:
4.4 in
Product Depth:
6.89 in

Square D SSP01SBA20D – Frequently Asked Questions

1) Will the Square D Surgelogic SSP0 work on a 208Y/120V three-phase panel?
Yes, order the SSP02SBA20D. The SSP0 series comes in two configurations: SSP01SBA20D for 120/240VAC 1-Phase 3-Wire, and SSP02SBA20D for 208Y/120VAC 3-Phase 4-Wire. Both carry the same 200kA per-phase surge rating and a 150V Uc. Match the part to the panel's service configuration, since the two are not interchangeable.
2) Can I add surge protection to an existing NQ panelboard without replacing the panel?
That is exactly what the Surgelogic SSP0 is for. It is a field-installable, internally mounted Type 1 SPD for NQ panelboards, and Square D states it installs in two minutes or less, so it suits retrofits as well as new installs. Pick the version that matches the existing panel voltage and phase.
3) Is the SSP0 surge device Type 1 or Type 2, and can it go on the line side of the main?
The Surgelogic SSP0 is a Type 1 surge protective device. Type 1 units are permitted on the line side of the service disconnect as well as on the load side, which is why Square D lists it for service entrance suppression and critical branch panelboard protection.
4) How does the Square D SSP0 compare to a breaker-style surge device like the Eaton BR units?
Different animals. The SSP0 is a Type 1 device rated 200kA per phase, mounted internally in an NQ panelboard and suited to service entrance duty. Eaton's BRNSURGE10 is a two-pole 10kA surge protective device in the BR Series, and the BRPSURGE is a two-pole plug-on neutral unit, both of which occupy breaker spaces in an Eaton BR loadcenter. Use the Eaton parts for BR-style residential and light commercial panels; use the SSP0 where you need the higher per-phase surge rating in a Square D NQ panel.
5) Will the SSP0 hold up on a 277/480V system?
No. The SSP0 is built for 120/240VAC 1-Phase 3-Wire or 208Y/120VAC 3-Phase 4-Wire systems, with a maximum continuous operating voltage (Uc) of 150V. A 277/480V service needs an SPD rated for that voltage class.
6) What is the difference between the Square D SSP0 surge device and the Eaton BRNSURGE10?
They protect at different scales and mount differently. The Surgelogic SSP0 is a Type 1 surge protective device rated 200kA per phase with a 150V Uc, mounted internally inside an NQ panelboard and offered in 120/240VAC 1-Phase 3-Wire and 208Y/120VAC 3-Phase 4-Wire configurations. The Eaton BRNSURGE10 is a two-pole 10kA surge protective device in the BR series, which installs in a BR load center breaker space rather than as an internally mounted assembly. Match the device to the panel brand you are working in: the SSP0 is built for NQ panelboards, the BRNSURGE10 for Eaton BR.
7) I have an Eaton BR load center with plug-on neutral. Can I use a Square D SSP0?
No. The Surgelogic SSP0 is a field-installable, internally mounted surge protective device engineered for Square D NQ panelboards, so it is not the part for an Eaton BR enclosure. For a plug-on neutral BR load center, the Eaton BRPSURGE is the two-pole plug-on neutral surge protective device in the BR family.
8) I need surge protection on a 208Y/120V three-phase panel. Will an Eaton BR surge device work?
The Eaton BRNSURGE10 and BRPSURGE are both two-pole surge protective devices in the BR family, which covers single-phase breaker positions. For a 208Y/120VAC 3-Phase 4-Wire panel, the Square D Surgelogic SSP0 is offered in that configuration as SSP02SBA20D, rated 200kA per phase with a 150V Uc and NEMA 1 protection.
9) How much room do I need inside the enclosure for the SSP0?
Plan for a unit measuring 17.9 x 6.89 x 4.4 inches (width, depth, height as published). Since it mounts internally in the panelboard, confirm the gutter and interior space in your NQ enclosure will take those dimensions before you commit.
10) Can the SSP0 be installed outdoors or in a washdown area?
No. The SSP0 carries a NEMA 1 degree of protection, which is indoor, dry-location only. For outdoor or wet locations you need the SPD housed in an enclosure rated for that environment.
11) How will my maintenance staff know if the surge device has failed?
The SSP0 provides audible, visual, and remote signaling for surge event status, so a failed or end-of-life unit can be caught at the panel or reported back to a monitoring point. Square D lists an average life duration of 10 years and states the device is not serviceable, so when it signals end of life it gets replaced rather than repaired.
12) Which surge device takes up a breaker space instead of being mounted inside the panel?
The Eaton BRPSURGE is a two-pole plug-on neutral surge protective device that snaps onto the panel's plug-on neutral bus like a breaker, and the Eaton BRNSURGE10 is likewise a two-pole BR series surge device. The Square D Surgelogic SSP0 instead mounts internally in an NQ panelboard as a Type 1 device and installs in two minutes or less, measuring 17.9 inches wide by 6.89 inches deep by 4.4 inches high, so confirm you have the interior room for it.
13) Does the Square D SSP0 or the Eaton BR surge devices offer surge event status indication?
The Surgelogic SSP0 includes audible, visual, and remote signaling so a facility can monitor surge event status and know when the device has reached end of life; its average life duration is stated as 10 years. The Eaton BRNSURGE10 and BRPSURGE are described as two-pole BR series surge protective devices, so if remote monitoring is part of your spec the SSP0 is the one that carries it.
14) Does the Square D SSP0 surge device contain mercury or meet RoHS?
Mercury free, and RoHS EUR compliant with exemptions. It ships in packaging without single-use plastic and is made in Mexico. Note the Prop 65 notice: it contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
