Spec Sheet
Product Specs
- Actuator:
- Type E, Extended
- Actuator Color:
- Black
- Legend:
- ON
- Letter Size:
- 1/8 inch high
- Notes:
- Use with E30EA through EM, FA through FM, and JA through JM operators
- Product Category:
- Button
- Series:
- E30
- Special Features:
- Used with Pushbutton, square multifunction
- Used With:
- Pushbutton, square multifunction
- Department:
- Electrical
- Product Type:
- 30.5 mm, Square Multifunction Watertight/Oiltight
- Product Length:
- 1.3 IN
- Product Details:
- 30.5 mm, Square Multifunction Watertight/Oiltight
- Product Height:
- .3 IN
- Product Weight:
- .1 LB
- Product Width:
- .3 IN
B-LINE E30KE119 – Frequently Asked Questions
1) Which E30 operators does the B-Line E30KE119 button fit?
The E30KE119 button is made for B-Line E30 30.5 mm operators in the E30EA through EM, FA through FM, and JA through JM ranges. It is a replacement or field-change button for square multifunction pushbutton operators, so if the operator on your panel is outside those ranges, this button is not the right part.
2) Is the E30KE119 a complete pushbutton switch or just the button?

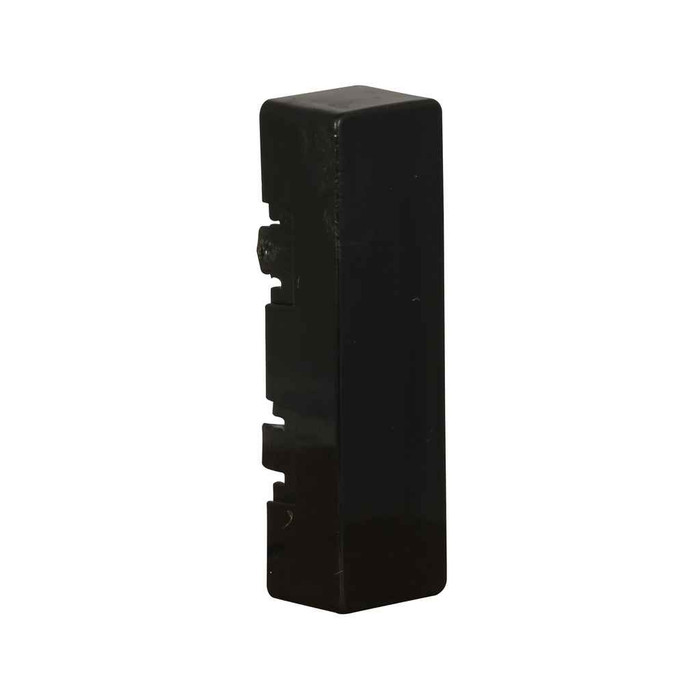

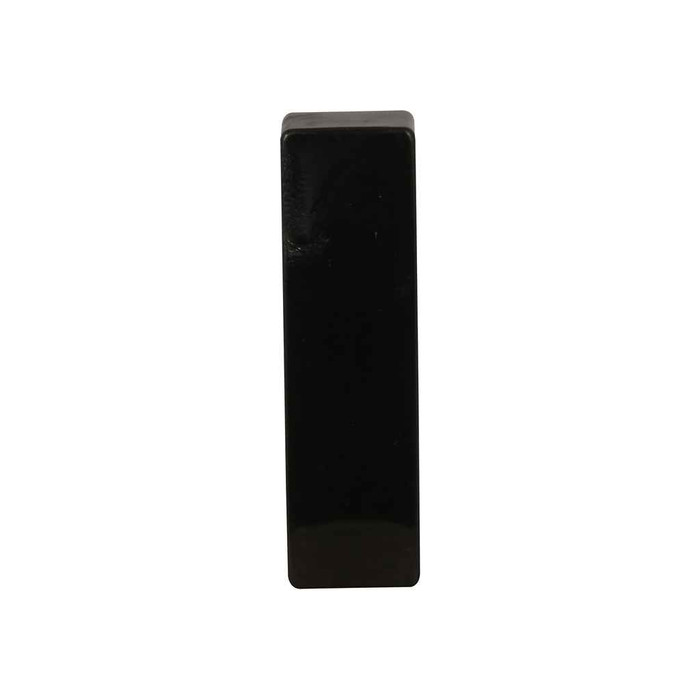

Just the button. The E30KE119 is the actuator cap only, a Type E extended black button legended ON. You mount it on an existing E30 square multifunction operator, which supplies the contact blocks and the panel mounting. Ordering this alone will not give you a working switch.
3) Can I use the E30KE119 to relabel an existing pushbutton instead of replacing the whole operator?
Yes, that is the point of it. Swapping the button changes the legend to ON and the actuator style to Type E extended black without touching the operator body, contact blocks, or wiring, provided the operator is an E30 square multifunction unit in the EA-EM, FA-FM, or JA-JM range.
4) Will a 30.5 mm B-Line E30 button work in a wet or oily plant environment?
The E30 square multifunction platform this button belongs to is rated watertight/oiltight at the 30.5 mm panel opening, which is why it gets used on machine tool and washdown-area control stations. The rating comes from the operator and seal assembly, so the button has to be fitted to a matching E30 square multifunction operator to keep that seal.
5) What is an extended button and when should I use it instead of a flush one?
An extended actuator stands proud of the operator bezel so it can be hit quickly, with a glove on, or without looking. Type E extended is what the E30KE119 uses. If the concern is accidental actuation, a flush or guarded button on the same E30 operator is the safer choice; extended is for frequent, deliberate start or ON commands.
6) What is the exact part number to order for the B-Line ON pushbutton button?
Order manufacturer part number E30KE119, B-Line E30 series. That single number covers the black Type E extended button with the ON legend.
7) What does the ON legend look like on the E30KE119 and is it readable across a machine bay?
The legend reads ON in 1/8 inch high lettering on a black extended button. That letter height is meant for arm's-length reading at the control station, not for long sight lines across a shop floor. For a station a operator stands away from, legend plates around the operator are the better route.
8) How big is the E30KE119 button and how much does it weigh for a parts kit?
It measures .3 x 1.3 x .3 inches and weighs .1 lb, so it ships and stocks as a small spare. MRO crews standardizing E30 stations commonly bin several legend variants alongside it.
