BEST BEST CB1901RNRP Steel Full Mortise Concealed Bearing Heavy Weight Hinge With Non-Removable Pin BEST-CB1901RNRP

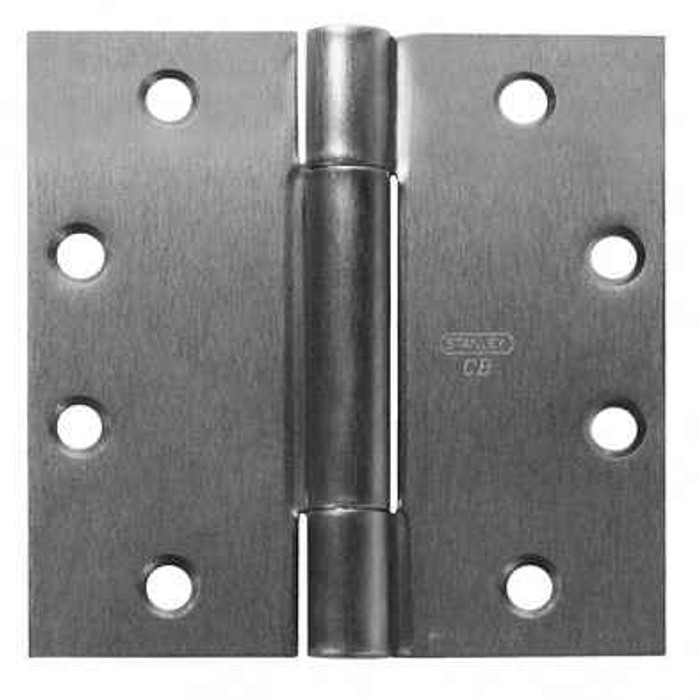

BEST CB1901RNRP Steel Full Mortise Concealed Bearing Heavy Duty Hinge with Non-Removable Pin

(No reviews yet) Write a Review

Model: BEST-CB1901RNRP-652-4.5x4.5
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST CB1901RNRP Steel Full Mortise Concealed Bearing Heavy Duty Hinge with Non-Removable Pin

Professional Heavy-Duty Door Hinge Solution

The BEST CB1901RNRP is a heavy-duty steel full mortise hinge engineered for robust door applications requiring exceptional strength and reliability. Featuring concealed LifeSpan® bearings for smooth, silent operation and a non-removable pin design for enhanced security, this hinge is specifically designed for heavy doors and high-frequency applications such as entrance doors to office buildings, stores, and public buildings. The full mortise design provides concealed installation with a clean, polished appearance while delivering commercial-grade durability.

Professional Features & Benefits

  • Heavy-Duty Steel Construction: Durable steel construction provides exceptional strength and reliability for demanding commercial door applications.
  • Concealed LifeSpan® Bearing System: Maintenance-free concealed bearings ensure smooth, silent operation with no oil, grease, or maintenance required for long-term reliability.
  • Non-Removable Pin Design: Enhanced security feature prevents unauthorized pin removal while maintaining easy installation with hole in bottom tip for proper pin positioning.
  • Full Mortise Installation: Concealed mounting design provides clean, professional appearance with template screw hole locations for use on wood or hollow metal doors and frames.
  • High-Frequency Application Rating: Specifically engineered for heavy doors and high-traffic applications including entrance doors to office buildings, stores, and public buildings.
  • Reversible Design: Flush tips and pins are reversible for flexible installation requirements and door handing options.
  • LifeSpan® Limited Lifetime Warranty: Comprehensive manufacturer warranty provides long-term confidence and protection for commercial installations.
  • Professional Finish Options: Available in 652 satin chromium plated finish for durability and aesthetic appeal in commercial environments.

Technical Specifications

  • Bearing Type: Concealed Bearing
  • Commercial/Residential: Commercial
  • Corner Style: Square Corners
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hinge Pin Type: Non-Removable
  • Hinge Type: Full Mortise
  • Knuckles: 3
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: CB1901RNRP
  • Product Subgroup: Surface and Mortise Hinges
  • Product Type: Full Mortise Hinges
  • Series: Architectural Hinges
  • Subcategory: Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST door hinge products deliver professional-grade reliability with durable steel construction and concealed LifeSpan® bearing technology requiring no maintenance for long-term performance. The LifeSpan® limited lifetime warranty provides comprehensive protection for commercial installations. Engineered for demanding commercial applications where dependable performance and enhanced security are essential.

Product Specs

Subcategory:
Hinges
Series:
Architectural Hinges
Hinge Type:
Full Mortise
Knuckles:
3
Bearing Type:
Concealed Bearing
Corner Style:
Square Corners
Product Group:
Door Hinges and Pivots
Product Subgroup:
Surface and Mortise Hinges
Product Type:
Full Mortise Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Hinge Pin Type:
Non-Removable
Product Model:
CB1901RNRP
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

BEST BEST-CB1901RNRP-652-4.5x4.5 – Frequently Asked Questions

1) Will the BEST CB1901RNRP hinge work on an exterior entrance door that gets constant traffic?
That is exactly what the CB1901RNRP is built for. It is a heavy duty steel full mortise hinge with concealed bearings, rated commercial, and the description calls out entrance doors to office buildings, stores and public buildings as its application. The concealed bearing carries the door weight instead of a plain bearing knuckle wearing metal on metal, so it holds up on heavy leaves that swing hundreds of times a day. On a medium traffic interior office door you would be paying for capacity you never use.
2) Does the CB1901RNRP non-removable pin actually stop someone lifting the door off from the outside?
The NRP suffix on the CB1901RNRP means non-removable pin, and it is there for out-swinging doors where the barrel sits on the unsecured side. The pin cannot be driven out to lift the leaf off its hinges. There is a hole in the bottom tip for setting the pin during installation. If your door swings inward, the hinge barrel is already protected and the NRP feature buys you nothing.
3) Does the CB1901RNRP fit a hollow metal frame, or is it wood doors only?
Both. The CB1901RNRP uses template screw hole locations for wood or hollow metal doors and frames, which means the holes land on the industry template pattern rather than a manufacturer-specific one. Square corners, so your mortise pockets need to be square cut, not radius routed. A radiused pocket from a router will leave gaps at the corners unless you square them out.
4) I need a heavy duty 4-1/2 inch hinge but not the non-removable pin. What else do you carry?
For a heavy duty 4-1/2 x 4-1/2 square corner hinge without the NRP feature, the McKinney TCA3386 is the closest match in the same leaf size. If you want to stay in the concealed bearing family, the Stanley Security CB199 is a heavy weight full mortise concealed bearing hinge in the same Architectural Hinges series. Step down to standard duty and the Don-Jo BB74545 (steel) and BB94545 (stainless steel) are both 4-1/2 x 4-1/2 square corner ball bearing hinges.
5) Can I run power through the CB1901RNRP for an electric strike or maglock?
No. The CB1901RNRP is a mechanical hinge with no through-wire provision. If the opening needs power transferred from frame to door for an electric lock, request-to-exit device or card reader, the ACSI 5BB1 is a 4-1/2 x 4-1/2 full mortise ball bearing hinge with a concealed electric through-wire (4 wire, 28 gauge) in the same leaf size, so it swaps into the same hinge pocket.
6) What is the concealed bearing hinge to use on a lighter interior door instead of the CB1901RNRP?
The Stanley Security CB1960R is the standard weight concealed bearing option. It is a full mortise concealed bearing hinge in the Architectural Hinges series rated medium duty, where the CB1901RNRP is heavy duty. On an interior office or corridor door that does not see entrance-level traffic, the CB1960R covers the same mounting approach and the same maintenance-free bearing concept at a lighter weight class.
7) What is the closest equivalent to the BEST CB1901RNRP heavy duty concealed bearing hinge from another maker?
The Stanley Security CB199 full mortise concealed bearing heavy weight hinge is the closest match. Like the CB1901RNRP, it is a full mortise concealed bearing hinge rated heavy duty and belongs to the Architectural Hinges series, so it addresses the same class of opening: heavy doors and high-frequency entrances. The CB1901RNRP carries the non-removable pin, which is the security feature to confirm before treating the two as interchangeable on an out-swinging exterior door.
8) Are ball bearing hinges like the Don-Jo BB74545 the same thing as the BEST CB1901RNRP?
They are not the same bearing design. The Don-Jo BB74545 is a full mortise ball bearing hinge, 4-1/2 inch by 4-1/2 inch steel with square corners and five knuckles, rated standard duty. The CB1901RNRP uses a concealed bearing and is heavy duty with three knuckles. Both mortise into a 4-1/2 inch square corner prep, so the door and frame cutout is comparable, but the knuckle count and the exposed versus concealed bearing change the look of the hinge barrel on the finished opening.
9) What hinge do I use instead of the CB1901RNRP when a wheelchair needs the full clear width of the opening?
The Hager 1260 full mortise swing clear hinge is the one for that condition. It is a heavy duty five knuckle plain bearing hinge whose swing clear geometry carries the door out of the doorway when opened, recovering the width the door thickness otherwise takes off the clear opening. That matters on healthcare and accessible corridor doors. The CB1901RNRP is a conventional full mortise hinge and leaves the door in the opening, so it does not do this.
10) Can I run a power transfer through the CB1901RNRP for an electrified lock, or do I need a different hinge?
For a through-door electrical run you need an electric through-wire hinge, not the CB1901RNRP. The ACSI 5BB1 is an Ives five knuckle ball bearing full mortise hinge, 4-1/2 inch by 4-1/2 inch, with a concealed electric through-wire, four wire at 28 gauge. It mortises into the same 4-1/2 inch square prep as the CB1901RNRP, which lets it substitute for one hinge in the leaf while the CB1901RNRP carries the remaining positions.
11) Can the CB1901RNRP be used on either a left hand or right hand door?
Handing is not a problem here. The flush tips and pins on the CB1901RNRP are reversible, so one hinge covers both hands. What you do need to get right is the door swing: with a non-removable pin, order it for out-swinging openings where pin security matters.
12) What is the difference between a concealed bearing hinge and a ball bearing hinge?
On a concealed bearing hinge like the CB1901RNRP the bearings sit inside the knuckles, so the barrel reads as a clean three knuckle column with no visible bearing rings between the leaves. A ball bearing hinge such as the Don-Jo BB74545 or the McKinney TCA3386 shows the bearing races stacked in the barrel. Load capability comes from the bearing either way; the concealed version is what you specify when the exposed bearing rings are visually unacceptable or when you want nothing on the barrel to collect grime. BEST's concealed bearings are the LifeSpan design and need no oil or grease.
13) If the door is in a wet, coastal, or washdown area, is there a better choice than the steel CB1901RNRP?
For corrosion exposure, look at the Don-Jo BB94545, a full mortise ball bearing hinge, 4-1/2 inch by 4-1/2 inch in stainless steel with a square corner, or the Don-Jo BB84545, the same 4-1/2 inch by 4-1/2 inch size in brass with a satin chrome finish. Both are rated standard duty, so they sit a weight class below the heavy duty CB1901RNRP; the trade is base material against duty rating on a heavy door.
14) How does the McKinney TCA3386 compare to the BEST CB1901RNRP for a heavy commercial door?
The McKinney TCA3386 is a square corner five knuckle full mortise hinge, 4-1/2 inch by 4-1/2 inch, heavy weight and rated heavy duty. That puts it in the same size, corner style, and duty class as the CB1901RNRP. The differences are the knuckle count, five versus three on the CB1901RNRP, and the pin: the CB1901RNRP is supplied with a non-removable pin for openings where the hinge is on the outside of a secured door.
15) Is a plain bearing commercial hinge like the Hager 1279 an acceptable substitute for the CB1901RNRP?
Only on a lighter opening. The Hager 1279 is a full mortise plain bearing commercial hinge with five knuckles, rated medium duty, and the Hager 1541 is a full mortise plain bearing residential hinge in stainless steel with a five knuckle design. Plain bearing means no bearing race between the knuckles, where the CB1901RNRP carries a concealed bearing and a heavy duty rating for entrance doors and high-frequency use. Match the bearing type and duty class to the door weight and cycle rate rather than swapping across them.
16) My existing frame is prepped for a 4-1/2 by 4 inch hinge. Will the CB1901RNRP fit, and what else will?
The CB1901RNRP is a 4-1/2 inch by 4-1/2 inch hinge, so it does not match a 4-1/2 by 4 inch leaf prep without reworking the frame. The Don-Jo BB74540 is a full mortise ball bearing hinge at 4-1/2 inch by 4 inch in satin chrome, rated standard duty, which drops into that narrower prep. Measure the existing leaf before ordering, since the shorter leaf width is what determines whether the screw pattern lands.
17) Does the CB1901RNRP need lubrication or servicing once it is installed?
None. The concealed LifeSpan bearing system on the CB1901RNRP takes no oil, no grease and no scheduled maintenance. For a facilities team standardizing across a building, that removes the hinge from the PM route entirely, which is the main reason a bearing hinge gets specified over a plain bearing type on a door that never stops moving.
18) Is 652 satin chrome the same as satin nickel or brushed chrome on my other door hardware?
652 is satin chromium plated steel, and it is the standard commercial finish that pairs with 626 satin chrome brass hardware such as levers, closers and exit devices. It is not satin nickel (619) and it will not match brushed nickel residential trim. If the rest of the openings in the building are already on 626 or 652, the CB1901RNRP matches. The Don-Jo BB74540 and BB84545 are also carried in satin chrome if you need a standard duty hinge on the same finish schedule.
19) Why does the CB1901RNRP have 3 knuckles when most commercial hinges have 5?
Three knuckles is what the concealed bearing design allows: the bearings live inside the knuckles rather than as separate races stacked between them, so the barrel needs fewer segments. The comparable ball bearing hinges, like the Don-Jo BB74545 and the McKinney TCA2314, run 5 knuckles for the same reason in reverse. Knuckle count on its own is not a strength measure. The duty rating is, and the CB1901RNRP is rated heavy duty.
20) What is the difference between the McKinney TCA2314 and TCA2317 and the BEST CB1901RNRP?
The McKinney TCA2314 and TCA2317 are both square corner five knuckle full mortise hinges at 4-1/2 inch by 4-1/2 inch, and both are rated standard duty. The CB1901RNRP is the same size and corner style but is a heavy duty concealed bearing hinge. On an entrance or high-frequency door the duty class is the deciding line; for lower-cycle interior leaves the McKinney pair covers the same prep.
