BEST CEFBB199-56 Heavy Duty Full Mortise Ball Bearing Electrified Hinge with 6-Wire Concealed Conductor

BEST CEFBB199-56 Heavy Duty Full Mortise Ball Bearing Electrified Hinge with 6-Wire Concealed Conductor

Professional Electrified Hinge Solution for Commercial Access Control

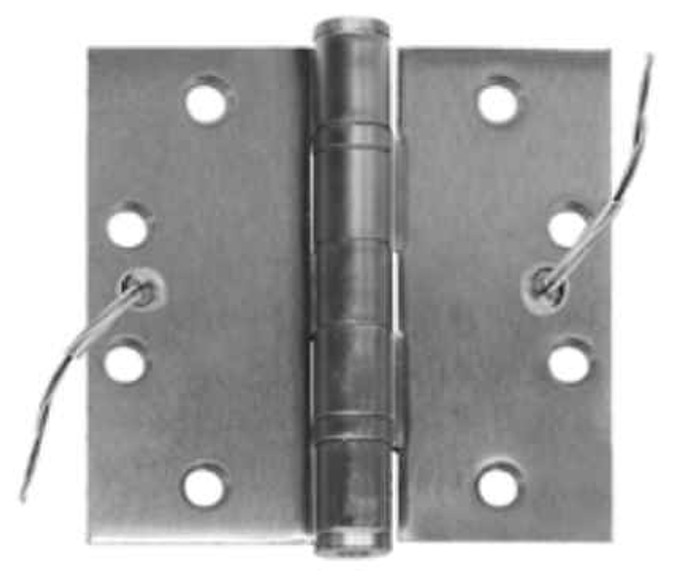

The BEST CEFBB199-56 is a heavy-duty electrified hinge engineered for commercial door applications requiring integrated electrical connectivity. This full mortise design features ball bearing operation for smooth, reliable performance and a concealed conductor system that allows electrical current transmission regardless of door position. Available in brass and stainless steel finishes, the 6-wire configuration provides enhanced versatility for electronic access control systems, exit devices, and hold-open devices where tamper-proof electrical connectivity is essential.

Professional Features & Benefits

• Concealed Conductor Design: Conducts current regardless of door position to electric locks, exit devices, or hold-open devices with no exposed electrical parts when installed.
• Heavy-Duty Ball Bearing Operation: Ball bearing construction ensures smooth operation and extended service life in high-traffic commercial applications.
• 6-Wire Configuration: Enhanced wiring capacity with 6-wire setup provides versatility for complex access control and monitoring systems.
• Full Mortise Installation: Professional mortise design with permanent fast pin for secure, tamper-resistant mounting in commercial door frames.
• Dual Finish Options: Available in 605 Bright Brass or 630 Satin Stainless Steel finishes for durability and aesthetic compatibility.
• Access Control Integration: Designed to transmit signals from code readers on doors to remote computers for comprehensive access control systems.
• Complete Installation Package: Packed with all machine screws and installation instructions for professional installation.
• Junction Box Compatible: Designed for use with junction box systems for proper electrical integration and code compliance.

Technical Specifications

• Bearing Type: Ball Bearing
• Commercial/Residential: Commercial
• Corner Style: Square Corners
• Department: Door Hardware
• Duty Level: Heavy Duty
• Electronic: Yes
• Hinge Type: Electrified
• Knuckles: 5
• Lock Type: Mortise
• Number of Wires: 6
• Package Includes: Concealed Conductor
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: CEFBB199-56
• Product Subgroup: Electrified Hinges
• Product Type: Electrified Hinges
• Series: Electrified Hinges
• Subcategory: Hinges

Installation & Operation

1. Verify electrical requirements and confirm compatibility with existing access control systems before beginning installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Install hinge in the center hinge location using manufacturer-provided templates for proper mortise preparation and alignment.
4. Route concealed wiring through the hinge conductor system according to manufacturer wiring diagrams, ensuring proper connection to junction box.
5. Configure electrical connections for intended application including electric locks, exit devices, or access control signal transmission.
6. Restore power and test all functions including electrical continuity through full door operation range and integration with connected access control systems.
7. Complete final inspection and document electrical connections. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Access Control Systems
• Healthcare Facility Security Integration
• Educational Institution Electronic Access
• Government and Municipal Building Security
• Corporate Office Electronic Lock Systems
• Multi-Tenant Residential Access Control
• Industrial Facility Monitoring Systems

Why Choose BEST Quality?

BEST electrified hinges deliver professional-grade reliability with heavy-duty ball bearing construction and concealed conductor technology rated for demanding commercial applications. The tamper-proof design with permanent fast pin and complete electrical integration ensures dependable performance in access control systems where security and reliability are paramount. Engineered for commercial environments where seamless electrical connectivity and robust mechanical operation are essential.
