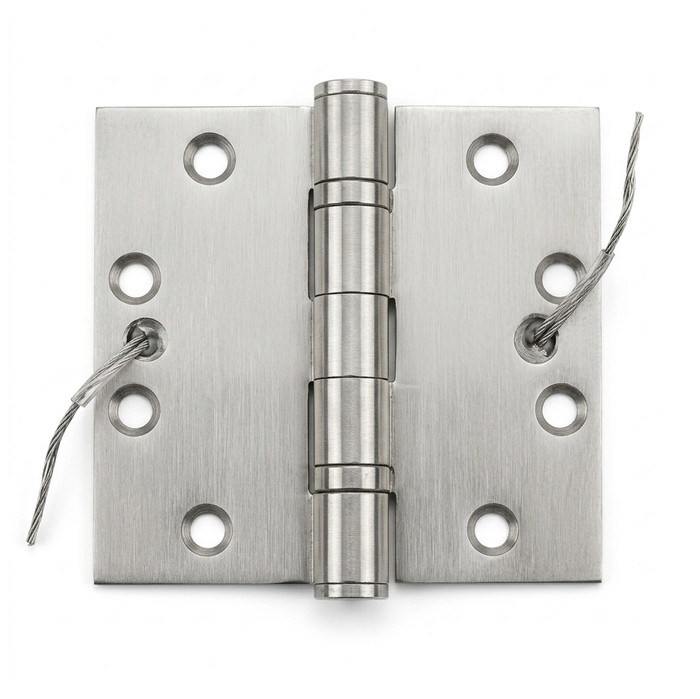

BEST CEFBB199-58 Full Mortise Ball Bearing Concealed Conductor Heavy Weight Electrified Hinge with 8-Wire Configuration

BEST ELECTRIFIED HINGE CEFBB199-58 Full Mortise Ball Bearing Concealed Conductor Heavy Weight Electrified Hinge with 8-Wire Configuration

Professional Heavy-Duty Electrified Hinge Solution

The BEST CEFBB199-58 is a heavy-weight electrified hinge engineered for commercial door applications, featuring full mortise design with ball bearing operation for smooth and reliable performance. This concealed conductor hinge allows for seamless integration of electrical conductors within the hinge assembly, providing a streamlined solution for electronic access control systems. Available in brass, bronze, or stainless steel finishes with 8-wire configuration for enhanced versatility and compatibility across a wide range of commercial applications.

Professional Features & Benefits

• Concealed Conductor Design: CE concealed electric hinges conduct current regardless of door position to electric locks, exit devices, or hold open devices where tamper-proof hinge is required.
• 8-Wire Configuration: Enhanced wiring capacity with 8-wire setup provides maximum versatility for complex access control and monitoring systems.
• Heavy-Duty Ball Bearing Construction: Full mortise design with ball bearings ensures smooth operation and long-term reliability in high-traffic commercial applications.
• Tamper-Resistant Security: No electrical parts are exposed when hinge is installed, providing secure and discreet electrical connections.
• Multiple Finish Options: Available in brass, bronze, or stainless steel finishes including 613 Satin Bronze Dark, 626 Satin Chromium Plated, 629 Bright Stainless Steel, and 630 Satin Stainless Steel.
• Access Control Integration: Designed to transmit signals from code readers on doors to remote computers for comprehensive access control systems.
• Complete Installation Package: Packed one per box with all machine screws and installation instructions for professional installation.
• Junction Box Compatible: Should be used along with a junction box for proper electrical connections and code compliance.

Technical Specifications

• Bearing Type: Ball Bearing
• Commercial/Residential: Commercial
• Corner Style: Square Corners
• Department: Door Hardware
• Duty Level: Heavy Duty
• Electronic: Yes
• Hinge Type: Electrified
• Knuckles: 5
• Lock Type: Mortise
• Number of Wires: 8
• PDF:Stanley Security Catalog: https://zensupply.com/content/pdf/best/General_Hinge_Information_ST-HI-0007_WEB.pdf
• PDF:Stanley Security Electrified Hinge Catalog: https://zensupply.com/content/pdf/best/stanley-fbb168electric.pdf
• PDF:Stanley Security Hinge Size Chart: https://zensupply.com/content/pdf/best/hinge-size-chart.pdf
• PDF:Stanley Security Installation Guide: https://zensupply.com/content/pdf/best/hinge-installation.pdf
• Package Includes: Concealed Conductor
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: CEFBB199-58
• Product Subgroup: Electrified Hinges
• Product Type: Electrified Hinges
• Series: Electrified Hinges
• Subcategory: Hinges

Installation & Operation

1. Verify electrical requirements and ensure proper power supply disconnect before beginning installation. Follow all applicable electrical codes and safety procedures.
2. Install hinge in the center hinge location as specified in manufacturer guidelines. Use manufacturer-provided templates for accurate mortise preparation.
3. Mount the hinge assembly ensuring proper alignment and clearance for door operation and electrical connections.
4. Route 8-wire conductor through concealed pathways and connect to junction box according to manufacturer wiring diagrams and local electrical codes.
5. Configure electrical connections for intended application including electric locks, exit devices, hold open devices, or access control signal transmission.
6. Test hinge operation through full door swing range to verify smooth ball bearing function and continuous electrical connectivity regardless of door position.
7. Complete final inspection of all electrical connections and mechanical operation. Refer to manufacturer documentation for complete wiring diagrams and troubleshooting procedures.

Professional Applications

• Commercial Office Buildings with Access Control
• Healthcare Facilities with Electronic Security
• Educational Institution Safety Systems
• Government and Municipal Buildings
• Industrial Facilities with Monitoring Systems
• Multi-Tenant Residential Properties
• Retail Establishments with Loss Prevention

Why Choose BEST Quality?

BEST electrified hinges deliver professional-grade reliability with heavy-duty ball bearing construction and concealed conductor design engineered for demanding commercial applications. The tamper-resistant design with no exposed electrical parts ensures secure operation while the 8-wire configuration provides maximum flexibility for complex access control integration. Engineered for commercial environments where dependable performance and electrical security are essential.
