BEST FBB223 Heavy Weight Ball Bearing Pivot Reinforced Hinge for Beveled Edge Doors

Professional Heavy-Duty Hinge Solution for Beveled Edge Door Applications

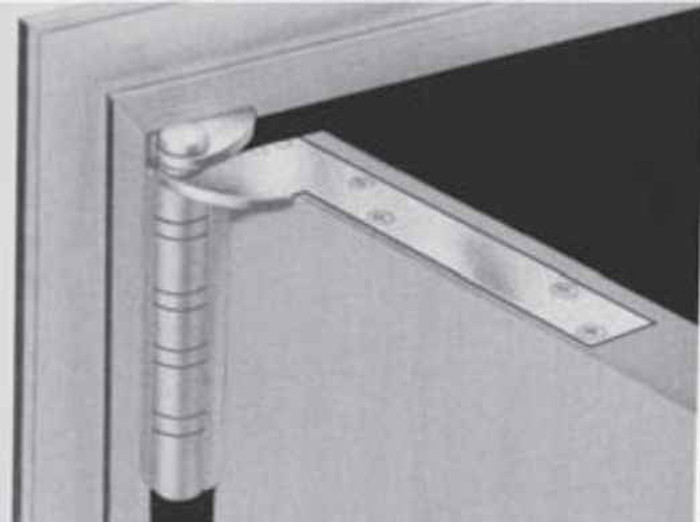

The BEST FBB223 combines a pivot and butt hinge in one compact interlocked unit, specifically engineered for beveled-edge doors in commercial and industrial applications. This heavy-duty hinge features ball bearing technology for smooth operation and is available in bronze or stainless steel finishes. The pivot reinforced design transfers stresses to provide maximum support for doors subject to jarring or abusive handling, with heavy weight gauges that increase bearing surface area for friction reduction.

Professional Features & Benefits

  • Dual-Function Design: Combines pivot and butt hinge in one compact interlocked unit sharing the same pin for perfect alignment and maximum structural integrity.
  • Ball Bearing Technology: Smooth and effortless door movement with maximum friction reduction through increased bearing surface area from heavy weight gauges.
  • Beveled Edge Compatibility: Specifically designed door plate configuration for beveled edge doors, different from square edge door requirements.
  • Abuse-Resistant Construction: Engineered for doors subject to jarring or abusive handling with stress transfer design that anchors and reinforces doors and frames.
  • Interlocked Corner Design: Prevents sidewise motion of pivot or butt leaves for enhanced stability and long-term performance.
  • Flexible Installation Options: Available with short door plate (4" minimum) for use with most concealed holders and closers, handed left or right.
  • Multiple Finish Options: Available in 613 Satin Bronze Dark Oxidized Oil Rubbed, 626 Satin Chromium Plated, and 630 Satin Stainless Steel finishes.
  • Commercial-Grade Construction: Heavy-duty design rated for commercial and industrial applications where reliable and robust hinge performance is essential.

Technical Specifications

  • Bearing Type: Ball Bearing
  • Commercial/Residential: Commercial
  • Corner Style: Square Corners
  • Department: Door Hardware
  • Door Type: For Beveled Edge Doors
  • Duty Level: Heavy Duty
  • Hinge Type: Full Mortise
  • Knuckles: 5
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: FBB223
  • Product Subgroup: Surface and Mortise Hinges
  • Product Type: Full Mortise Hinges
  • Subcategory: Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST FBB223 hinges deliver professional-grade reliability with heavy weight gauge construction and ball bearing technology designed for demanding commercial applications. The interlocked pivot reinforced design provides maximum durability for doors subject to abuse, while multiple finish options ensure long-term corrosion resistance. Engineered for commercial and industrial environments where dependable hinge performance is essential.

Product Specs

Subcategory:
Hinges
Hinge Type:
Full Mortise
Knuckles:
5
Bearing Type:
Ball Bearing
Door Type:
For Beveled Edge Doors
Corner Style:
Square Corners
Product Group:
Door Hinges and Pivots
Product Subgroup:
Surface and Mortise Hinges
Product Type:
Full Mortise Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Product Model:
FBB223
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

BEST BEST-FBB223RH-626-5x4.5 – Frequently Asked Questions

1) Will the BEST FBB223 hinge work on a square edge door?
No. The FBB223 is built with a door plate configuration specific to beveled edge doors, and a square edge door needs a different plate geometry. If your door edge is square, this is the wrong part number to order even though the size and finish look right.
2) Is the BEST FBB223 handed, and how do I know whether to order left or right?
Handing matters here. The FBB223 is a handed hinge because it carries a pivot leaf as well as a butt leaf, and it is ordered as Left Hand or Right Hand. Stand outside the opening on the side the door swings away from you; if the hinges are on your left it is left hand, on your right it is right hand. There is no reversing it in the field, so the hand goes on the order.
3) What size does the BEST FBB223 beveled edge hinge come in?
One size across the range: 4.5 x 5 inches. That is a taller leaf pair than the common 4-1/2 x 4-1/2 commercial hinge, which is what the pivot reinforcement needs to anchor into the door and frame. If your existing mortise is cut for a 4-1/2 x 4-1/2, the frame and door will need to be reworked to take this one.
4) What is a pivot reinforced hinge and when do I need one instead of a regular ball bearing hinge?
A pivot reinforced hinge puts a pivot and a butt hinge into one interlocked unit sharing the same pin, so the load path runs through the pivot instead of only through the screws in the leaves. Use it on openings that get jarred or abused, heavy doors, high traffic entries, doors that get kicked or slammed. For an ordinary commercial office or classroom door, a standard heavy weight ball bearing butt hinge is enough; the Hager WTBB1168 or the McKinney TCA3386 are heavy weight full mortise ball bearing hinges without the pivot. Go to the FBB223 when the door itself is failing at the hinge, not just wearing.
5) Can I use a concealed overhead closer or holder with the BEST FBB223?
Yes. The FBB223 is offered with a short door plate, 4 inch minimum, and that short plate is what clears the hardware for most concealed holders and closers. That is the reason to pick this hinge on an opening that already has a concealed overhead device in the head.
6) Can I swap a standard weight ball bearing hinge for the BEST FBB223 on an existing door?
Not as a drop-in. Standard weight hinges like the Don-Jo BB74545 or the McKinney TCA2314 are 4-1/2 x 4-1/2 square corner units, and the FBB223 is 4.5 x 5 inches with a pivot leaf and a door plate cut for a beveled edge. The mortises have to be enlarged and the door plate let in. If you are replacing worn standard weight hinges like for like, stay with a 4-1/2 x 4-1/2 unit; move to the FBB223 only when you are willing to rework the prep to fix a door that keeps sagging or getting abused.
7) Which ball bearing hinge should be specified instead of an FBB223 when the door needs power transfer for an electrified lock?
The ACSI 5BB1 is a 5 knuckle ball bearing full mortise hinge in 4-1/2 by 4-1/2 with concealed electric through-wire, 4 wire at 28 gauge, from the 1100 Series. It carries current from frame to door through the hinge itself, which the FBB223 does not do. If the opening has an electric strike, electrified lever or request-to-exit lock and the FBB223 was picked only as the heavy ball bearing hinge, the 5BB1 is the hinge that solves the wiring. Order the wire count and gauge against what the lock manufacturer requires.
8) What is the closest heavy weight ball bearing full mortise substitute for a BEST FBB223 in 4-1/2 by 4-1/2?
The McKinney TCA3386 is a square corner, 5 knuckle full mortise hinge in 4-1/2 by 4-1/2 carrying a heavy duty rating, which lines up with the FBB223 on hinge type, corner style, knuckle count and duty level. The one thing it does not carry over is the FBB223 pivot reinforced construction, which combines a pivot and butt hinge in one interlocked unit sharing the same pin. If the opening was specified for the FBB223 because the door takes jarring or abusive handling, the TCA3386 is a heavy weight hinge but not a pivot reinforced one. If the FBB223 was specified simply as a heavy hinge on a standard commercial door, the TCA3386 covers the same size and prep.
9) The door is a normal office door that does not get abused. Is there a lighter ball bearing hinge than the FBB223?
Yes. The Don-Jo BB74545 is a full mortise ball bearing hinge, 4-1/2 by 4-1/2, steel, square corner, 5 knuckle, rated standard duty. The McKinney TCA2314 and TCA2317 are also square corner 5 knuckle full mortise hinges in 4-1/2 by 4-1/2 at standard duty. All three keep the ball bearing action and the full mortise prep the FBB223 uses, at a standard weight instead of the heavy weight gauges the FBB223 carries. Confirm the door leaf weight and traffic against the standard duty rating before dropping down from a heavy weight hinge.
10) Is a Hager 1279 or 1541 an equivalent to a BEST FBB223 heavy weight ball bearing hinge?
No. Both are plain bearing hinges. The Hager 1279 is a full mortise plain bearing commercial hinge with 5 knuckles at medium duty, and the Hager 1541 is a full mortise plain bearing hinge with stainless steel construction and 5 knuckle design. The FBB223 is a ball bearing hinge at heavy duty, and the bearing type is the difference that matters on a high cycle or heavy leaf door. The 5 knuckle full mortise format looks the same across all three, so the part can be ordered by mistake on knuckle count and hinge type alone. Check the bearing line on the spec before substituting.
11) What hinge should be used instead of an FBB223 when the frame is deep or the door has to swing past trim?
For a door that has to clear a deep reveal or trim, the Hager WTBB1168 is a 4-1/2 by 6 full mortise ball bearing wide throw hinge at heavy weight with 5 knuckles. The extra leaf width throws the door further off the frame than the 4-1/2 by 5 size the FBB223 is supplied in. For a door that has to clear the full opening width, such as a healthcare corridor where a wheelchair or gurney passes, the Hager 1260 is a full mortise swing clear hinge with a 5 knuckle plain bearing design at heavy duty, which swings the leaf clear of the opening rather than widening the throw. Note the 1260 is plain bearing where the FBB223 is ball bearing.
12) The existing hinge mortise is 4-1/2 by 4. Does an FBB223 drop in, or is there a hinge that matches that cutout?
The FBB223 is supplied in 4-1/2 by 5, so the leaf is longer than a 4-1/2 by 4 mortise and the pocket would have to be extended top and bottom. The Don-Jo BB74540 is a full mortise ball bearing hinge at 4-1/2 by 4 in satin chrome, rated standard duty, which matches that existing cutout without recutting the door and frame. Confirm the door weight suits a standard duty hinge before going that route; if the opening genuinely needs a heavy weight hinge, extending the mortise for the FBB223 is the alternative.
13) What finishes does the BEST FBB223 hinge come in, and which one matches the rest of my building?
Three finishes: 613 satin bronze oil rubbed, 626 satin chrome, and 630 satin stainless steel. All three are available in both left and right hand. If the other openings in the building are already on brushed stainless lever trim, 630 is the match; 626 matches satin chrome levers and closers; 613 is the dark oil rubbed bronze used on wood door and bronze trim packages.
14) Is the BEST FBB223 a full mortise hinge, or does it surface mount?
Full mortise. Both leaves get routed into the door edge and the frame rabbet, so the door and frame both need to be prepped, and it is not a surface applied hinge you can screw onto an unprepped opening. It is a 5 knuckle, square corner design, so the mortise pockets are cut square rather than radiused.
15) Is the BEST FBB223 rated for commercial use or is it a residential hinge?
Commercial, heavy duty. The heavy weight gauge is what increases the bearing surface area in the ball bearings and cuts friction on a heavy door. Residential grade hinges like the Hager 1541 use a plain bearing instead of ball bearings, which is fine on a light interior door and will not hold up under commercial traffic.
16) How many hinges do I need per door, and do they all have to be the FBB223?
On a beveled edge commercial door taking abuse, the pivot reinforced hinge goes at the bottom position where the load concentrates; the intermediate and top positions can run matching heavy weight ball bearing butt hinges. Standard practice is three hinges on a door up to 7 feet 6 inches, four above that. Keep the finish consistent across the opening, all 613, all 626, or all 630, so the trim reads as one set.
17) What is the difference between an FBB223 and a concealed bearing hinge like the CB199 or CB1960R?
The FBB223 is a 5 knuckle ball bearing hinge, so the bearings sit in the knuckle stack and are visible in the barrel. The Dormakaba CB199 is a full mortise concealed bearing heavy weight hinge in the Architectural Hinges series, and the Stanley Security CB1960R is a full mortise concealed bearing standard weight hinge in the same series at medium duty. Concealed bearing hides the bearing inside the knuckle for an unbroken barrel appearance. On duty, the CB199 is heavy duty and matches the FBB223 rating, while the CB1960R is a standard weight hinge and does not. Neither is pivot reinforced, so neither reproduces the interlocked pivot and butt construction the FBB223 uses for doors subject to abuse.
18) For a stainless steel or brass ball bearing hinge instead of the FBB223 in 630 satin stainless, what are the options?
The FBB223 is offered in 613 satin bronze oil-rubbed, 626 satin chrome and 630 satin stainless steel. If the base material matters as much as the finish, the Don-Jo BB94545 is a full mortise ball bearing hinge, 4-1/2 by 4-1/2, stainless steel with square corner, and the Don-Jo BB84545 is a full mortise ball bearing hinge, 4-1/2 by 4-1/2, brass in satin chrome. Both are rated standard duty against the FBB223 heavy duty rating, so they are a material match rather than a weight match. Stainless is the usual choice for exterior, coastal or wash-down openings.
19) Do any of the comparable heavy weight hinges work on a beveled edge door the way the FBB223 does?
The FBB223 uses a door plate configuration made specifically for beveled edge doors, which differs from what a square edge door requires. Among the heavy weight alternatives, the McKinney TCA3386, the Dormakaba CB199 and the Hager WTBB1168 are full mortise heavy weight hinges but are not identified as beveled edge units. On a pivot reinforced hinge the door edge profile drives the plate geometry, so verify the door edge before treating any of them as a like-for-like swap. The FBB223 is also handed left or right and is available with a short door plate at a 4 inch minimum for use with most concealed holders and closers.
20) Does the interlocked design on the BEST FBB223 stop the door from shifting sideways?
That is what the interlocked corner is for. The pivot leaf and the butt leaf lock together at the corner so neither can move sidewise relative to the other, and both ride on the same pin. On a door that gets shoved or racked, that is what keeps the leaf alignment from opening up and letting the door drift out of the frame.
