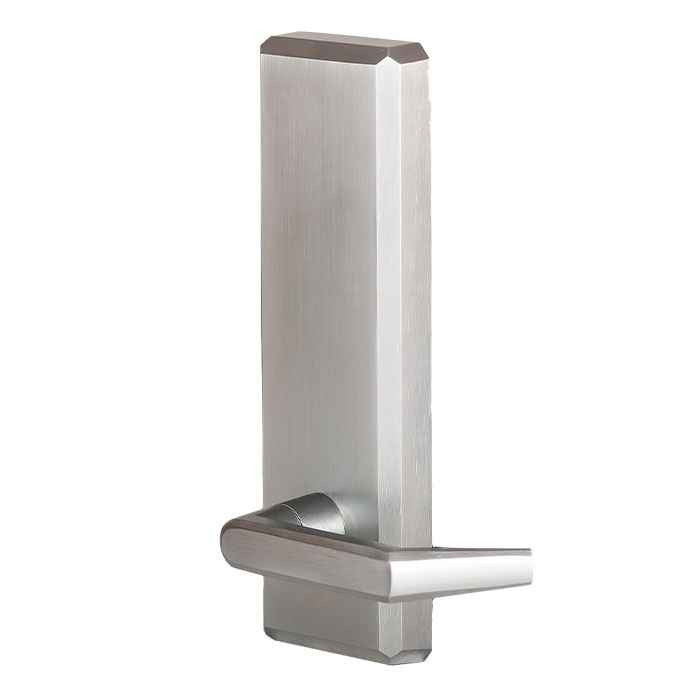

Stanley Security Grade 1 Heavy Duty Exit Trim - Dummy Pull, ANSI 02
The Stanley Security QET125 is a Grade 1 Heavy-Duty Exit Trim featuring a Dummy Pull Plate, designed for ANSI Function 02 applications. It is crafted to integrate seamlessly with QED100 Series exit devices, offering both dependable performance and polished style for commercial and institutional door systems
-
Function: Dummy Pull Plate (no mechanical operation), ANSI Function 02
-
Compatibility: Tailored for QED100 Series exit devices (Heavy-Duty)
-
Construction: Built with robust materials such as brass, bronze, aluminum, or stainless steel—ensuring strength and longevity
Finishes Available
-
605 – Bright Brass
-
626 – Satin Chrome
Dimensions & Performance
Pull Plate Dimensions:
- Approximately 14" × 3" (355.6 mm × 76.2 mm)
Grade & Certification:
- ANSI/BHMA A156.3 Grade 1 – Superior durability for rigorous usage environments
- UL-listed “panic-proof” design – Promotes swift egress in emergency scenarios
Manufacturer Resources
Product Specs
- Series:
- QET
- Grade:
- Grade 1
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices Trim
- Product Type:
- Cylindrical Locks
- Commercial/Residential:
- Commercial
- Lock Type:
- Exit Device Trim
- Product Attribute:
- Exit Devices Trim
- Product Function:
- Classroom/Storeroom
- Product Function:
- Office/Privacy/Apartment
- Cylinder Classification:
- Conventional Cylinder
- Product Category:
- Electronic Locks
- Department:
- Door Hardware
Stanley Security QET125 L 626 – Frequently Asked Questions
1) Does the Stanley QET125 exit trim actually retract the latch, or is it just a pull?
It's a dummy pull plate, ANSI Function 02, so there is no mechanical operation from the outside. It gives you something to grab and pull the door once the exit device has released, but it will not retract the latch. If you need outside entry, you need a keyed or lever trim function instead, not this one.
2) Which exit devices does the Stanley QET125 dummy pull trim fit?
It is made for Stanley Security QED100 Series heavy-duty exit devices. It is trim only, so the exit device itself is a separate order.
3) I need exit device trim that actually retracts the latch from the outside - is the Stanley QET125 dummy pull the right choice?
No. The Stanley QET125 is a dummy pull plate with no mechanical operation, ANSI Function 02, so it gives a person on the outside something to grab but no way to release the latch. If the outside has to operate the device, look at an operating trim instead: the Schlage Electronics CO-100-993M-70-KP is a Grade 1 heavy duty electronic mortise exit device trim in classroom/storeroom function with a keypad reader, and the Schlage Electronics XE360EW22S is a Grade 1 wireless exit trim in classroom/storeroom function with a Bluetooth and NFC mobile reader. Both are credential-operated; the QET125 is pull-only.
4) Will the Stanley QET125 trim work on a Von Duprin 22 series device?
The QET125 is built to integrate with Stanley QED100 Series heavy duty exit devices. For a Von Duprin 22 surface vertical rod device, the Schlage Electronics XE360EW22S is the Grade 1 wireless exit trim specified for the Von Duprin 22 SVR. Match the trim to the device family rather than assuming a Grade 1 trim crosses between manufacturers.
5) Is this Stanley exit trim rated for high traffic commercial openings?
It is ANSI/BHMA A156.3 Grade 1 and catalogued for commercial use, which is the top durability tier for this hardware category. Schools, hospitals and other heavy-traffic buildings are the intended environment.
6) Do I need a cylinder with the QET125 dummy pull trim?
No. With a dummy pull there is nothing to key from the outside, so no cylinder is required. If your opening needs outside key access, choose a keyed exit trim instead and order the matching conventional cylinder for your keyway.
7) Will the dummy pull interfere with free egress on a fire or panic opening?
No. Egress is controlled entirely by the QED100 exit device on the inside; the outside pull has no mechanical function and cannot hold the door latched. The trim carries a UL-listed panic-proof design for exactly that reason.
8) Do all of these Grade 1 exit trims give me the same function?
No - the grade speaks to durability, not operation. The Stanley QET125 is Grade 1 in ANSI Function 02, a dummy pull with no mechanical operation. The Schlage Electronics CO-100-993M-70-KP and the Schlage Electronics XE360EW22S are both Grade 1 as well but are classroom/storeroom function trims that operate the device once a credential is presented. Confirm the function code, not just the grade, before you order against a hardware schedule.
9) What finishes does the Stanley QET125 dummy pull come in?
Two: 605 bright brass and 626 satin chrome. If the rest of the openings in the building are brushed stainless-look hardware, 626 is the match; 605 is the polished brass look.
10) What is the QET125 made of?
Construction uses brass, bronze, aluminum or stainless steel depending on the finish supplied. All are corrosion-tolerant metals suited to a door face that gets handled constantly.
