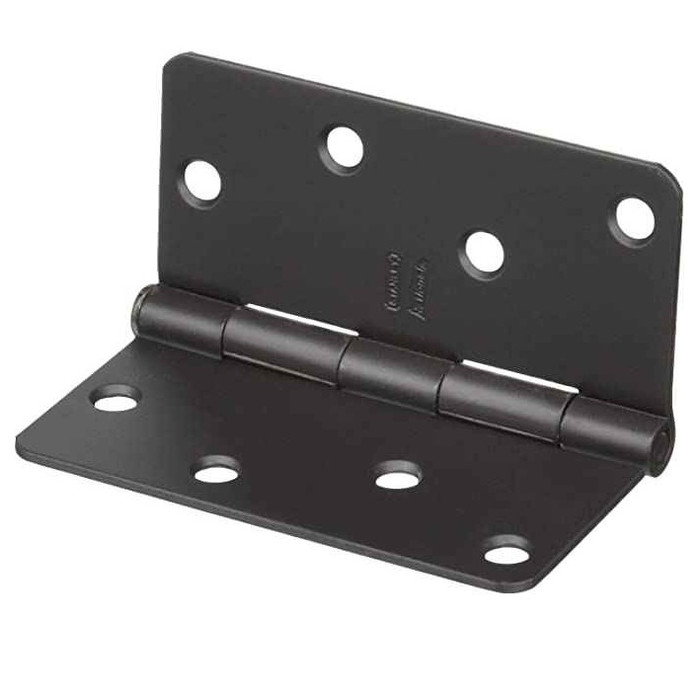

BEST RDFBB168 Steel Full Mortise Ball Bearing Heavy Duty Hinge with Radius Corner and Removable Pin

BEST RDFBB168 Steel Full Mortise Ball Bearing Heavy Duty Hinge with Radius Corner and Removable Pin

(No reviews yet) Write a Review

Model: BEST-RDFBB168-652-4.5x4
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST RDFBB168 Steel Full Mortise Ball Bearing Heavy Duty Hinge with Radius Corner and Removable Pin

Professional Heavy-Duty Hinge Solution for Commercial Applications

The BEST RDFBB168 is a heavy-duty steel full mortise ball bearing hinge engineered for demanding commercial and industrial applications. Featuring 1/4" radius corners for a clean, stylish appearance and equipped with four permanently lubricated non-detachable ball bearings for smooth operation. The removable pin design allows for easy maintenance and adjustments, while the full mortise construction ensures secure installation and exceptional stability for heavy doors and high-frequency applications.

Professional Features & Benefits

  • Heavy-Duty Construction: Durable steel construction provides exceptional strength and reliability for heavy doors in commercial and industrial settings.
  • Ball Bearing Technology: Four permanently lubricated non-detachable ball bearings ensure smooth and effortless door movement throughout the operational life.
  • Radius Corner Design: 1/4" radius corners provide a clean and stylish appearance while reducing stress concentration points.
  • Removable Pin Configuration: Removable pin design allows for easy maintenance, adjustments, and door removal when necessary.
  • Full Mortise Installation: Full mortise design ensures secure and seamless installation with superior stability and longevity.
  • Template Compatibility: All hinges feature template screw hole locations for use on both wood and hollow metal doors and frames.
  • High-Frequency Applications: Specifically designed for heavy doors and high-frequency use including entrance doors to office buildings, stores, public buildings, and corridor entrance doors.
  • Versatile Configuration Options: Can be furnished with raised barrel (RB), electric wires and/or switches (CE and/or CS), hospital tips (HT), decorative tips, or security studs for specialized applications.

Technical Specifications

  • Bearing Type: Ball Bearing
  • Commercial/Residential: Commercial
  • Corner Style: 1/4" Radius Corners
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hinge Pin Type: Removable
  • Hinge Type: Full Mortise
  • Knuckles: 5
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: RDFBB168
  • Product Subgroup: Surface and Mortise Hinges
  • Product Type: Full Mortise Hinges
  • Series: Architectural Hinges
  • Subcategory: Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST hinges deliver professional-grade reliability with durable steel construction and permanently lubricated ball bearing technology designed for demanding commercial applications. The heavy-duty design with template screw hole locations ensures consistent installation quality, while the radius corner styling provides both aesthetic appeal and structural integrity. Engineered for high-frequency use where dependable performance and smooth operation are essential.

Product Specs

Subcategory:
Hinges
Series:
Architectural Hinges
Hinge Type:
Full Mortise
Knuckles:
5
Bearing Type:
Ball Bearing
Corner Style:
1/4" Radius Corners
Product Group:
Door Hinges and Pivots
Product Subgroup:
Surface and Mortise Hinges
Product Type:
Full Mortise Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Hinge Pin Type:
Removable
Product Model:
RDFBB168
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

BEST BEST-RDFBB168-652-4.5x4 – Frequently Asked Questions

1) Will the BEST RDFBB168 hinge fit a door frame prepped for radius corners?
Yes. The RDFBB168 is made with 1/4 inch radius corners, which is the standard corner prep on hollow metal frames and most factory-machined commercial doors. If your existing mortises are cut square, you would want a square corner hinge instead, such as the Don-Jo BB74545 or the McKinney TCA2314 in 4-1/2 by 4-1/2.
2) What size is the BEST RDFBB168 hinge, and is that the usual commercial size?
It is supplied 4-1/2 by 4-1/2 inches in 652 satin chrome steel. That is the common leaf size for 1-3/4 inch commercial doors, so it drops into standard hollow metal frame prep without reworking the mortise.
3) Can I use the RDFBB168 on both wood doors and hollow metal doors?
Yes. The screw hole locations are template drilled, so the same hinge works on wood and hollow metal doors and frames. Template hole spacing is what lets you standardize one hinge across mixed openings in a building.
4) Is this hinge heavy duty enough for a high-traffic entrance door?
That is exactly what it is built for. Steel construction, heavy duty rating, five knuckles, and four permanently lubricated non-detachable ball bearings for entrance doors to office buildings, stores, public buildings, and corridor openings. For lower-traffic interior doors you don't need this much hinge; a standard duty ball bearing like the Don-Jo BB74545 covers that.
5) Can I get this hinge with electric through-wire for an access control opening?
The RDFBB168 can be furnished with electric wires and/or switches (CE and/or CS options), along with raised barrel (RB), hospital tips (HT), decorative tips, or security studs. If you need a ready-made electric transfer hinge in 4-1/2 by 4-1/2, the ACSI 5BB1 is supplied with a concealed 4-wire 28ga through-wire.
6) Can I substitute a plain bearing hinge for the RDFBB168 on a high-traffic door?
No. The RDFBB168 is specified as a ball bearing hinge for heavy doors and high-frequency openings. Plain bearing hinges such as the Hager 1279, a medium duty full mortise plain bearing commercial hinge with 5 knuckles, and the Hager 1541, a full mortise plain bearing residential hinge in stainless steel with a 5 knuckle design, use a plain bearing rather than ball bearings and are built to different duty levels. Use plain bearing only where the opening is lighter and lower cycle.
7) What should I use instead of the RDFBB168 if the frame is set back and the door needs to clear a deep trim or wall?
The RDFBB168 is a standard-throw full mortise hinge. When the leaf has to project farther to swing the door clear of surrounding trim or a return wall, a wide throw hinge is the right call: the Hager WTBB1168 is a 4-1/2 inch by 6 inch full mortise ball bearing wide throw hinge, heavy weight, with 5 knuckles. Confirm the required throw by measuring the obstruction before ordering.
8) What is the closest heavy duty equivalent to the BEST RDFBB168 if I need square corners instead of radius?
The BEST RDFBB168 is a heavy duty steel full mortise ball bearing hinge with 1/4 inch radius corners and 5 knuckles. If the existing mortise is square cornered, the McKinney TCA3386 is a square corner 5 knuckle full mortise hinge in 4-1/2 inch by 4-1/2 inch, heavy weight. Match the corner style to the prep already routed in the door and frame so the leaf seats flush.
9) Do I need a heavy duty ball bearing hinge like the RDFBB168, or will a standard duty hinge work?
The RDFBB168 is rated heavy duty and built for heavy doors and high-frequency openings such as building entrances, store doors, and corridor entrances. For lighter interior openings with lower traffic, standard duty full mortise ball bearing hinges in the same nominal size cover the job: the Don-Jo BB74545 is a standard duty steel 4-1/2 inch by 4-1/2 inch square corner 5 knuckle hinge, and the McKinney TCA2314 is a standard duty square corner 5 knuckle 4-1/2 by 4-1/2. Base the decision on door weight and cycle frequency.
10) I need electric through-wire at the hinge. Is the RDFBB168 the right part?
The RDFBB168 can be furnished with electric wires and/or switches as a configured option (CE and/or CS). If you would rather order a hinge already built with the transfer, the ACSI 5BB1 is a 5 knuckle ball bearing full mortise hinge, 4-1/2 inch by 4-1/2 inch, with concealed electric through-wire using 4 wires at 28 gauge. Confirm wire count and gauge against the device you are powering.
11) Does the removable pin let me take the door down without unscrewing the hinges?
Yes. The RDFBB168 uses a removable pin, so the door can be lifted off and rehung for maintenance or adjustment without backing out the leaf screws. The ball bearings themselves are non-detachable, so only the pin comes out.
12) Do I need to specify handing when ordering the RDFBB168?
No. A full mortise butt hinge of this type is non-handed, so one hinge works on a left or right hand door. Handing only becomes a factor if you add a directional option like a switch or certain tips.
13) For a damp or exterior opening, is a steel ball bearing hinge like this the right call?
The RDFBB168 is steel, which is fine for interior and protected commercial openings but not the best choice where moisture or washdown is a factor. For corrosion resistance in the same 4-1/2 by 4-1/2 full mortise ball bearing size, the Don-Jo BB94545 is stainless steel.
14) What is the difference between the BEST RDFBB168 and a concealed bearing hinge like the CB199?
The RDFBB168 carries four permanently lubricated non-detachable ball bearings visible between the knuckles, with a removable pin and 1/4 inch radius corners. The Dormakaba CB199 is a full mortise concealed bearing heavy weight hinge in the same Architectural Hinges series, where the bearing is hidden within the barrel for a smoother knuckle profile. Both are heavy duty full mortise hinges; the choice is bearing style and appearance at the barrel.
15) If the RDFBB168 steel hinge will see moisture or wash-down, what is a better material choice?
The RDFBB168 is steel. For openings exposed to moisture, chemicals, or frequent cleaning, choose a corrosion-resistant body: the Don-Jo BB94545 is a stainless steel full mortise ball bearing hinge, 4-1/2 inch by 4-1/2 inch with square corners, and the Don-Jo BB84545 is a brass full mortise ball bearing hinge, 4-1/2 inch by 4-1/2 inch in satin chrome. Both are standard duty, so verify the door weight before switching.
16) Is there a 4-1/2 inch by 4 inch satin chrome hinge that matches the RDFBB168 size and finish for lighter doors?
The RDFBB168 is offered in 4-1/2 inch by 4 inch in 652 satin chrome steel. For a lighter opening in the same nominal size and finish, the Don-Jo BB74540 is a standard duty full mortise ball bearing hinge, 4-1/2 inch by 4 inch in satin chrome. Keep the heavy duty RDFBB168 where the door is heavy or the traffic is high.
17) What is the standard weight counterpart to the RDFBB168 in the same Architectural Hinges series?
The RDFBB168 is the heavy duty member of the Architectural Hinges series, with ball bearings and a removable pin. Within the same series, the Stanley Security CB1960R is a full mortise concealed bearing standard weight hinge rated medium duty. Specify the heavier RDFBB168 for entrance and corridor doors and the CB1960R where the door is a standard weight interior leaf.
18) What finish does the BEST RDFBB168 come in, and will it match other satin chrome hardware?
It is supplied in 652 satin chrome over steel, which is the standard commercial satin chrome finish code and pairs with 626 satin chrome brass trim on the same opening. If you are matching satin chrome across a building, the Don-Jo BB74540 in 4-1/2 by 4 and the brass BB84545 are also finished in satin chrome.
19) Is there a size chart and installation guide for these BEST five knuckle ball bearing hinges?
Yes. BEST publishes a hinge size chart for selecting leaf size against door thickness and width, an installation guide, a general hinge information catalog, and a dedicated five knuckle ball bearing hinge catalog. All four are available as downloadable PDFs alongside the RDFBB168.
20) How do the two McKinney TCA square corner hinges differ from each other when cross-referencing the RDFBB168?
Both the McKinney TCA2314 and TCA2317 are square corner 5 knuckle full mortise hinges in 4-1/2 inch by 4-1/2 inch rated standard duty, so they are adjacent models in the same size and prep and differ in model designation rather than corner style or knuckle count. The RDFBB168 differs from both in being heavy duty with 1/4 inch radius corners. If the drawing calls a specific TCA number, order to that number.
