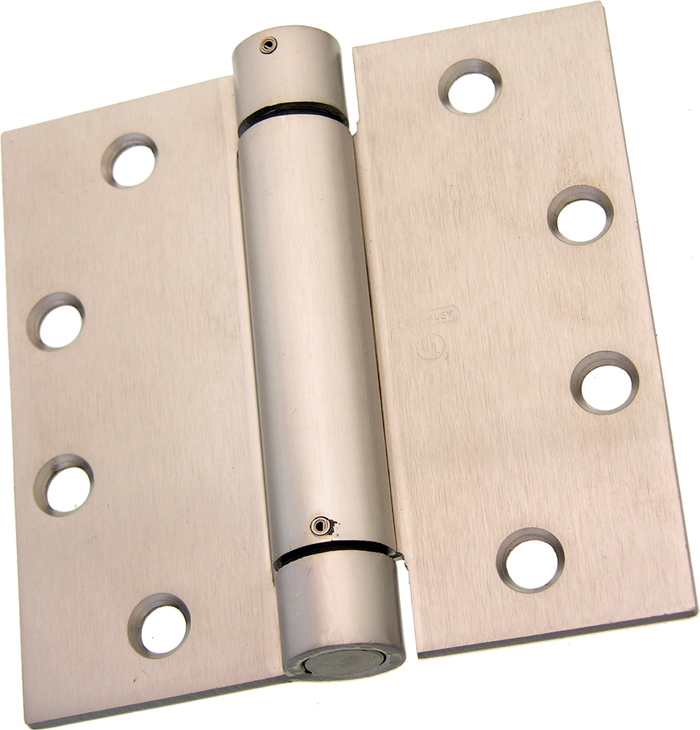

Stanley Security Spring Hinge Full Mortise, Square Corner, 4.5" x 4.5", Ferrous Steel Base

Stanley Security Spring Hinge Full Mortise, Square Corner, 4.5" x 4.5", Ferrous Steel Base

(No reviews yet) Write a Review

Model: 2060R 4.5 X 4.5 US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$61.00
$25.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Stanley Security Spring Hinge Full Mortise, Square Corner, 4.5" x 4.5", Ferrous Steel Base

For labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors. Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors). 4 1/2" (114mm) size – UL listed for door up to 4' x 8' (1219 x 2438mm). 4" (102mm) size – approved for door up to 3' x 7' (914 x 2134mm). 3 1/2" (89mm) size – approved for door up to 2' 8" x 7' (813 x 2134mm). Lifespan Limited lifetime warranty for the life of the building. Internal ratchet mechanism eliminates loose adjustment pins. Closing power is adjustable up or down. Excellent alternative to more expensive overhead mounted closers



Features:

  • For labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors.
  • Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors)
  • 4-1/2" (114mm) size – UL listed for door up to 4' x 8' (1219 x 2438mm)
  • 4" (102mm) size – approved for door up to 3' x 7' (914 x 2134mm)
  • 3-1/2" (89mm) size – approved for door up to 2' 8" x 7' (813 x 2134mm)
  • Lifespan Limited lifetime warranty for the life of the building
  • Internal ratchet mechanism eliminates loose adjustment pins
  • Closing power is adjustable up or down
  • Excellent alternative to more expensive overhead mounted closers
  • Hinges can be furnished as follows:
    • With decorative tips
    • With electric switches (CS) – 4-1/2" (114 mm) only
    • Special screw hole pattern
  • Packed with: Wood and machine screws
  • No pins required
  • Option Available: Radius corners (RD)



Finishes:

  • US3/633 - Bright brass
  • US26D/652 - Satin chrome



Manufacturer Resources

Product Specs

Subcategory:
Hinges
Product Group:
Door Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Bearing Type:
Ball Bearing
Corner Style:
Square corners
Knuckles:
5
Product Size:
5" x 4.5"
Product Substrate:
Steel
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Stanley Security 2060R 4.5 X 4.5 US26D – Frequently Asked Questions

1) Can I use a Stanley spring hinge on a labeled fire door instead of a door closer?
Yes. The Stanley 2060R spring hinge is made for labeled fire doors, stairwell doors, motel and hotel guest room doors, and apartment unit entry doors, and it meets the NFPA 80 standard for 3 hour fire doors. One caution on quantity: NFPA 80 requires a minimum of two spring hinges on a labeled door, so you cannot hang a fire door on one spring hinge plus two standard butts. It is a self-closing solution where an overhead closer is unwanted or over budget.
2) How big a door will a 4-1/2 inch Stanley spring hinge close?
The 4-1/2 inch (114mm) spring hinge is UL listed for doors up to 4 feet by 8 feet (1219 x 2438mm). Stanley's smaller spring hinges cover smaller openings: the 4 inch (102mm) is approved to 3 feet by 7 feet (914 x 2134mm) and the 3-1/2 inch (89mm) to 2 feet 8 inches by 7 feet (813 x 2134mm). So an oversized 4 foot apartment or stairwell leaf needs the 4-1/2 inch size, not a 4 inch.
3) Will a square corner spring hinge drop into my existing hollow metal frame prep?
It depends on the corner. This one is a full mortise hinge with square corners, so it drops into a square-cornered mortise. Hollow metal frames and many commercial wood doors are prepped with radiused corners instead, usually 1/4 inch or 5/8 inch. Stanley offers the same hinge with radius corners under the RD option, so match the option to the prep already cut in your door and frame rather than chiseling the mortise square.
4) I have a 5 inch tall hinge prep on my door. Will a 4-1/2 inch spring hinge fill it?
No. A 4-1/2 inch hinge leaves half an inch of open mortise in a 5 inch prep, and the screw holes will not line up with the existing pattern. For a 5 inch prep, match the height: the Don-Jo HWBB75045 is a 5 x 4-1/2 heavy weight full mortise ball bearing hinge in steel with a satin chrome finish, and the HWBB85045 is the brass-base version of the same 5 x 4-1/2 size. Neither is a spring hinge, so if the opening also needs to self-close you would add a surface closer.
5) What is the closest equivalent to a Stanley 2060R 4-1/2 inch spring hinge if I need a standard non-spring ball bearing hinge in the same size?
The Stanley 2060R is a full mortise spring hinge with an internal ratchet mechanism that closes the door without an overhead closer, so a plain ball bearing hinge is not a functional match - it will hold the door where you leave it. If the opening does not need self-closing and you only need a heavy duty 4-1/2 by 4-1/2 mortise hinge, the Don-Jo HWBB74545 and Don-Jo HWBB84545 are heavy weight full mortise ball bearing hinges in that size, and the Orca Hardware 3535 Series is a 4-1/2 by 4-1/2 square corner ball bearing commercial hinge. Use those only where a separate closing device is already handling the door.
6) I need to run power through the door for an electric strike or mag lock - is there a hinge that does that instead of the Stanley 2060R?
The Stanley 2060R is a mechanical spring hinge and carries no wiring; the description notes an electric switch option (CS) in the 4-1/2 inch size only, which is a switch rather than a power transfer. For running conductors into the door, the Command Access ETH-BB68 is a heavy duty 5 knuckle steel base energy transfer hinge, the Command Access ETH-CB70 is a 3 knuckle standard weight version, and the BEST CECB179-12C is a steel full mortise concealed bearing electrified hinge with a 12 wire quick connect. If you also want door position reporting, the Command Access ETM-BB68 adds an integrated door position switch and the ETM-CB70 is the 3 knuckle equivalent with door position sensing.
7) Can I use a residential hinge in place of the Stanley 2060R on an apartment unit entrance door?
No, not on a labeled opening. The Stanley 2060R is a commercial heavy duty spring hinge intended for labeled fire doors, stairwell doors, hotel guest room doors and apartment unit entrance doors, and it meets NFPA 80 for 3 hour fire doors, which stipulates a minimum of two spring hinges on labeled doors. Residential hinges such as the Emtek 91013 residential plain bearing pair, the Ives 1010RP plain bearing residential set of three, the Schlage Residential S3P1010 plain bearing mortise hinges, and the Delaney interior residential hinges are plain bearing, non-spring products for interior residential use. They neither self-close nor carry the fire door application the 2060R is built for.
8) Do I need a special pin or tool to adjust the closing speed on a Stanley spring hinge?
No loose pins to keep track of. The spring hinge uses an internal ratchet mechanism instead of a removable adjustment pin, and closing power adjusts up or down after the door is hung. That matters for a property manager tuning a hotel or apartment corridor door: if the leaf is not pulling the latch, you increase tension in place rather than pulling the hinge.
9) Do the Stanley spring hinges come with screws, or do I order those separately?
Screws are in the box. Each spring hinge is packed with both wood and machine screws, so it covers a wood door into a wood jamb and a metal door into a hollow metal frame without a separate fastener line on the order. No hinge pin is required either, since the spring assembly is self-contained.
10) Can I get a Stanley spring hinge with an electric switch for access control?
Only in the 4-1/2 inch size. Stanley furnishes the spring hinge with electric switches under the CS option, and that option is restricted to the 4-1/2 inch (114mm) hinge. Decorative tips and a special screw hole pattern are also available. If you need power transferred through the hinge rather than a switch, that is a different product type: an energy transfer hinge such as the Command Access ETH-BB68, a heavy duty 5 knuckle steel base hinge, or the ETM-BB68 which adds an integrated door position switch.
11) Is a spring hinge heavy duty enough for an apartment entrance door that gets slammed all day?
It's rated heavy duty and built on a steel base with ball bearings and a 5 knuckle barrel, which is the commercial construction you want on a high-traffic multi-family entry. Stanley lists apartment unit entrance doors and hotel guest room doors as intended applications. On a heavy or oversized leaf, remember NFPA 80 calls for at least two spring hinges on a labeled door, and adding a third hinge in the middle of the leaf spreads the load.
12) Is this hinge OK for a house, or is it strictly commercial?
It's a commercial-rated part, and on a residential interior door it is more hinge than the opening needs. For house work, a residential butt is the right call: Delaney's 3-1/2 x 3-1/2 bulk interior hinges come as a pair with a 5/8 inch radius, and Emtek's 91013 is a 3-1/2 x 3-1/2 square corner plated steel plain bearing pair. Where the spring hinge does earn its place in a residential building is a code-required self-closing door, such as an attached garage door or an apartment unit entry.
13) The Stanley 2060R has square corners but my existing frame mortise is radius cut - what hinge fits that prep?
The Stanley 2060R is a square corner hinge, and the description lists radius corners as an available option (RD). If you are matching an existing radius mortise with a non-spring hinge, the Orca Hardware 3514 Series is a 3-1/2 by 3-1/2 quarter inch radius corner plain bearing commercial hinge and the Orca Hardware 4014 Series is the 4 by 4 quarter inch radius version. On the residential side, the Delaney 4 by 4 exterior hinges and the Delaney 3-1/2 by 3-1/2 interior hinges use a 5/8 inch radius. Confirm the radius on the frame before ordering, since 1/4 inch and 5/8 inch preps are not interchangeable.
14) What should I use instead of the Stanley 2060R on a door that needs a non-removable pin for security?
The Stanley 2060R spring hinge requires no pins at all - the closing mechanism is an internal ratchet, so there is no adjustment pin to loosen or pull. If the security concern is an out-swinging door and you are specifying a conventional bearing hinge, the Hager BB1168 is a non-removable pin full mortise ball bearing heavy duty hinge and the Deltana CSB45N is a 4-1/2 by 4-1/2 square hinge pair with a non-removable pin. The Deltana DE44R5TA is a 4 by 4 security hinge with a 5/8 inch radius in steel. None of those self-close.
15) Is a concealed bearing hinge like the Ives 3CB1 a substitute for the Stanley 2060R?
They are different devices. The Stanley 2060R is a 5 knuckle ball bearing spring hinge that closes the door on its own, with closing power adjustable up or down. The Ives 3CB1 and 3CB1-B are 3 knuckle concealed bearing full mortise hinges rated medium duty, and the Ives 3CB1HW is the heavy duty concealed bearing version with 3 knuckles; the Hager 920 is a 2 knuckle full mortise concealed bearing hinge in medium duty. Concealed bearing hinges hide the bearing inside the knuckle for appearance and are free swinging - on an opening that must latch itself, they need a closer added.
16) The frame will not take a full mortise hinge - what are my options next to the Stanley 2060R?
The Stanley 2060R is a full mortise hinge, mortised into both the door edge and the frame rabbet. Where that prep is not available, the Hager 1129 is a half mortise plain bearing commercial hinge in 4-1/2 inch standard weight steel, and the Hager 990 STEEL is a full surface prison hinge, 3 inch by 4 inch with a welded tip, in heavy duty. For a door that has to swing both directions, the BEST DAP-3 is a heavy duty double acting pivot for commercial interior doors rather than a hinge at all.
17) What finishes does the Stanley 2060R spring hinge come in?
Two finishes: 626 satin chrome and 605 bright brass. Satin chrome is the usual choice when the rest of the openings are 626 lever and closer hardware, which is most commercial and multi-family work. Bright brass suits hotel and older apartment entries where the existing butts and trim are polished brass.
18) I need a 5 knuckle full mortise hinge but the opening is a light interior door - is there something lighter than the Stanley 2060R?
The Stanley 2060R is a heavy duty commercial spring hinge. For a light interior door that does not need to self-close, the McKinney MP79 MacPro is a 5 knuckle standard weight full mortise hinge and the McKinney MPB79 MacPro is a 5 knuckle standard weight hinge as well; the McKinney T2314 is a 5 knuckle standard weight hinge with a non-ferrous base rather than the ferrous steel base the 2060R uses. Note the 2060R is offered in a 3-1/2 inch size approved for doors up to 2 feet 8 inches by 7 feet, if the requirement is still self-closing on a small door.
19) I want a decorative hinge in 4-1/2 by 4-1/2 - how does that differ from the Stanley 2060R?
The Stanley 2060R is a 5 knuckle square corner spring hinge in satin chrome and bright brass, and the description notes it can be furnished with decorative tips. The McKinney SQ3331 is a square barrel 2 knuckle decorative hinge in 4-1/2 by 4-1/2, standard duty - a two knuckle square barrel look rather than a five knuckle butt, and without a closing spring. Choose by whether the opening has to close itself.
20) What is the difference between a plain bearing and a ball bearing hinge when replacing the Stanley 2060R?
The Stanley 2060R uses a ball bearing knuckle, which is what lets a heavy duty commercial door cycle repeatedly without the knuckle wearing. Plain bearing hinges such as the Orca Hardware 4040 Series 4 by 4 square corner commercial hinge, the Emtek 92013 heavy duty plain bearing pair, and the Hager 1129 use a bearing free knuckle. Emtek also offers the 94013 heavy duty ball bearing pair in 3-1/2 by 3-1/2 with square corners if you want ball bearing construction at that smaller size. For high traffic commercial openings, stay with ball bearing.
