3/4 INCH CONN,SQZ,AC/FLEX,DC,INSUL
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Type:
- Electrical fittings
- Selling Unit Of Measure:
- each
- Standards:
- UL E1383 ; CSA 12798
- Sub Brand Label:
- Steel City
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Conduit Bodies
- Product Type2:
- Squeeze Connectors
- Product Size:
- 3/4 Inch
- Product Material:
- Zinc Die Cast
Steel City XC 872 – Frequently Asked Questions
1) What cable does the Steel City XC 872 squeeze connector accept?

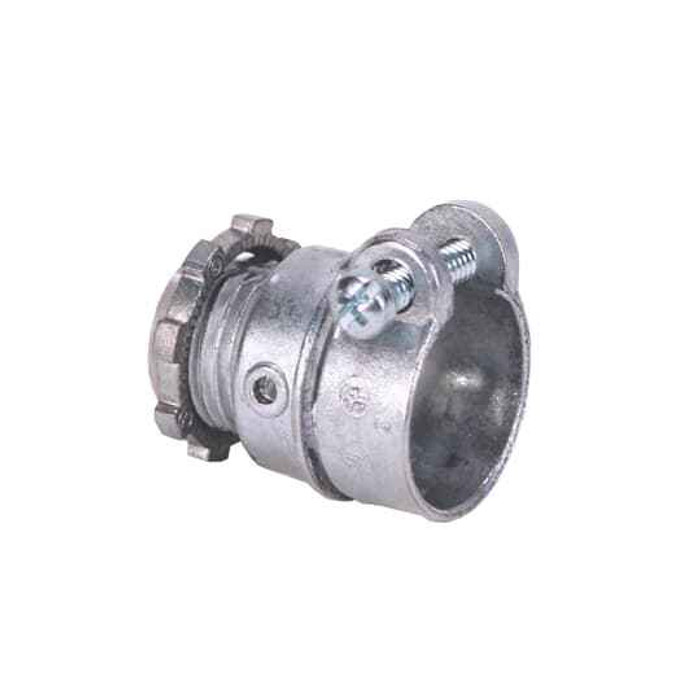

The XC 872 is a 3/4 inch squeeze-type connector for AC (armored cable), flexible metal conduit, and DC cable. The squeeze clamp tightens down over the cable armor, so it grips a range of cable within that 3/4 inch trade size rather than requiring one exact cable OD. The insulated throat protects conductors where they pass into the box.
2) Is the Steel City XC 872 connector UL listed?
Yes. It carries UL file E1383 and CSA 12798, so it satisfies inspectors looking for a listed AC/MC/flex connector on both sides of the border.
3) Do I need an anti-short bushing with this insulated connector?
The XC 872 has an insulated throat built in, which is what protects the conductors from the cut edge of the armor as they enter the enclosure. That is the reason to pick the insulated version over a plain squeeze connector. Follow the cable manufacturer's instructions for red-head bushings on the armor itself.
4) What is the Steel City XC 872 made of, and is it OK in a damp location?
Zinc die cast body. That is a standard indoor/dry-location material for squeeze connectors; it is not a raintight or liquidtight fitting, so for wet locations use a liquidtight connector with a sealing gland instead.
5) Can I use a squeeze connector instead of a snap-in or set-screw connector for MC cable?
A squeeze connector like the XC 872 clamps the armor with a saddle and screws, which gives a mechanical grip that holds across a wider range of cable diameters and is the usual choice where the cable takes strain. Snap-in connectors install faster but are sized tighter to one cable type. Set-screw connectors are intended for EMT, not armored cable. For 3/4 inch AC, MC-style DC cable, or flexible metal conduit, the squeeze type is the right family.
6) Are Steel City XC 872 connectors sold individually or by the box?
Sold each. Order the quantity you need for the job rather than by carton.
7) Where is the Steel City XC 872 manufactured?
Made in Mexico. Relevant if you are bidding work with domestic-content or country-of-origin reporting requirements.
