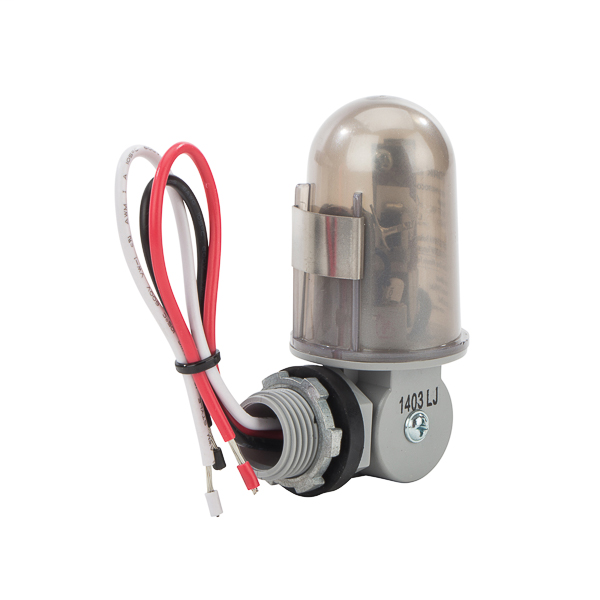

NSi Industries Stem & Swivel Lexan Photocontrol, 208-277V

NSi Industries Stem & Swivel Lexan Photocontrol, 208-277V

(No reviews yet) Write a Review

Model: 2002

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NSi Industries Stem & Swivel Lexan Photocontrol, 208-277V

The NSi Industries Stem & Swivel Lexan Photocontrol is a conduit-mount photocell sensor built for automatic dusk-to-dawn lighting control. Housed in a durable Lexan enclosure with a Cadmium Sulphide sensor cell, it operates on a 208-277VAC supply, turning connected loads on at 1-5fc and off at 3-15fc. Rated for 3470-4620W tungsten, 2080-2770VA ballast, and 1040-1385VA LED loads, this photocontrol is cULus Listed for dependable, code-compliant performance on flood lamps, patio lamps, and decorative lighting.

Key Features

  • Stem & Swivel Mount: 1/2" stem & swivel conduit mount with 6" leads for flexible aiming and simple installation.
  • Durable Construction: Lexan housing resists weather and UV exposure for long-term outdoor reliability.
  • Sensor Type: Cadmium Sulphide Cell provides accurate ambient light-level detection for automatic switching.
  • Sensitivity: Turns on at 1-5fc and off at 3-15fc, with a 2-minute timing range to reduce nuisance switching.
  • Load Ratings: Rated 3470-4620W Tungsten, 2080-2770VA Ballast, and 1040-1385VA LED loads on a 208-277VAC supply.
  • Low Power Consumption: Draws under 1 Watt in standby operation.
  • Wide Environmental Range: Operates from -40 to +140 F with a 50-60 Hz frequency rating for varied climates.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Mounting: 1/2" Stem & Swivel Conduit Mount
  • Supply Voltage: 208-277 VAC
  • Power Consumption: Under 1 Watt
  • Sensor Type: Cadmium Sulphide Cell
  • Timing Range: 2 Minutes
  • Sensitivity: Turn On 1-5fc, Turn Off 3-15fc
  • Standard: cULus
  • Type: Lexan Swivel Photocontrol
  • Operating Temperature: -40 to +140 F
  • Frequency Rating: 50-60 Hz
  • Enclosure: Lexan Housing

Typical Applications

  • Flood Lamp Lighting Control
  • Patio Lamp Lighting
  • Decorative Outdoor Lighting
  • Dusk-to-Dawn Automatic Switching
  • Commercial and Residential Exterior Lighting

Why NSi Industries?

NSi Industries builds its Stem & Swivel Photocontrol with a rugged Lexan housing, a proven Cadmium Sulphide sensor cell, and cULus Listing, giving electrical professionals a dependable, code-compliant solution for automatic outdoor lighting control across tungsten, ballast, and LED load types.

Manufacturer Resources

Spec Sheet

Product Specs

Mounting Method:
Conduit Mount
Environmental Conditions:
-40 to + 140 F
Product Voltage:
208-277 VAC
Product Wattage:
Under 1 Watt
Sensor Type:
Cadmium Sulphide Cell
Timing Range:
2 Minutes
Sensitivity:
Turn On Is 1 to 5fc - Turn Off is 3 to 15fc
Standards:
cULus
Product Type:
Photocontrol
Operating Temperature:
-40 to + 140 F
Frequency Rating:
50-60 Hz
Configuration:
Lexan Housing
Application:
Flood Lamp-Patio Lamp-Decorative Ligting
Product Material:
Lexan
Connection Type:
Stem & Swivel Mount
Listing:
cULus
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Lighting Controls & Sensors

NSi 2002 – Frequently Asked Questions

1) How much LED load can the NSi 2002 photocell switch?
On LED loads the 2002 is rated 1040-1385VA, scaling with the supply voltage across its 208-277VAC range. For comparison it handles 2080-2770VA of ballast load and 3470-4620W tungsten. LED and ballast loads are inrush-heavy, which is why the LED figure is well under the incandescent rating. Total up the driver VA on the circuit, not the lamp wattage, before you commit to it.
2) How does the NSi 2002 photocontrol mount, and do I need a junction box?
It mounts on 1/2 inch conduit with a stem and swivel fitting, so it threads onto a 1/2 inch nipple or conduit stub rather than sitting in a box. Six inch leads come out of it for wiring into the fixture or box behind. The swivel lets you aim the sensor cell away from the lamp it controls, which is the usual cause of a photocell cycling itself on and off all night.
3) Can this photocell be used outdoors in cold climates?
It is built for exterior service: Lexan housing that stands up to weather and UV, and an operating range of -40 to +140 F. That covers northern winters and hot roof-level installs on flood and patio lighting.
4) At what light level does the NSi 2002 turn lights on and off?
Turn-on happens at 1 to 5 footcandles as dusk falls, and turn-off at 3 to 15 footcandles at dawn. A 2 minute timing range keeps a passing car's headlights or a brief cloud from flipping the lights. Sensing is done by a Cadmium Sulphide cell.
5) Is this photocontrol UL listed for commercial jobs?
The NSi 2002 is cULus Listed, which covers both the US and Canadian listings inspectors look for on exterior lighting control.
6) Does the NSi 2002 photocell add measurable load to the circuit?
No meaningful load. It draws under 1 watt in standby, so a facility standardizing dozens of dusk-to-dawn fixtures isn't adding anything worth counting to the panel.
7) What part number do I order for the NSi 208-277V swivel photocontrol?
Order NSi Industries model 2002. It is the single configuration of the Lexan stem and swivel photocontrol at 208-277VAC, so there are no finish or sensitivity options to specify.
