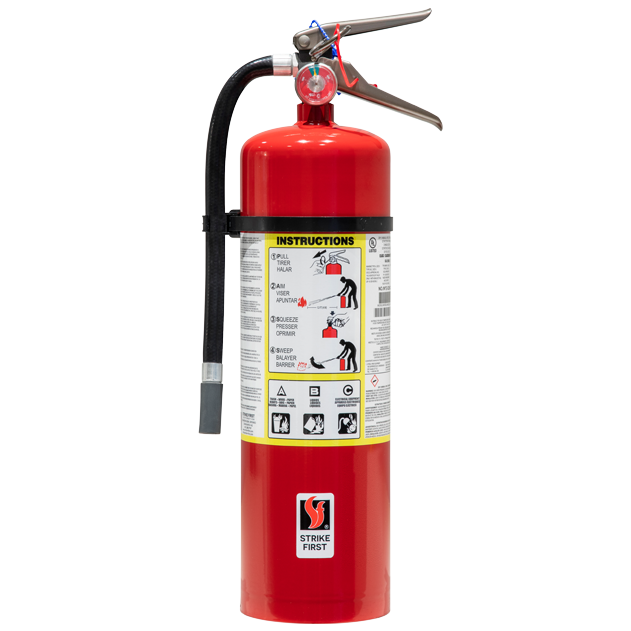

Strike First Corporation Multi Purpose Dry Chemical Portable Fire Extinguisher
The Multipurpose Dry Chemical Portable Fire Extinguisher is designed for Class A, B, and C fires. It features a modified universal valve body that accommodates both pin and fork wall hooks (wall hook included). The steel cylinder is coated with a super durable polyester powder paint finish for superior corrosion resistance.
This extinguisher includes a waterproof stainless steel gauge and a reinforced, full-grip hardcoat anodized aluminum handle for durability. The oversized pull pin with a retaining strap ensures quick and easy activation. Additionally, it has color and bar-coded labels for accurate servicing.
Features
- Modified universal valve body – Compatible with both pin and fork wall hooks
- Durable steel cylinder – Ensures long-lasting performance
- Super durable polyester powder paint finish – Superior corrosion resistance
- Waterproof stainless steel gauge – Provides reliable readings in any condition
- Reinforced anodized aluminum handle – Full grip for enhanced durability
- Oversized pull pin with retaining strap – Enables quick and easy activation
- Color and bar-coded labels – Ensure accurate servicing and identification
- Complies with NFPA 10 Standard – Meets fire safety regulations
- Meets D.O.T. Requirements – Approved for transportation use
- U.S.C.G. Approved – When used with the bracket listed on the label
- Wide Temperature Range – Functions from -65°F to 120°F (-54°C to 49°C)
Dimensions
Capacity | 2.5 lbs | 5 lbs | 5 lbs | 10 lbs | 20 lbs |
---|---|---|---|---|---|
Model No. | SF-ABC110ST | SF-ABC310 | SF-ABC340 | SF-ABC680 | SF-ABC1020 |
UL/ULC Rating | 1-A : 10-B : C | 3-A : 10-B : C | 3-A : 40-B : C | 6-A : 80-B : C | 10-A : 120-B : C |
U.S.C.G. Approval | Type B:C Size I | Type A Size II, Type B:C Size I | Type A Size II, Type B:C Size I | Type A Size II, Type B:C Size II | Type A Size II, Type B:C Size III |
Range | 8-10 ft (2.5-3 m) | 8-10 ft (2.5-3 m) | 8-10 ft (2.5-3 m) | 10-15 ft (3-4.5 m) | 10-15 ft (3-4.5 m) |
Discharge Time | 9 sec | 14.5 sec | 14.5 sec | 21 sec | 28 sec |
PSI | 150 | 195 | 195 | 235 | 235 |
Height | 15 1/4" (39 cm) | 15 1/4" (39 cm) | 16 7/8" (43 cm) | 21 1/4" (54 cm) | 24" (61 cm) |
Width | 3 3/4" (9.5 cm) | 6 3/4" (17 cm) | 6 3/4" (17 cm) | 8" (20.3 cm) | 9 1/2" (24 cm) |
Diameter | 3 1/8" (8 cm) | 4 1/4" (11 cm) | 4 1/4" (11 cm) | 5 1/8" (13 cm) | 7 1/8" (18 cm) |
Weight | 4 1/2 lb (2 kg) | 10 1/2 lb (4.8 kg) | 10 1/2 lb (4.8 kg) | 19 1/4 lb (8.8 kg) | 35 1/4 lb (16.1 kg) |
Chrome Option | YES | YES | YES | NO | NO |
Standard Bracket | Wall or Vehicle/Marine | Wall or Vehicle/Marine | Wall or Vehicle/Marine | Wall or Vehicle/Marine | Wall |
Optional Brackets | Wall, UP2, UP-DB | UB5, UB5-DB, UP5-MD, HDVB-1 | UB5, UB5-DB, UP5-MD, HDVB-1 | UP-10MD, HDVB-2 | HDVB-3 |
Manufacturer Resources
Product Specs
- Temperature Range:
- -65°F to 120°F (-54°C to 49°C)
- Approval Compliance:
- NFPA 10, DOT, U.S.C.G.
- Chrome Option:
- Available on 2.5 lbs and 5 lbs models
- Stainless Steel Gauge:
- Waterproof & Corrosion Resistant
- Oversized Pull Pin:
- Retaining Strap for Faster Activation
- Modified Universal Valve Body:
- Accepts both Pin or Fork Wall Hooks
- Color:
- Red
- Product Group:
- Fire Extinguisher
- Product Subgroup:
- Fire Extinguisher
- Product Type:
- Fire Extinguisher
