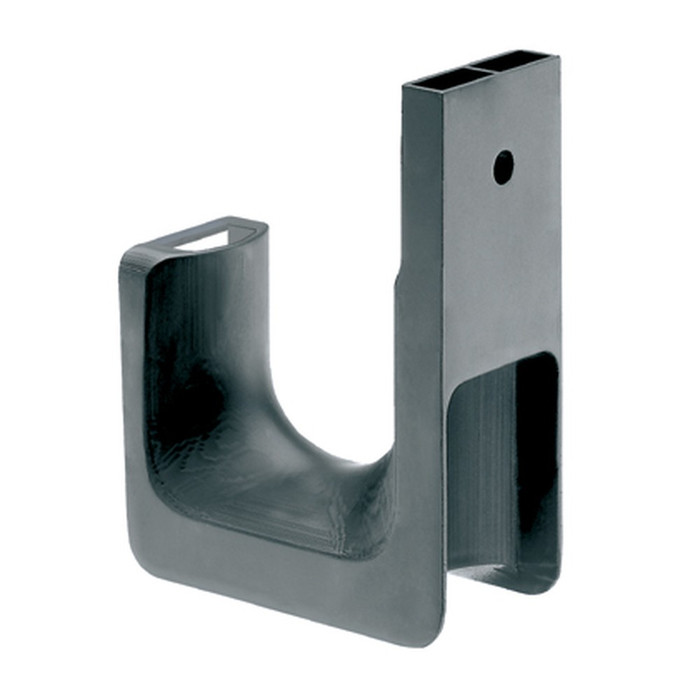

Panduit StrongHold™ JP131W-L20 J-Hook Cable Support, Nylon 6.6, Wall Mount, Black

The Panduit StrongHold™ JP131W-L20 is a J-Pro™ J-hook cable support with an integrated wall mount bracket, engineered with a patented design that delivers complete horizontal and vertical 1" bend radius control. Molded from durable Nylon 6.6 in black, this J-hook prevents pinch points and degradation of cable performance while supporting a 1.31" (33.3mm) maximum bundle capacity. It is UL listed and suitable for use in air handling spaces, making it well suited for routing high-performance communication cabling in commercial ceilings and structured cabling environments.

Key Features

  • Bundle Capacity: 1.31" (33.3mm) max. bundle capacity, listed as 1-5/16" maximum J-hook bundle capacity for organized cable runs.
  • Durable Construction: Molded from Nylon 6.6 for long-term strength and resistance to degradation in demanding installation environments.
  • Patented Bend Radius Control: Complete horizontal and vertical 1" bend radius control prevents pinch points that can degrade cable performance.
  • Wall Mount Design: Integrated wall mount bracket requires a 1/4" (M6) mounting hole for a user-supplied screw, simplifying installation.
  • Cable Capacity: Supports 29 Category 5e, 25 Category 6, and 15 Category 6A cables per hook for structured cabling applications.
  • Static Load Capacity: Rated to support 11.3 kg (25 lb) of static load.
  • Air Handling Space Rated: Suitable for use in air handling spaces per UL listing requirements.
  • Finish/Color: Black Nylon 6.6 construction, packaged 50 pieces per package (PK50).

Certifications & Compliance

  • UL Listed, cULus Listed
  • RoHS Compliant
  • Suitable for Use in Air Handling Spaces

Technical Specifications

  • REACH Status: N
  • California Pro65 Cancer: No
  • Category 6 Cable Capacity: 25
  • Category 5e Cable Capacity: 29
  • Category 6A Cable Capacity: 15
  • Static Load Capacity (lb): 25
  • Overall Height (mm): 84.6
  • Std Package Length In: 11
  • Std. Pkg. Qty.: 50
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • ARRA Compliant: Y

Typical Applications

  • Routing High-Performance Communication Cabling in Air Handling Spaces
  • Structured Cabling and Data Center Wiring
  • Wall-Mounted Cable Management in Commercial Buildings
  • Telecom and IT Room Cable Support
  • Ceiling and Above-Ceiling Cable Routing

Why Panduit?

Panduit's StrongHold J-Pro J-hook system combines a patented bend radius design with durable Nylon 6.6 construction to protect cable performance while simplifying wall-mounted installations. Backed by UL and cULus listings and rated for use in air handling spaces, the JP131W-L20 delivers the reliable, code-compliant cable support that structured cabling professionals depend on.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.3338
Standard Package Weight Pounds:
2.8000
REACH Status:
N
Std. Pkg. UOM:
Piece
Overall Width (mm):
59.9
California Pro65 Cancer:
No
Category 6 Cable Capacity:
25
Std Package Length In:
11
Overall Length (mm):
59.9
Category 5e Cable Capacity:
29
Country of Origin:
United States
Standard Carton Volume Ft3:
0.0000
Std Package Length MM:
279.4
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
StrongHold™
Std Ctn Qty:
0
Maximum J-Hook Bundle Capacity (In.):
1-5/16
Mount Method:
Wall Mount
Product Segment:
IEI
Static Load Capacity (kg):
11.3
Product Type:
Cable Support
Std Package Width MM:
232.41
Pallet Quantity:
5,600
Std Package Height In:
7.15
Standard Carton Weight Pounds:
0.0000
Overall Height (In.):
3.33
Std Package Height MM:
181.61
Min Order Qty:
100.0000
RoHS Compliant:
RoHS directive is not applicable
Category 6A Cable Capacity:
15
GTIN Package:
00074983440382
ARRA Compliant:
Y
Min. Order UOM:
Piece
Std. Pkg. Qty.:
50
Support Type:
J-PRO J-Hook System
Overall Length (In.):
2.36
UOM EA PK:
PK
Pallet Volume:
0.000000
Std Package Width In:
9.15
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Pallet Weight:
313.6000
Overall Width (In.):
2.36
Overall Height (mm):
84.6
Static Load Capacity (lb):
25
Product Material:
Nylon 6.6
Product Color:
Black
Product Size:
31"
Department:
Electrical
Product Group:
Wiring Devices

Panduit JP131W-L20 – Frequently Asked Questions

1) What size hole do I need to drill, and does the JP131W-L20 come with a screw?
The integrated wall mount bracket takes a 1/4 inch (M6) mounting hole and the fastener is user supplied. No screw, anchor, or threaded rod hardware is in the pack, so specify the anchor for your substrate (drywall, block, stud, or strut) separately when you order.
2) Can these J-hooks be installed in a plenum or return air ceiling?
Yes. The JP131W-L20 is UL Listed and cULus Listed and is suitable for use in air handling spaces, which is what an inspector looks for on cable support above a return air ceiling. The hook itself is Nylon 6.6 in black.
3) Will a J-hook protect the bend radius on Cat6A, or do I need a wider cradle?
The J-Pro hook is built with a patented profile giving full horizontal and vertical 1 inch bend radius control, so the cable is supported through the turn instead of kinking over a sharp edge. That is the reason to use a molded J-hook here rather than a wire loop or a tie wrap, which create pinch points that degrade high-performance cable.
4) How much clearance does the Panduit JP131W-L20 need off the wall?
Overall it measures 3.33 inches high (84.6 mm) by 2.36 inches long and 2.36 inches wide (59.9 mm each), so plan roughly two and a half inches of projection off the mounting surface plus room for the bundle sitting in the cradle.
5) Are Panduit JP131W-L20 J-hooks sold individually or by the box?
They come 50 pieces to a package, and the minimum order is 100 pieces, so the smallest buy is two packs. Worth knowing if you are pricing a small MDF or a single riser closet.
6) Do these J-hooks meet Buy American requirements on a federally funded job?
The JP131W-L20 is flagged ARRA compliant and its country of origin is the United States, which is what a government or education procurement officer needs on the submittal. It is also free of lead and mercury content and carries no California Prop 65 cancer warning.
7) Should I use a wall-mount J-hook or a beam clamp version for above-ceiling cable runs?
Pick by what you are attaching to. The JP131W-L20 is the wall mount configuration, with the bracket molded onto the hook for a screw into a flat surface such as a wall, stud face, or underside of deck. If you are hanging off threaded rod, structural beam flange, or existing conduit, that calls for a different attachment style in the J-Pro line rather than this one.
8) What is the actual Panduit part number to order for this black wall-mount J-hook?
Order Panduit JP131W-L20, part of the StrongHold J-Pro J-hook system. It is the 1-5/16 inch bundle capacity size in black Nylon 6.6 with the wall mount bracket.
9) How much space and weight does a case of these take for shipping to a jobsite?
A standard 50-piece package runs 11 x 9.15 x 7.15 inches, about 0.33 cubic feet, and weighs 2.8 pounds. A full pallet is 5,600 pieces at 313.6 pounds, which is the number to give receiving on a large structured cabling rollout.
