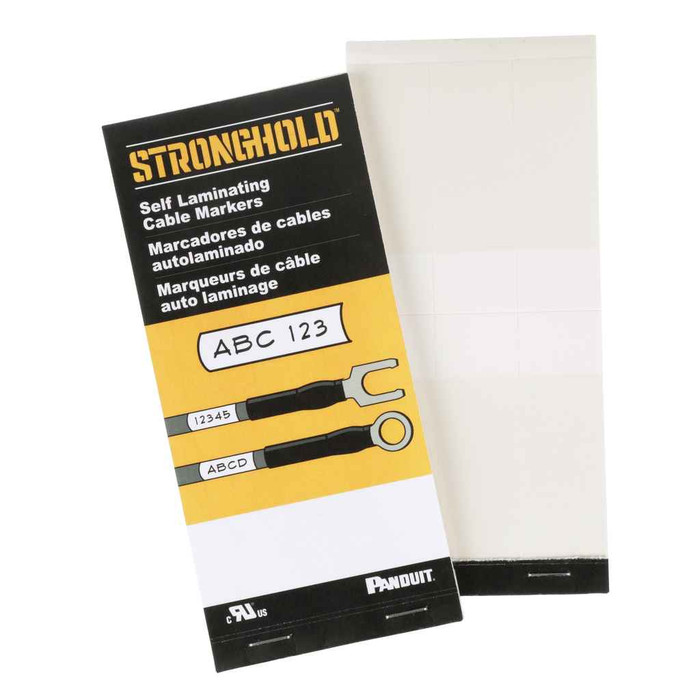

Panduit PSCB-5Y StrongHold, PSCB-5Y Blank Self-Laminating Write-On Marker Book, 5Y, Vinyl, PK1

Panduit PSCB-5Y StrongHold Self-Laminating Vinyl Wire Marker Book, 5" x 1"

(No reviews yet) Write a Review

Model: PSCB-5Y

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.61
$40.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit PSCB-5Y StrongHold Self-Laminating Vinyl Wire Marker Book, 5" x 1"

The Panduit PSCB-5Y StrongHold wire marker book delivers professional cable identification with self-laminating vinyl construction for lasting durability. Each 5" x 1" write-on marker fits cable diameters from 0.32" to 1.27" and performs across an extended -40°F to 150°F range. Each book contains 30 markers with a white background and black legend for clear labeling.

Key Features

  • Marker Dimensions: 5" x 1" write-on markers provide ample space for detailed identification in a compact profile for tight installations.
  • Self-Laminating Vinyl Construction: Protects against moisture, chemicals, and abrasion for long-lasting identification in harsh environments.
  • Wide Cable Diameter Range: Accommodates cables from 0.32" to 1.27" in diameter, from small control wires to larger power cables.
  • Extended Temperature Range: Rated from -40°F to 150°F, maintaining adhesion and legibility across extreme conditions.
  • 30 Markers Per Book: Sufficient quantity for medium-scale labeling projects while staying organized.
  • Write-On Legend Format: White background with black legend allows custom labeling with standard writing instruments.
  • RoHS Compliant Materials: Meets environmental standards for commercial and industrial facilities.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Arra Compliant: Y
  • Hazardous Material Flag: N
  • Marker Length In : 5
  • Marker Length Mm : 127
  • Marker Width In : 1
  • Maximum Operating Temperature C : 66
  • Maximum Operating Temperature F : 150
  • Mercury Content Indicator: N
  • Min Order Qty: 1
  • Minimum Cable Diameter Mm : 8.1
  • Minimum Operating Temperature C : -40
  • Minimum Operating Temperature F : -40
  • Number Of Markers: 30
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Reach Status: N
  • Standard Carton Weight Pounds: 1.1
  • Std Carton Height In: 4.8
  • Std Carton Width In: 6.5
  • Std Ctn Qty: 10
  • Std Package Height In: 0.4
  • Std Package Length In: 6.9
  • Std Package Width In: 4.1
  • Std Pkg Qty : 1
  • Write On Area Height In : 1

Typical Applications

  • Industrial Control Panels and Electrical Enclosures
  • Commercial Building Electrical Systems
  • Data Center Cable Management
  • Manufacturing Facility Wiring
  • Telecommunications Infrastructure
  • Power Distribution Systems

Why Panduit?

Panduit StrongHold wire markers deliver proven reliability with RoHS compliant vinyl materials and U.S. manufacturing quality, built for lasting, legible cable identification in demanding environments.

Manufacturer Resources

Product Specs

Arra Compliant:
Y
Background Color:
White
Country Of Origin:
United States
Ean:
74983434268
Gtin Carton:
5.0075E+13
Gtin Package:
74983434268
Hazardous Material Flag:
N
Legend:
Write-On
Legend Color:
Black
Marker Length In :
5
Marker Length Mm :
127
Marker Width In :
1
Marker Width Mm :
25.4
Material Properties:
Self-Laminating
Maximum Cable Diameter In :
1.27
Maximum Cable Diameter Mm :
32.2
Maximum Operating Temperature C :
66
Maximum Operating Temperature F :
150
Mercury Content Indicator:
N
Min Order Qty:
1
Minimum Cable Diameter In :
0.32
Minimum Cable Diameter Mm :
8.1
Minimum Operating Temperature C :
-40
Minimum Operating Temperature F :
-40
Number Of Markers:
30
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Material:
Vinyl
Product Segment:
IEI
Product Type:
Wire Marker
Reach Status:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.1329
Standard Carton Weight Pounds:
1.1
Standard Package Volume Ft3:
0.0133
Standard Package Weight Pounds:
0.11
Std Carton Height In:
4.8
Std Carton Height Mm:
121.92
Std Carton Length In:
10.3
Std Carton Length Mm:
261.62
Std Carton Width In:
6.5
Std Carton Width Mm:
165.1
Std Ctn Qty:
10
Std Package Height In:
0.4
Std Package Height Mm:
10.16
Std Package Length In:
6.9
Std Package Length Mm:
175.26
Std Package Width In:
4.1
Std Package Width Mm:
104.14
Std Pkg Qty :
1
Std Pkg Uom:
Book
Write On Area Height In :
1
Write On Area Height Mm :
25.4
Department:
Electrical
Product Group:
Wiring Devices

Panduit PSCB-5Y – Frequently Asked Questions

1) What cable diameters will the Panduit PSCB-5Y self-laminating wire markers wrap?
The PSCB-5Y markers wrap cable from 0.32 in (8.1 mm) up to 1.27 in (32.2 mm) outside diameter. That covers everything from small control and instrumentation wire through larger power cable in a panel. Below 0.32 in the wrap has too little cable to grip; above 1.27 in the 5 in marker length will not complete the clear laminating overlap.
2) Will these Panduit wire markers hold up in an unconditioned outdoor or mechanical space?
Rated -40 to 150 degrees F (-40 to 66 degrees C), so rooftop gear, unheated warehouses, and hot equipment rooms are within range. The self-laminating vinyl wraps the legend under a clear tail, which is what keeps the writing from smearing off under moisture and handling. It is a vinyl marker, not a high-temp label, so anything running above 150 degrees F at the cable surface is outside its range.
3) Do these Panduit markers meet Buy American and RoHS requirements for a government or institutional job?
The PSCB-5Y is ARRA compliant, RoHS compliant, and made in the United States. It carries no mercury content and is not flagged as hazardous material, which keeps it simple for federally funded and institutional specs.
4) How much writing space is on a Panduit PSCB-5Y marker?
Each marker is 5 x 1 in (127 x 25.4 mm) overall, and the write-on area is 1 in (25.4 mm) high. The rest of the 5 in length is the clear tail that wraps over your writing and laminates it. So plan your circuit ID, panel number, or termination point to fit a 1 in tall printed band, not the full 5 in.
5) Are the Panduit PSCB-5Y markers preprinted or do I write on them myself?
They are blank write-on markers, white background with black legend intended to be hand-written with a standard marker pen. That suits as-built and field-added circuits where you do not know the ID until the cable is pulled. If you need preprinted numbers or legends for a repeatable panel build, a write-on book is the wrong choice.
6) How many markers come in a Panduit PSCB-5Y book, and how do they ship for a larger job?
One book holds 30 markers, and the book is the standard selling unit with a minimum order of one. Standard carton quantity is 10 books, so 300 markers per carton if you are stocking a truck or a shop crib.
7) Why use a self-laminating wrap marker instead of a plain adhesive wire label?
On the PSCB-5Y, only the 1 in tall white area carries your writing; the remaining length of the 5 in vinyl strip is clear and wraps back over it. That clear overlap takes the abrasion, moisture, and cleaning chemicals instead of the ink, so the ID survives pulls through conduit and years in a panel. A plain adhesive label leaves the printed face exposed. The tradeoff is you need enough cable circumference for the wrap, which is why 0.32 in is the minimum diameter.
8) How much room does a Panduit PSCB-5Y marker book take up in a tool bag?
The packaged book runs 6.9 x 4.1 x 0.4 in and weighs about 0.11 lb, so it lies flat in a pouch or a panel drawer. A full carton of 10 books weighs 1.1 lb.
